Test and Port Status Notifications

AirCheck G3 shows notifications from the NetAlly testing apps and unit ports in the top Status Bar and Notification Panel. Swipe down on the Status Bar to view the notifications.

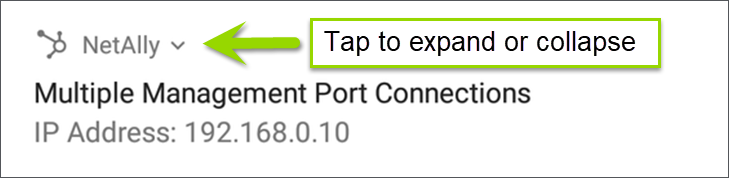

On each notification, you can tap the title and down arrow to expand the box and view more details or options.

Various AirCheck G3 icons appear in your Status Bar, as listed in the following sections.

NOTE: Read Test and Management Ports for descriptions of the port functions. See General Settings for settings that control port functions.

Test Port Notifications

Active network connections on the test ports are established using the AutoTest app.

or The Wi-Fi Test Port status displays with the wireless channel number under a Wi-Fi or Link icon. Channels in the 6 GHz band display with an E by the Wi-Fi or Link icon.

When the AirCheck G3 unit is dwelling on a Wi-Fi channel (in this case channel 64), the channel number is static. When the AirCheck G3 is scanning for discovery, Wi-Fi analysis, or air quality measurements, the channel number changes dynamically to show which channel is currently being scanned.

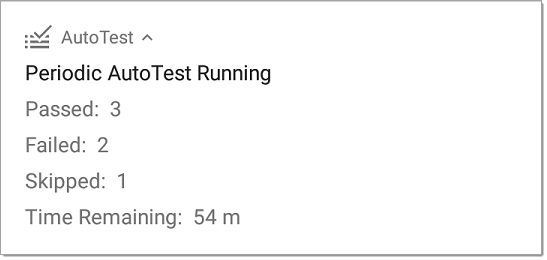

Periodic AutoTest is running or has completed. When Periodic AutoTest is running, the Wi-Fi Test Port may not be available to other testing apps.

Management Port Notifications

You can establish a Management Port connection using the device's system Wi-Fi radio or an optional USB-to-Wi-Fi adapter.

The alternative Wired Management Port connection can be established through the optional USB-to-Ethernet interface. Its details are displayed under the system Management Port notifications. See USB Wired Management Port for more information.

A Wi-Fi Management Port connection can be established via the main system Wi-Fi adapter. Its details are displayed under the Management Port notifications.

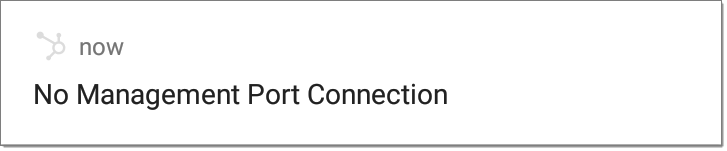

If your Management connection is lost, the following notification displays.

Discovery Notifications

The Discovery notifications show the progress of the discovery process. See the Discovery app chapter for more information.

The active discovery process is running and has progressed to the specified percentage.

No links are currently available for active discovery, either because none of the ports enabled for discovery are connected or AutoTest is running. Discovery is temporarily disabled when AutoTest is running.

VNC/Link-Live Remote

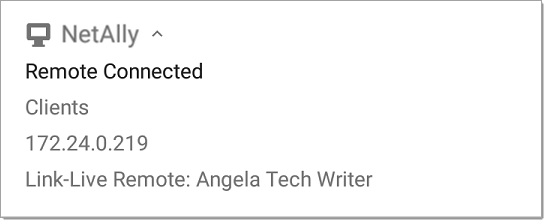

A remote VNC connection is active through a standalone VNC client and/or the Remote function in Link-Live Cloud Service.
