EZ Wired App

The EZ Wired application provides a streamlined workflow for testing a wired network connection. When you tap START, the tester performs the standard AutoTest Wired Profile steps in the background, while EZ Wired shows the results in a simplified summary view.

EZ Wired consolidates key connectivity details such as link speed, duplex, and port information. Additional data (for example, PoE when PoE testing is enabled, or SFP details for fiber connections) is shown automatically based on the active interface.

Viewing EZ Wired Results

Touch START to initiate a test.

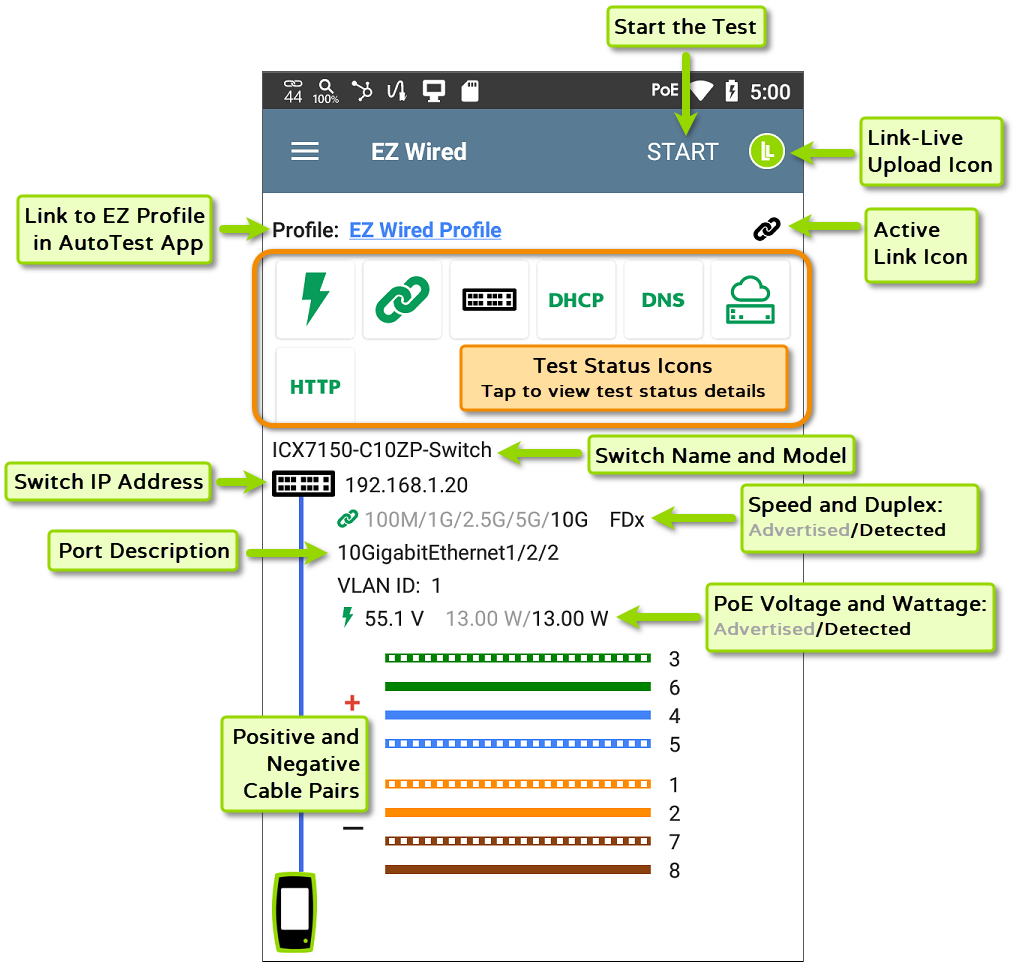

The example below shows a copper connection test with active link established. The blue line between the switch icon and the tester icon indicates a copper connection.

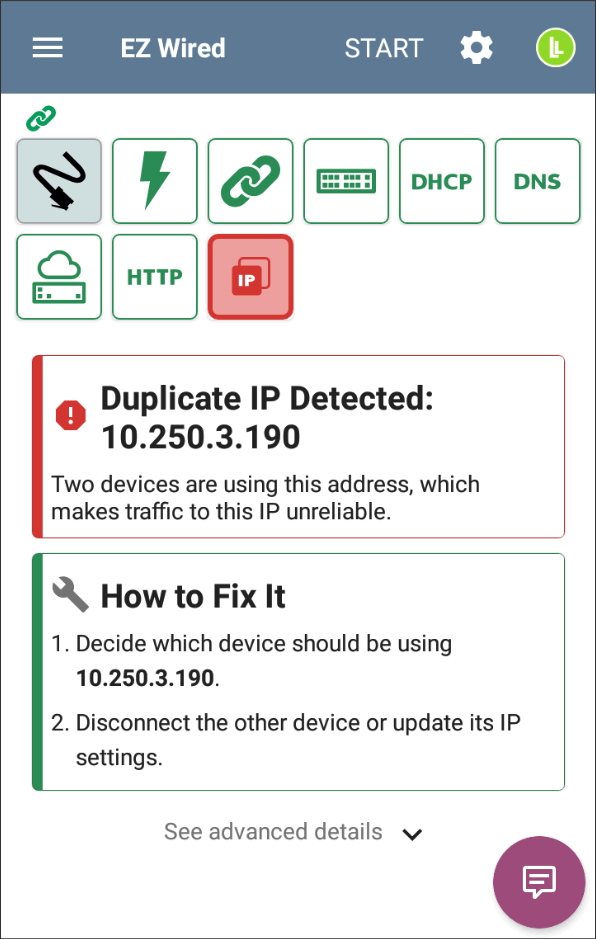

As the test runs, each step appears as a status icon:

Green — Successful result

Yellow — Warning condition

Red — Failure detected

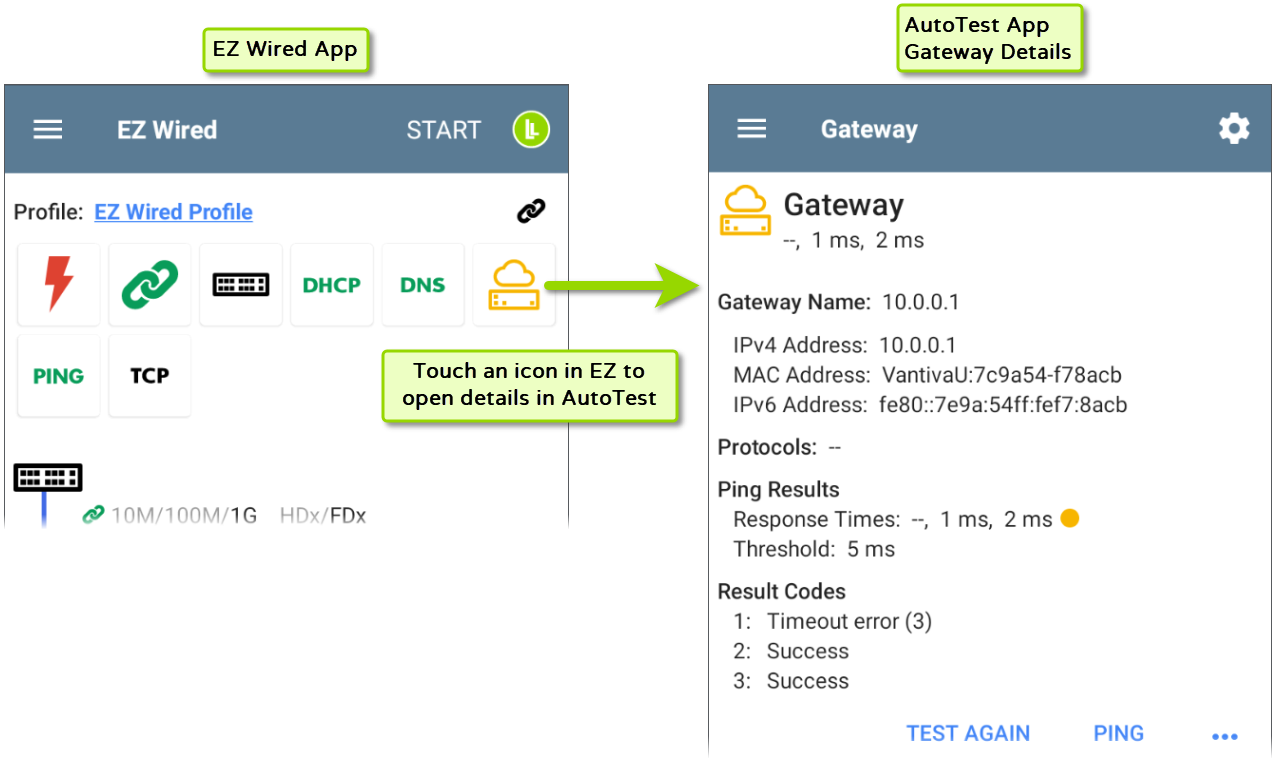

Tap any status icon to view the detailed results screen for that test component in the AutoTest app: PoE, Link, Nearest Switch, DHCP, DNS, Gateway, and test targets.

Viewing Fiber Results

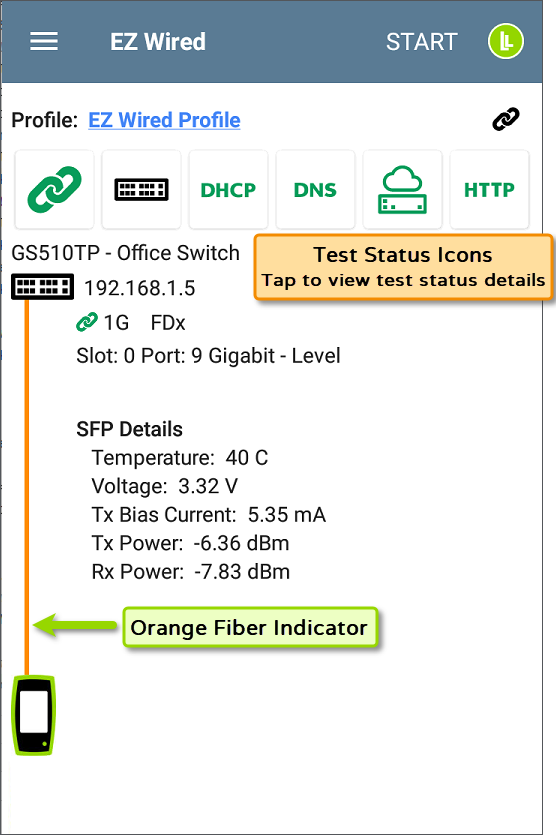

When testing a fiber/SFP connection, the line between the switch icon and test unit displays orange and SFP details are listed.

Temperature: Temperature in degrees Celsius

Voltage: SFP transceiver power supply voltage (~3.3 V)

Tx Bias Current: Transmitter bias current

Tx Power: Transmitter power

Rx Power: Link receiver power

Configuring EZ Wired Profile Settings

EZ Wired uses the current EZ Wired Profile configuration, including Wired Connection settings and test targets.

Select the underlined EZ Wired Profile link at the top of the EZ screen to go to the main EZ Profile results screen in the AutoTest app. From there, you can open and adjust the settings for the profile. Any added test targets will appear as new icons in the EZ Wired summary.

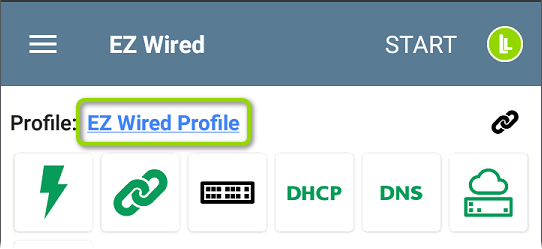

Touch the EZ Wired Profile link on the EZ Wired screen.

NOTE:If the profile has been previously renamed, the custom name will display here instead of "EZ Wired Profile."

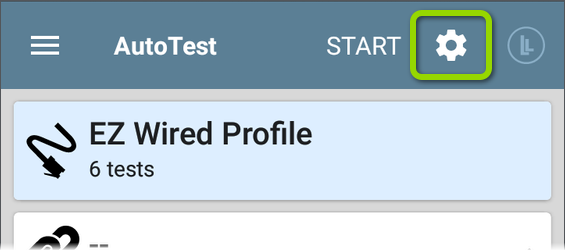

On the AutoTest results screen for the EZ Wired Profile, tap the settings gear icon to open the settings screen.

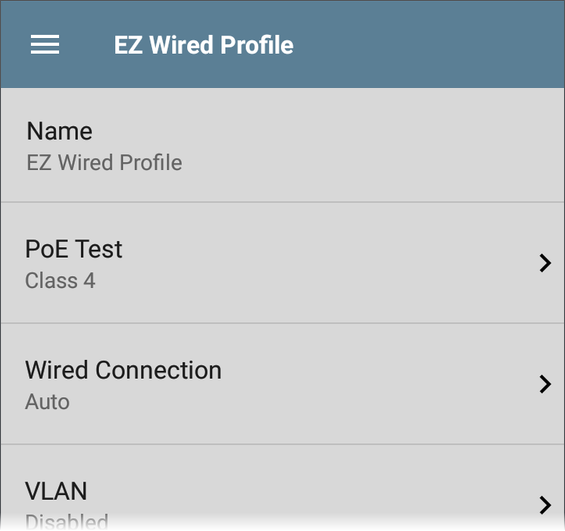

On the EZ Wired Profile settings screen, configure as needed.

The settings you configure on the EZ Wired Profile settings screen (above) will be used to run this profile from either AutoTest or EZ Wired.

For information on Wired Profile settings, see Wired AutoTest Profiles

EZ Wired Profile Name

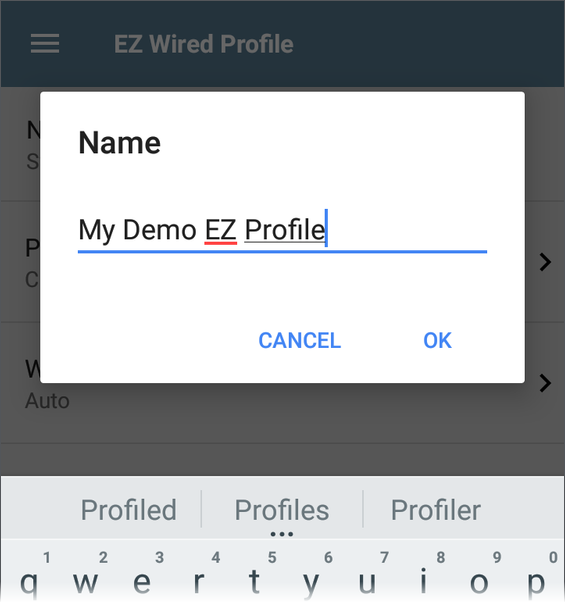

You may give the EZ Wired Profile a custom name. The same profile will continue to be the designated EZ profile, regardless of the name.

Viewing and Managing All Profiles

To view and manage all of your AutoTest profiles, navigate to the AutoTest Settings screen from the navigation drawer in the AutoTest app.

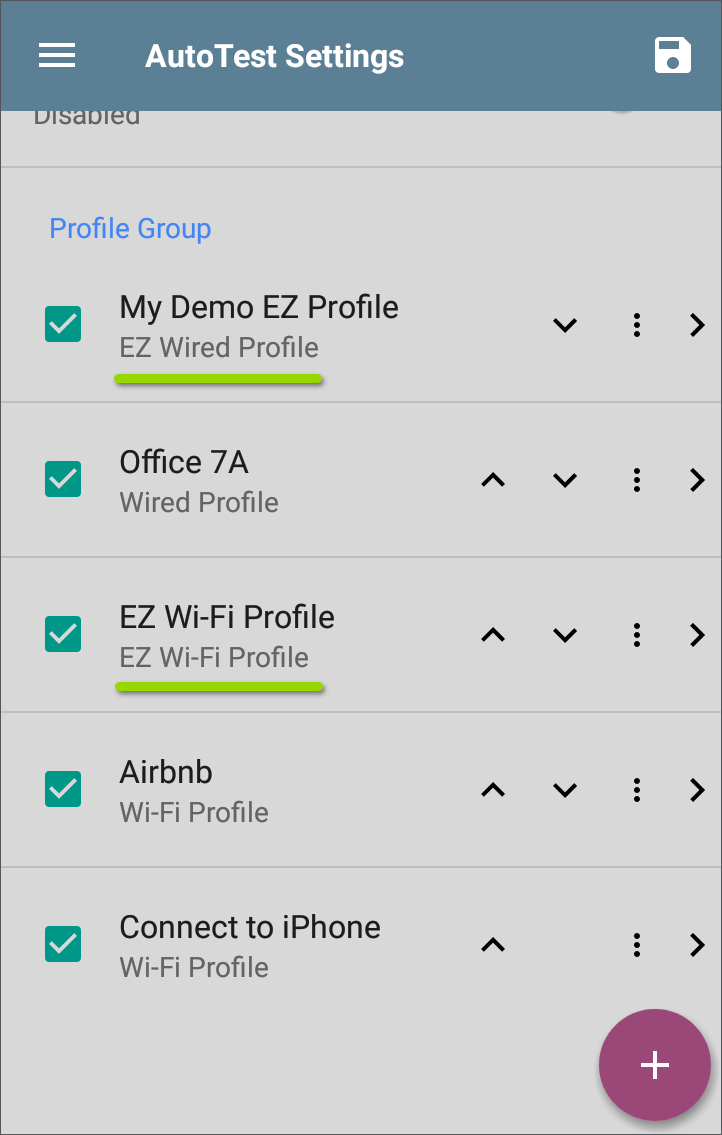

The AutoTest Settings screen indicates which profile(s) are the EZ profiles.

NOTE: If you have a wired-only tester (LinkRunner), you will only see Wired Profiles here.

Touch any of the profile names to open and customize their individual settings. See Managing AutoTest Profiles and Profile Groups for the full topic on this screen and its functionality.

You cannot select a different profile to use as the EZ profile, but you can copy all settings from a different profile into the EZ profile.

Copying Profile Settings to the EZ Profile

To copy the configuration from a different wired profile to the EZ profile, go to the main AutoTest Settings screen from the navigation drawer in the AutoTest app.

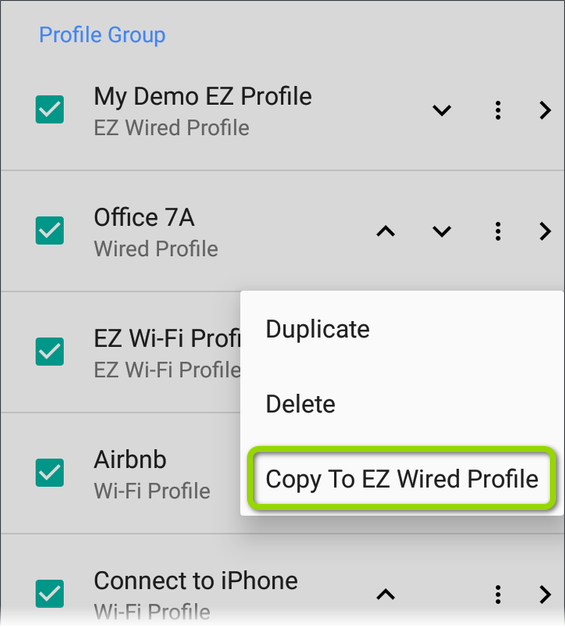

On the AutoTest Settings screen, tap the overflow icon for the profile you want copied, and select Copy to EZ Wired Profile.

All configuration settings will be applied to the EZ Wired Profile.
