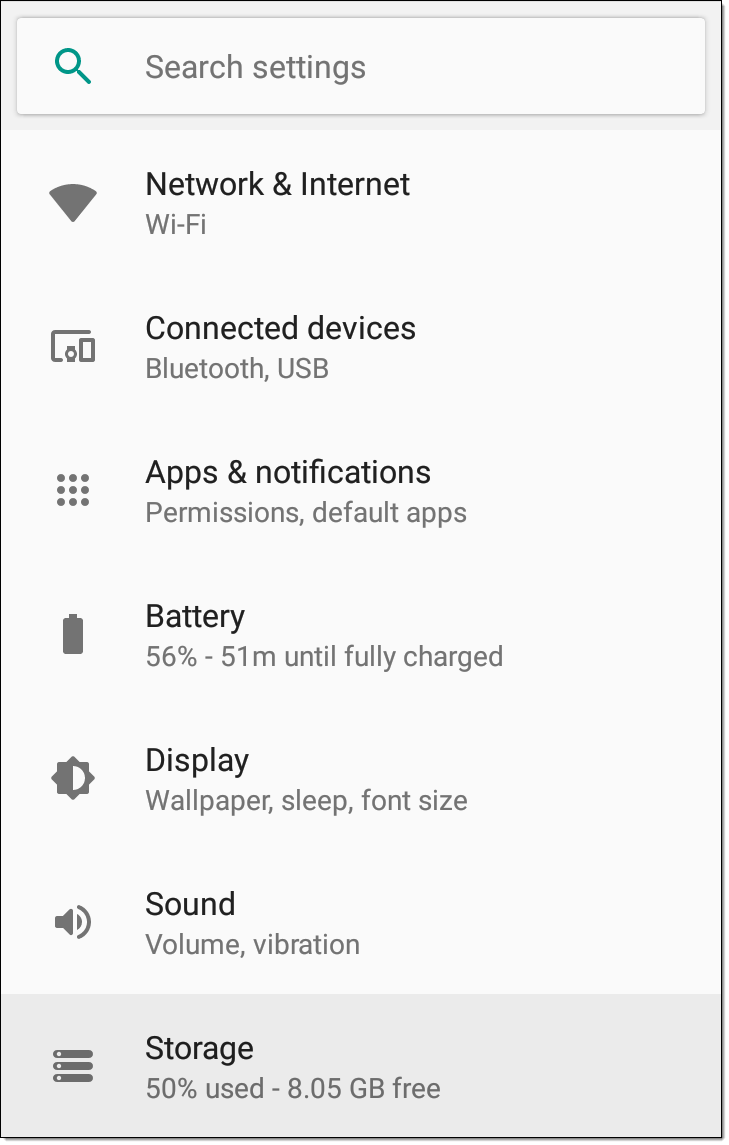

Device Settings

To access the system device settings, tap the Settings icon at the bottom of the Home screen.

The device settings screen lets you adjust the display; adjust sound (including volume for external Bluetooth or USB speakers or headsets); set date and time; view installed applications and memory devices; connect to Wi-Fi; or reset to factory defaults.

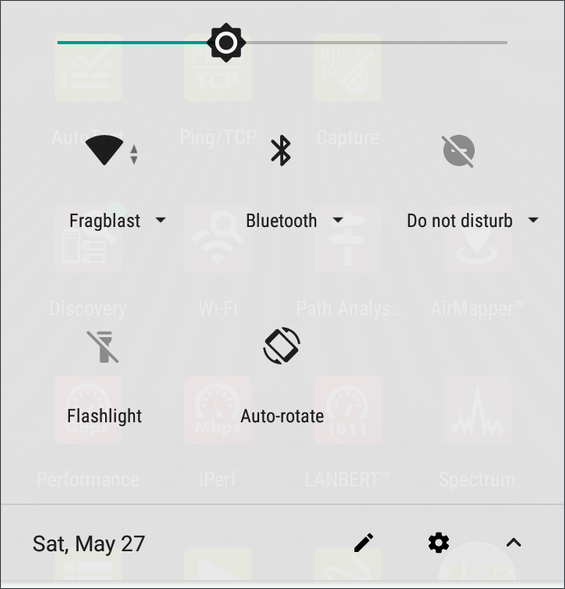

Quick Settings Panel

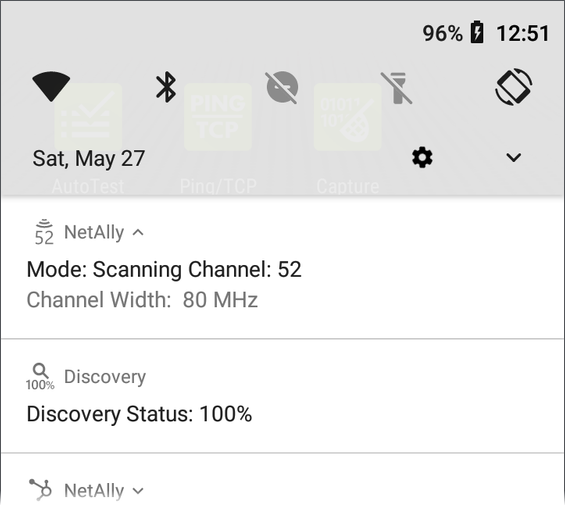

You can also access some of the most common device settings, like Wi-Fi, from the Quick Settings Panel by swiping down from the Status Bar at the top of the touchscreen.

Swipe down twice to open the full Quick Settings Panel.

  • Touch and drag the slider control at the top of the panel to adjust the screen's brightness.

  • Tap an icon in the panel to enable or disable the corresponding feature. For example, you can turn the unit's Wi-Fi functions on or off from the quick settings.

  • Touch and hold an icon to open the relevant device setting screen, if there is one. For example, touch and hold the Auto-Rotate icon to open Display settings.

  • Tap the pencil icon at the bottom of the Quick Settings Panel to configure the icon controls that appear in the panel.

Auto Power Off

Activating the Auto Power Off function helps to extend the battery run time.

  1. From the Device Settings , select Display.

  2. On the Display settings screen, tap Device auto power off.

  3. In the pop-up dialog box, select how long you want the unit to remain On with no activity occurring. The unit automatically powers off after the selected period of inactivity has passed.

Similarly, you can adjust the setting that controls when the display goes into Sleep mode from the Display settings screen.

Language

Your device supports Chinese, English, German, Japanese, and Korean language displays. See Changing the Device Language for information on changing the device interface language. The user guide is available in Chinese and English.
