Common Icons

The icons below appear in multiple NetAlly test and system apps.

	Menu Icon - opens the left navigation drawer or other menus
	Refresh Icon - restarts testing and measuring on the current screen
	Settings Icon - opens configuration options for the current app
	Save Icon - saves settings or files or loads saved configurations
	Floating Action Button (FAB) - opens the Floating Action Menu, which contains additional actions
	Action Overflow Icon - contains additional actions
	Directional Arrows (or Carets) - indicate the ability to "drill in," open a screen, or expand a panel for more detailed information, or to change the order of a list

For explanations of the EtherScope icons that appear in the Status Bar at the top of the screen, see Test and Port Status Notifications.

Floating Action Button (FAB) and Menu

Many system applications, including NetAlly's AutoTest and Discovery apps, feature a Floating Action Button or "FAB" that opens a floating action menu with more options for analysis.

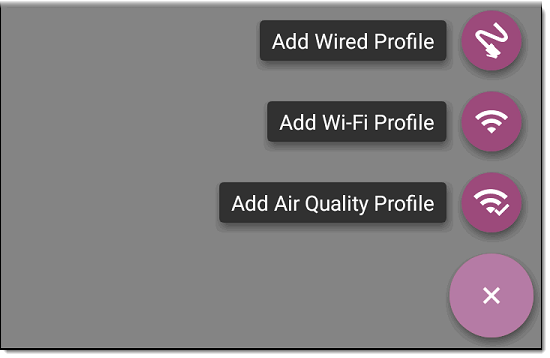

The FAB on the main AutoTest app screen allows you to add new testing Profiles.

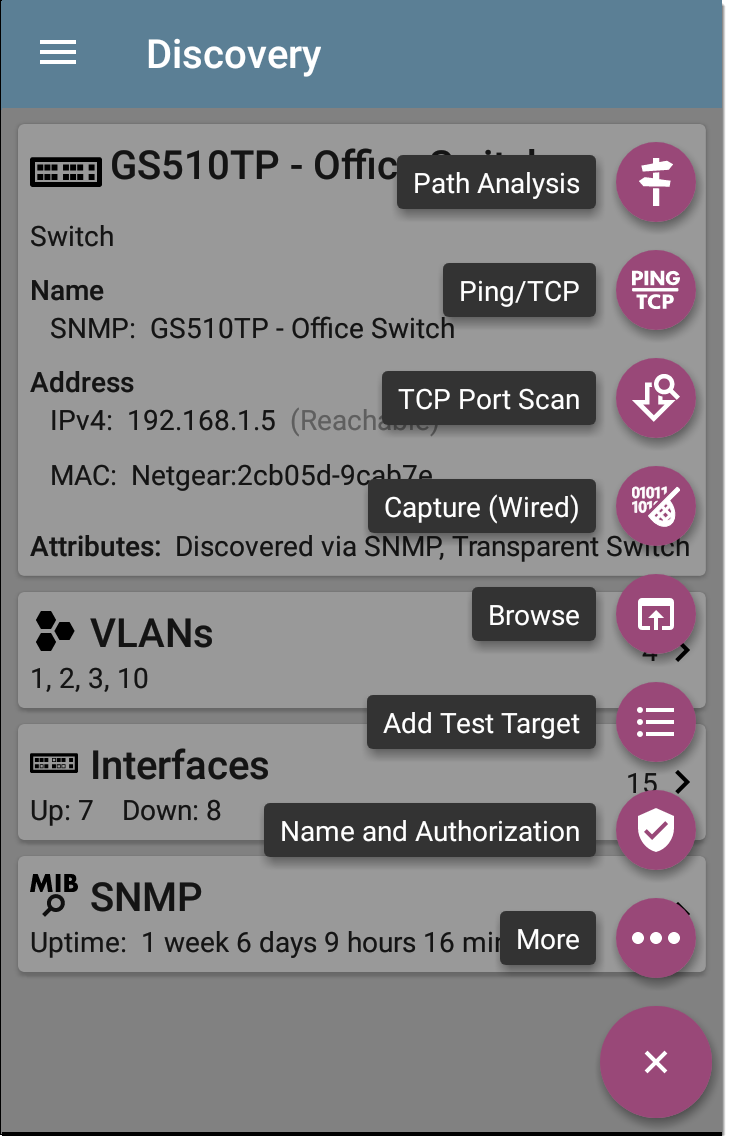

The FAB on the Discovery app's Details screen opens other apps for further testing of the selected device.

See the chapter for each app for descriptions of the FABs specific to that app. For example, see Discovery App Floating Action Menu describes the Discovery FAB in more detail.
