Running Path Analysis

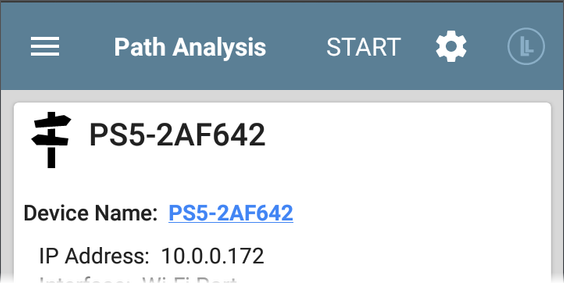

Tap the START button at the top of the app screen to begin a Path Analysis.
NOTE: LinkRunner AT must be linked on the Interface (Port) selected in the app's settings. See Test and Management Ports for help.
In this Topic
Path Analysis Results and Source LinkRunner AT Cards
Uploading Results to Link-Live

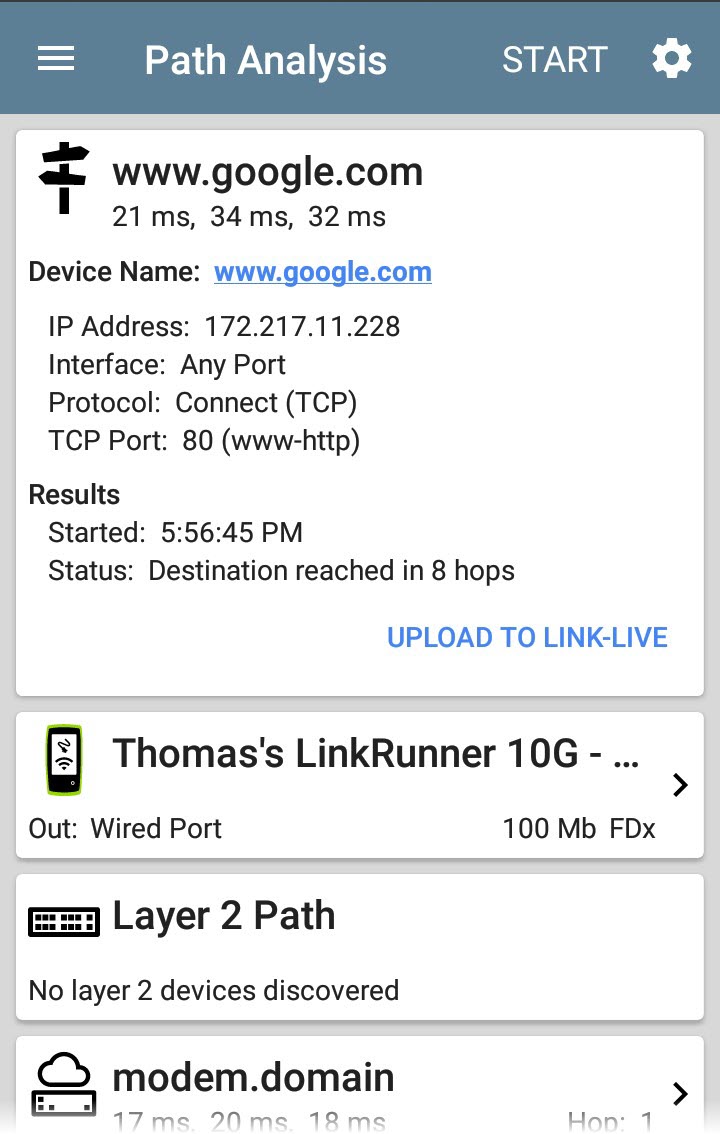

Like AutoTest, Path Analysis results are presented on cards. The top card shows the main test details, the second card shows information for the source device (your LinkRunner AT), and the following cards show the Layer 2 and Layer 3 Hops in the path, which are sequentially ordered.
Tap any blue linked name or address in the Path Analysis results screens to open the Discovery app and further examine the linked element.
Path Analysis Results and Source LinkRunner AT Cards

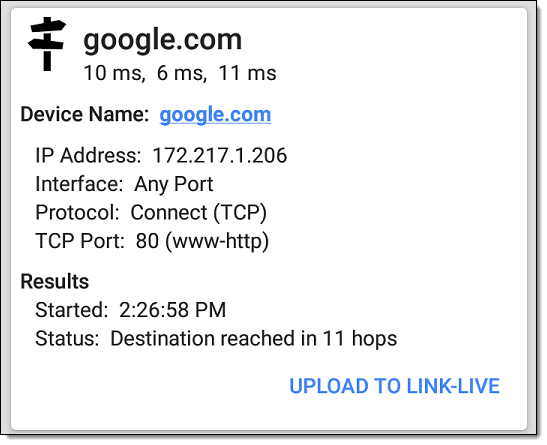

The top Path Analysis results card shows the path's Destination address at the top, followed by the three response times from the TCP Connect, Ping, or Echo tests.
Device Name: Resolved DNS name or IP address of the destination entered in the settings
Results
UPLOAD TO LINK-LIVE: Tap this link to upload your results to a Link-Live account. See Uploading Results to Link-Live later in this topic.
Source LinkRunner AT Card

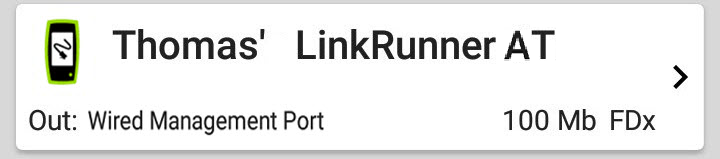

This LinkRunner AT card displays the port from which the Path Analysis ran.
NOTE: This card and screen only display a custom name for your LinkRunner AT if you have claimed it to Link-Live.
Tap the card to view more details.
Layer 3 Hops

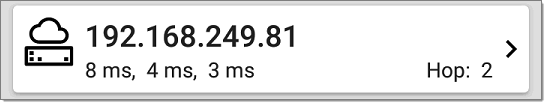

Each Layer 3 Hop card displays the device type icon, DNS name (if discovered), and IP address.
Beneath the name (or IP), the response times for each Connect (TCP), Ping (ICMP), or Echo (UDP/7) display in milliseconds. On the right side is the router Hop number of this device in the path.
Tap the card to view the hop Details screen.
No Reply
Sometimes Path Analysis displays Hop cards with "No Reply" (as shown below). This result means that the device in that portion of the path did not send an ICMP TTL timeout response.
Split Route
Path Analyses may obtain a "Split Route" result (as shown above), meaning that two or three different routers within same hop responded to the three requests.
Tap a Split Route card to view the DNS names and IP addresses of the responding routers.
Layer 3 Interfaces and Statistics
Statistics for Interfaces on Layer 3 devices may be identified and measured if the LinkRunner AT has SNMP access.

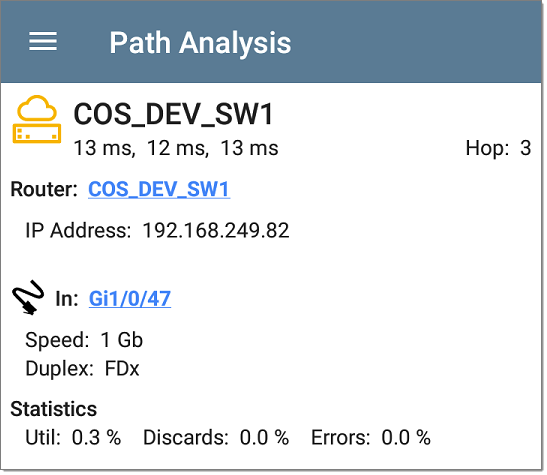

Tap a Hop card to see a summary of Interface Details and Statistics, if they are available.
See also Layer 2 Switch Interfaces and Statistics below.
Network Problems in Path Analysis
The Hop cards can also show detected Problems based on the Problem Settings in the Discovery app and display the device type icons in the corresponding colors.
The yellow switch icon in the image above indicates a Warning status.
Tapping the blue linked switch name opens a Discovery Details screen for the switch, where the user can investigate the cause of the Warning.
Layer 2 Devices
Layer 2 devices can be switches or APs.
Layer 2 Switches
The image below displays an example of a Path Analysis to a device on the local broadcast domain with two switches in the Layer 2 portion of the path.
The LinkRunner AT is able to identify these Layer 2 switches and their interfaces because it has configured SNMP access to the switches.
The switch cards display the In and Out Interface IDs, VLAN ID, and the link speed and duplex (if detected) of the interfaces.
Tapping a Layer 2 card opens a Details screen for the device.
A Layer 2 Details screen displays the device name and IP address at the top.
NOTE: The yellow switch icon in the image above indicates a Warning status. See Network Problems in Path Analysis later in this topic.
Layer 2 Switch Interfaces and Statistics
Layer 2 Switch Details screens in Path Analysis display a summary of the Interface Statistics (described below). To view all available information for these interfaces, tap their blue links to open a Interface Details screen in the Discovery app.
Statistics for Interfaces on Layer 2 switches may be identified and measured if the LinkRunner AT has SNMP access.
In/Out: Indicates the interface type and name. The interface name often contains the physical port number where the switch is connected to the network.

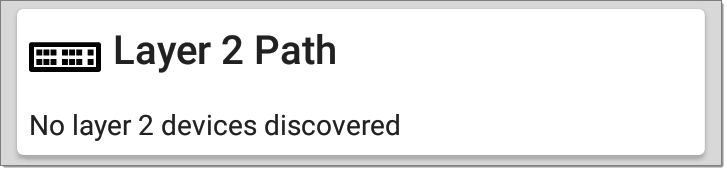

No layer 2 devices discovered
In some cases, the LinkRunner AT does not discover Layer 2 devices between Layer 3 devices. There may not be any Layer 2 devices, or LinkRunner AT might not have SNMP access to those switches.
The Layer 2 card may also display a result of "No switches found," which indicates that Discovery has not found any switches with SNMP access to determine if the switches are in the path. If this is an unexpected result, check and verify your SNMP Configuration and Extended Ranges in the Discovery app settings.
Uploading Results to Link-Live
Tapping the UPLOAD TO LINK-LIVE link on the top card opens the Link-Live sharing screen for path analysis results:
Path Analysis results are uploaded to the Analysis page
on Link-Live.
