Device Types
The Discovery app lists and analyzes the types of devices explained in this section. Different data may be available to the LR 10G depending on the device type, how it was discovered, and your configured settings.
In this Topic
See Discovery Settings for SNMP Configuration and Devices Discovered Through Other Devices options.
For descriptions of the different Details cards and screens, see Discovery Details.
The images in the rest of this section show examples of data that Discovery may display for each device type.
Routers

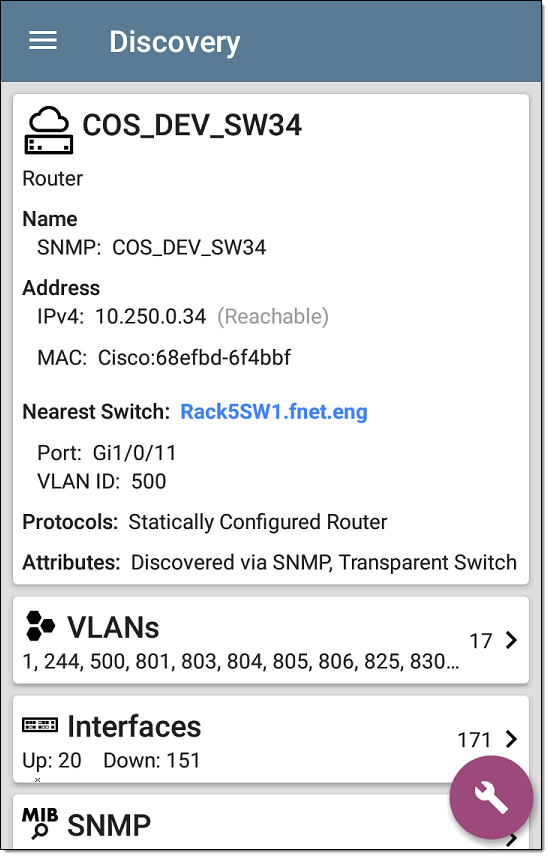

LR 10G discovers IP routers by monitoring traffic and querying hosts.
Switches

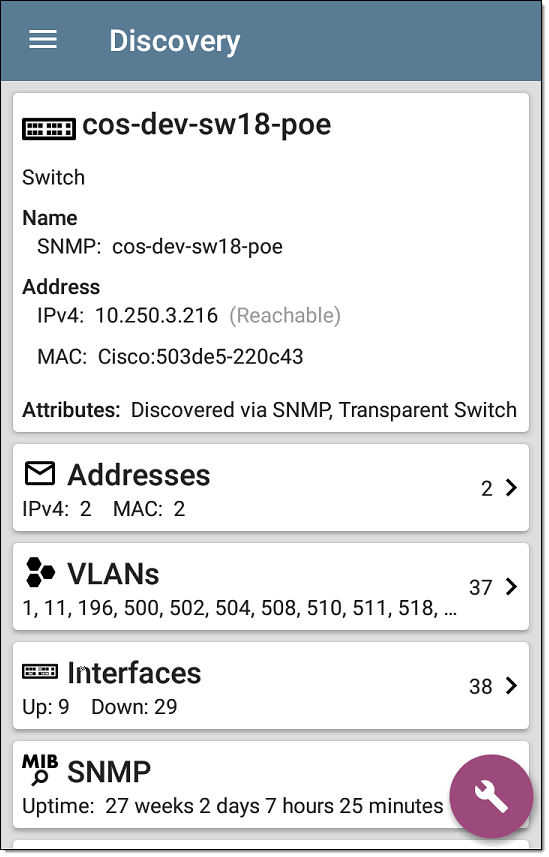

Switches are also discovered by monitoring traffic and querying hosts.
Unknown Switches
Unknown switches are detected indirectly by analyzing traffic going through surrounding switches. The LR 10G cannot identify the switch, but it can sense where a switch is active on the network via the device MAC addresses in that space.
The LR 10G numbers the switches as they are discovered. (These numbers may change each time the discovery process runs.)

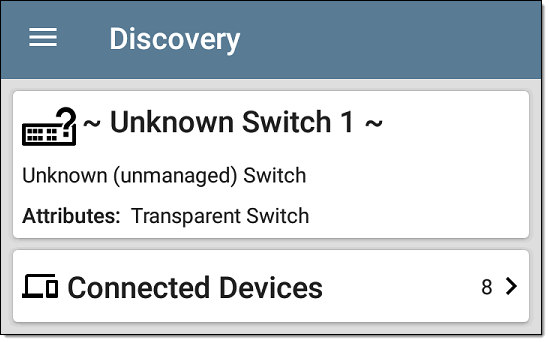

The Unknown Switches Details screen shows the number of devices connected to the switch. Tap the Connected Devices card to view the connected devices, which may provide clues about the location of the unknown switch.
Network Servers

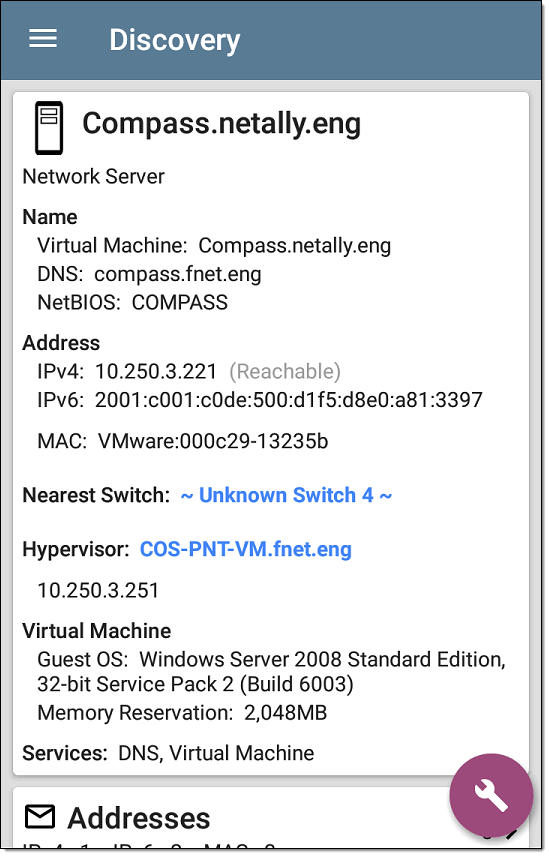

Network servers include NetBIOS, DHCP, and DNS servers.
Hypervisors

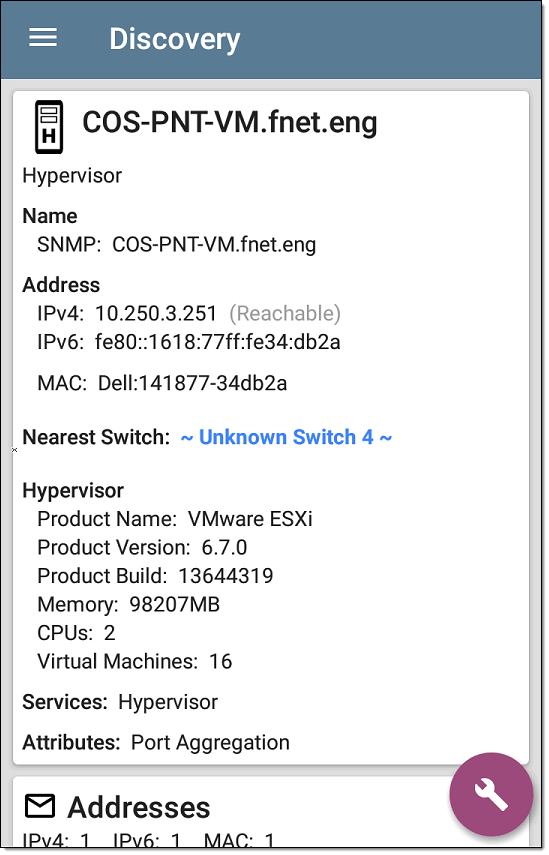

VMware hypervisors are discovered via SNMP. The hypervisor's SNMP agent must be enabled for the LR 10G to discover it and classify it as a hypervisor.
Virtual Machines

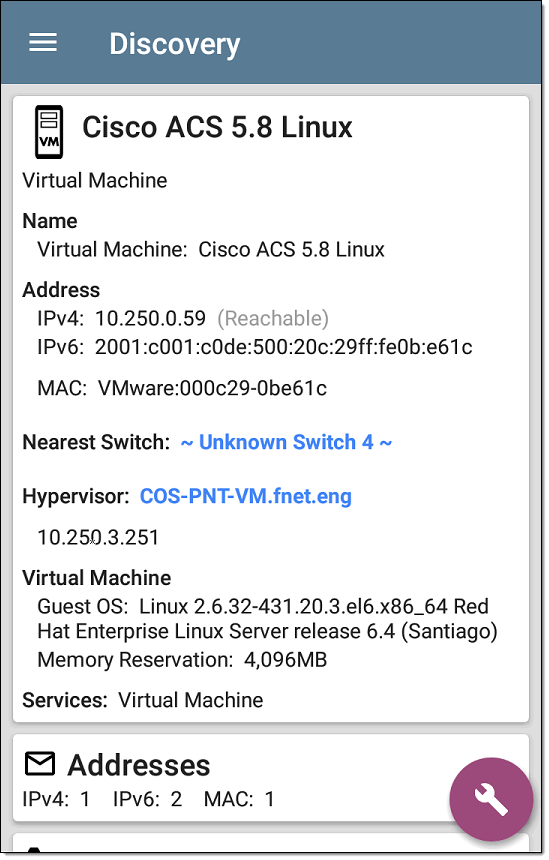

VMware virtual machines are discovered from VMware client table in SNMP-enabled VMware hypervisors. Devices are also classified as Virtual Machines if they have a VMware MAC.
Wi-Fi Clients

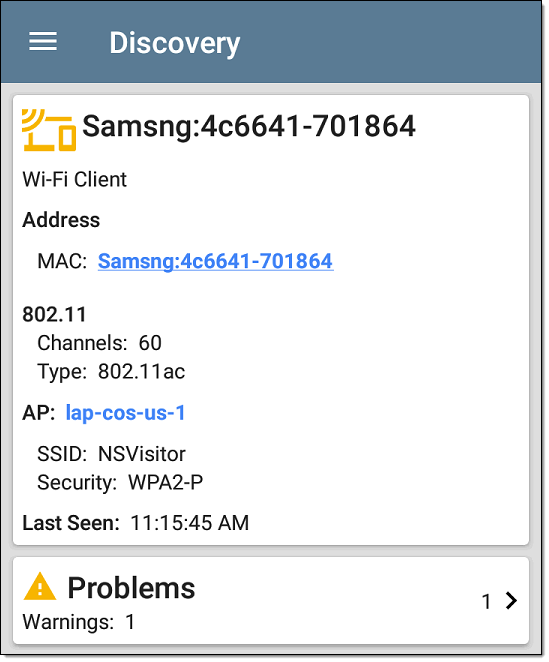

Wireless clients are discovered through SNMP queries with a linked connection through a management or test port.
VoIP Phones

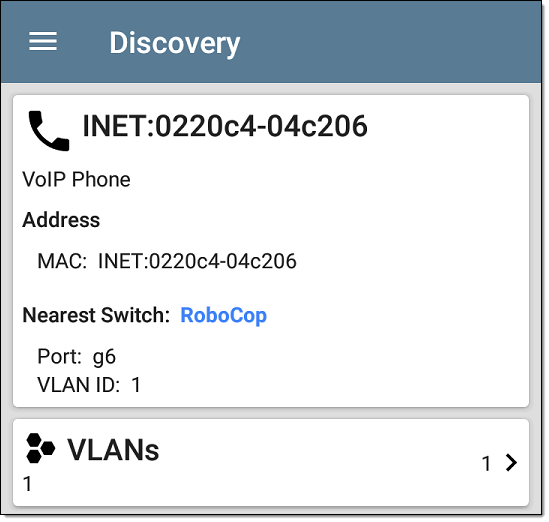

VoIP discovery provides visibility into the VoIP and layer 2/3 configuration of the network.
Printers

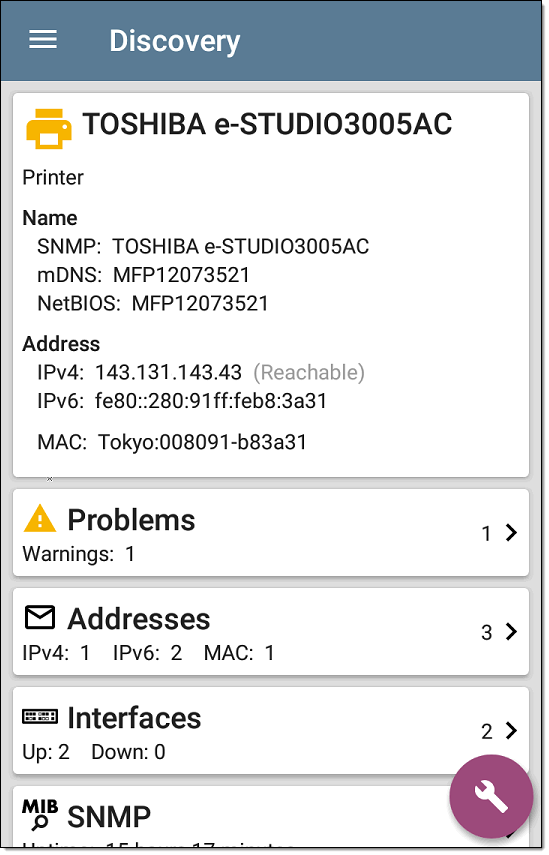

The LR 10G identifies IP printers via the SNMP Printer MIB and IPX printers via diagnostic requests and queries.
SNMP Agents

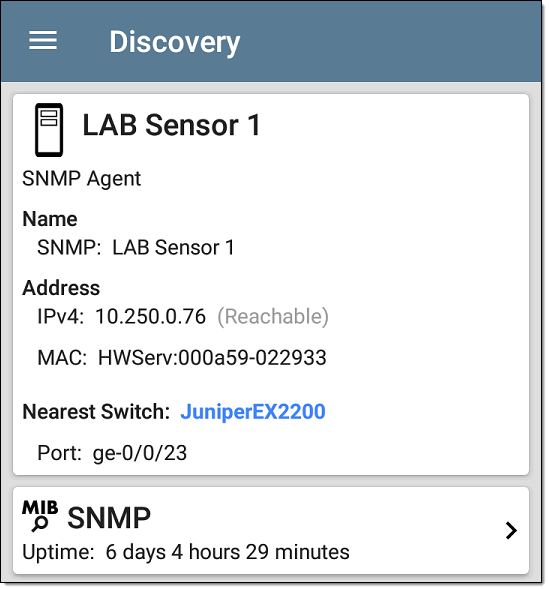

SNMP agents are discovered using SNMP queries. See SNMP Configuration.
See also SNMP Details.
Network Tools

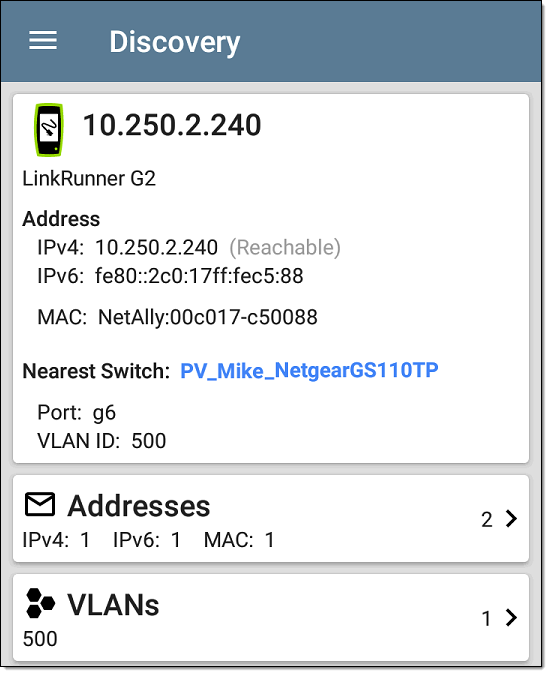

The LR 10G can also identify other NetAlly network testers, such as other EtherScope nXGs, AirChecks, CyberScopes, LinkRunners, and Test Accessories.

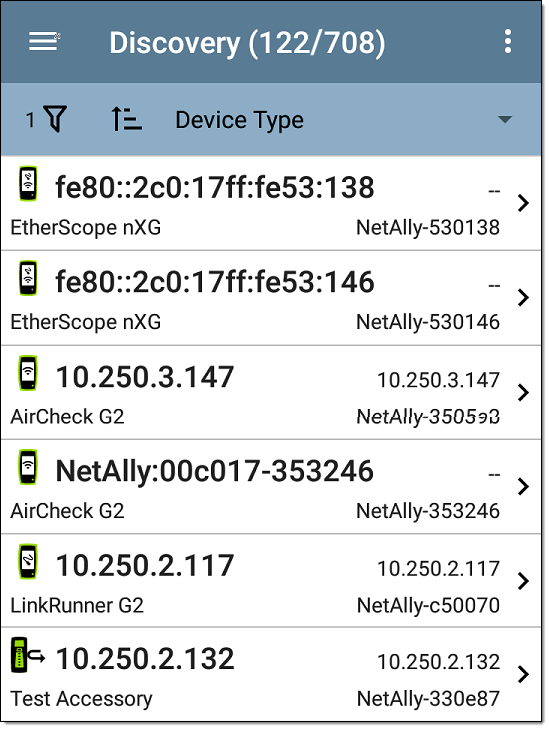

The image above shows several NetAlly tools as they appear in the main Discovery list.
LR 10G displays all the information it can gather about each tool on the Details screen.
Hosts/Clients

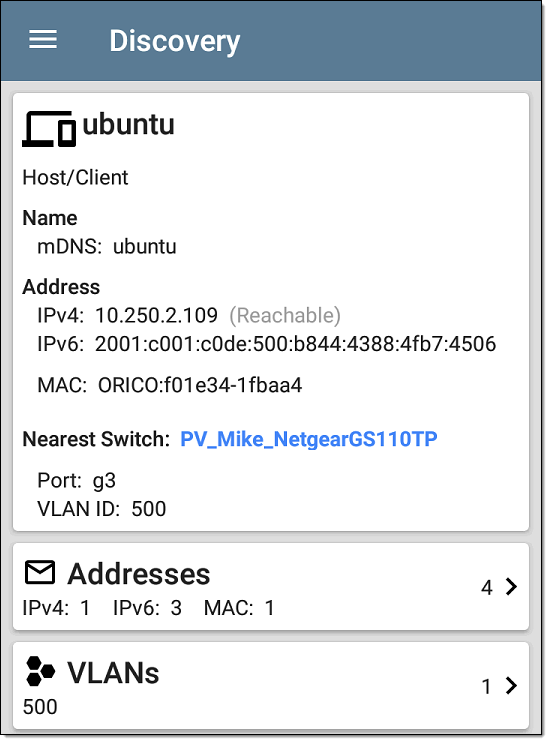

Other hosts and clients are discovered by traffic monitoring and querying. If a host cannot be identified as belonging to one of the other categories (Switch, Router, VoIP device, etc.) then it is categorized as Host/Client.

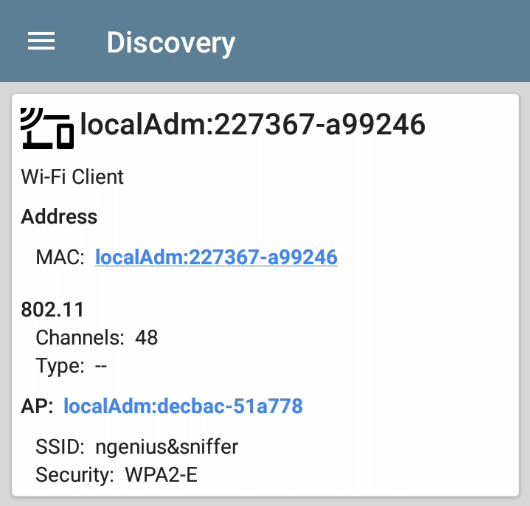

NOTE: A MAC address that begins with LocalAdm indicates that the address has been locally randomized to prevent unauthorized tracking.
