Sharing

The system Files app lets you share files from internal or external storage to Bluetooth, a printer, or the Link-Live cloud service. You can upload one selected file or multiple files at once.

NOTE: Many apps on your unit allow you to save settings and configuration information directly to Link-Live. See Saving App Settings and Configurations.

  1. On the Home Screen, open the Files app by tapping the icon .

  2. Navigate to the folder containing the files you want to share using the Navigation menu or the left-side navigation drawer.

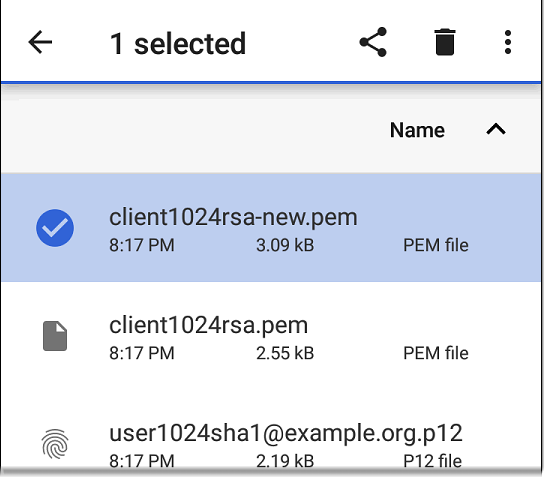

  3. Long-press on one or multiple files to select.

  4. Tap the share icon in the top toolbar to open the Share pop-up dialog.

  5. Tap to choose a sharing method and follow the system prompts to share the file or files.

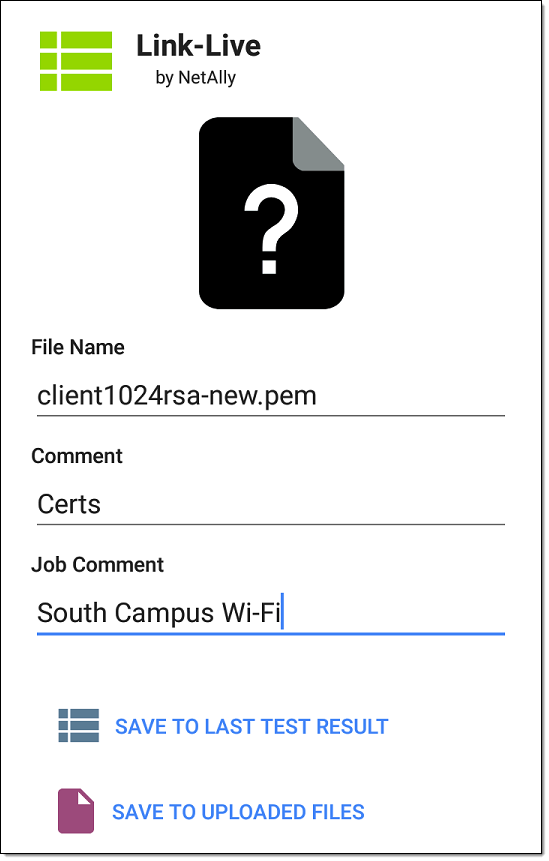

  6. (Optional) If uploading to Link-Live:

    1. Tap the Link-Live option.

    2. Enter any Comments you would like attached to your file.

    3. Select SAVE TO LAST TEST RESULT or SAVE TO UPLOADED FILES. Your files are then uploaded and viewable on Link-Live.com. (The SAVE TO LAST TEST RESULT option attaches the image to your most recently run AutoTest, Performance, iPerf, or Cable Test results on Link-Live.com.)

    4. See the Link-Live chapter for more information on using Link-Live with your EtherScope nXG.

Sharing a Screenshot

To take and share a screenshot:

  1. Press and hold the Power button and the Volume Down button at the same time for one second. (See Buttons and Ports for button locations). The unit beeps and adds a notice to the Notification Panel.

  2. Access the file either by opening the Notification Panel and tapping the screenshot notice or by using the Files app.

  3. Follow the Sharing procedure to share the image using Link-Live, Bluetooth, or another configured application.
