AutoTest App and Profiles

AutoTest is the most comprehensive NetAlly testing application on EtherScope nXG. You can quickly run a variety of test types and save their configurations and network credentials for access whenever you need them. The app is fully customizable with test "Profiles" for Wired and Wi-Fi, wireless Air Quality network connections, as well as individual Test Targets.

AutoTest establishes the Wired and Wi-Fi Test Port connections used by other testing apps, like Ping/TCP, Capture, and Performance.

AutoTest results are automatically uploaded to Link-Live Cloud Service after you claim your EtherScope.

AutoTest Topics

This chapter describes AutoTest Profiles, screens, settings, and test results.

See the Overview of how AutoTest works below or skip to one of the following topics:

Managing Profiles and Profile Groups

Main AutoTest Screen

Periodic AutoTest

Wired AutoTest Profiles

Wi-Fi AutoTest Profiles

DHCP, DNS, and Gateway Tests

Test Targets

AutoTest Overview

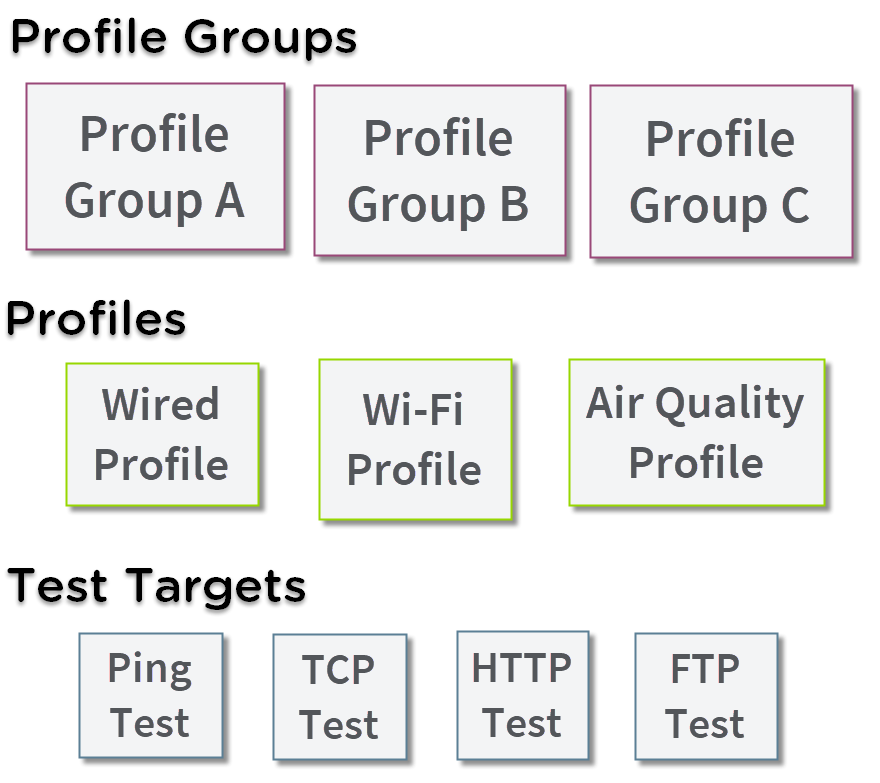

AutoTest consists of three distinct testing levels: Test Targets, Profiles, and Profile Groups. You can create as many Profile Groups, Profiles, and Test Targets as you need.

At the bottom level is a set of individual Test Targets that connect to network services, such as a web app or FTP site. A Test Target defines parameters including type, target URL/IP address, port number, and Pass/Fail thresholds. More complex tests, like HTTP, allow further Pass/Fail criteria, such as strings that must or must not be contained in the HTTP body.

A Test Target can be added to and used in any number of Profiles.

A Profile contains a series of individual network tests. There are three different Profile types: Wired, Wi-Fi, and Air Quality. The Wired and Wi-Fi Profiles include connection tests and credentials for a Wi-Fi network or Wired VLAN. Air Quality is a passive scan of your wireless environment. Profiles provide an automated and consistent way to verify a network from layer 1 through layer 7.

A Profile can be added to and used in any number of Profile Groups.

A Profile Group is a custom-named collection of Profiles. Profile Groups are designed to allow further automation for testing multiple networks or network elements with a single tap of the START button.

A Test Target can be in any number of Profiles, and a Profile can be in any number of Profile Groups.

For example, you can:

  • Test multiple Wired VLANs on a trunk port.

  • Test multiple Wi-Fi SSIDs from a single location.

  • Test both wired and Wi-Fi access from a conference room.

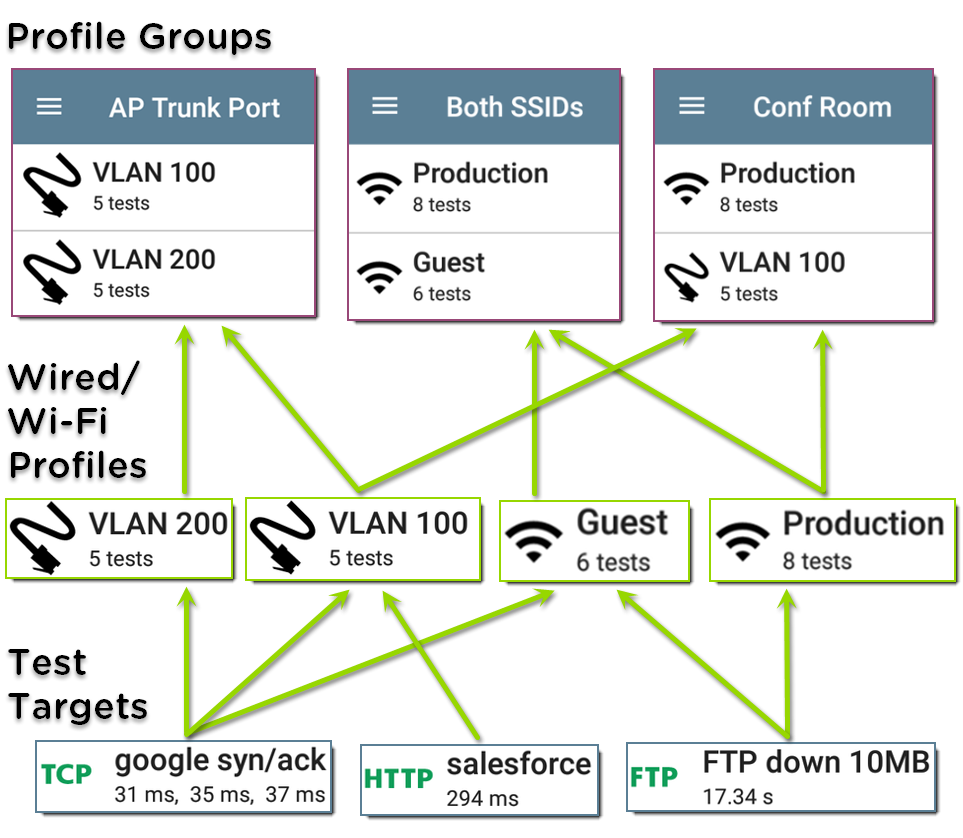

The graphic below shows each of these scenarios.

AutoTest Settings Overview

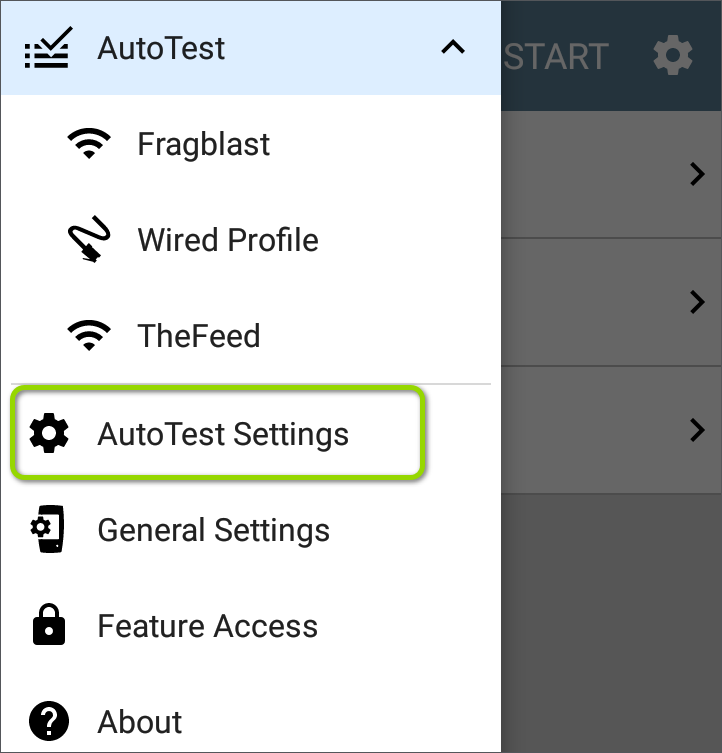

Tap the menu icon in the AutoTest app to open the Navigation Drawer and access the main AutoTest Settings screen.

NOTE: Your AutoTest Settings screen may not display all of the options shown in the images above and below, depending on your tester type.

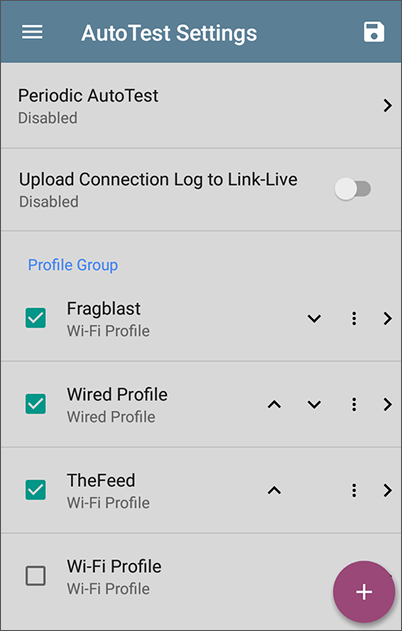

From this screen, you can configure the following:

  • Periodic AutoTest settings: These are described in the Periodic AutoTest topic.

  • Upload Connection Log to Link-Live: When this setting is enabled, your tester will automatically upload the Connection Log to Link-Live each time an AutoTest Profile runs. By default, this setting is disabled and logs do not automatically upload. When disabled, you can still view and upload connection logs from various AutoTest Profile results screens.

  • Profile Group settings: These are described in the Managing Profiles and Profile Groups topic.

Many configuration actions can also be accessed from the floating action menu .
