Device Naming and Authorization

The Discovery app and Wi-Fi app provide options for assigning a User Name and an Authorization to any discovered device with a MAC Address or BSSID. Assigning a User Name and/or Authorization status does not change any of the information on the actual device, only how the device's information displays on the EtherScope on which the Name and/or Authorization are assigned.

Authorizations can also be assigned to a list of devices or addresses all at once. See Setting an Authorization for Multiple Devices or Addresses at Once in this topic or Security Auditing – Batch Authorization in the Main Discovery List Screen topic.

In complex cases, editing the text file that stores names and authorizations is more efficient. Names and Authorizations are saved in the internal authname.txt file and remain set as the unit powers off and on. Instructions for accessing authname.txt are at the end of this topic.

In this Topic

Device Naming Overview

Address Authorization Overview

Sorting and Filtering by Authorization

Assigning a Name and/or Authorization to a Single BSSID or MAC

Setting an Authorization for Multiple Devices or Addresses at Once

Changing or Clearing a User Name or Authorization

Revising or Importing authname.txt

Device Naming Overview

Custom "User Names" can be set in the Discovery app and Wi-Fi Analysis app. Once set, the custom User Name is given precedence and shown in other NetAlly apps wherever device information is displayed.

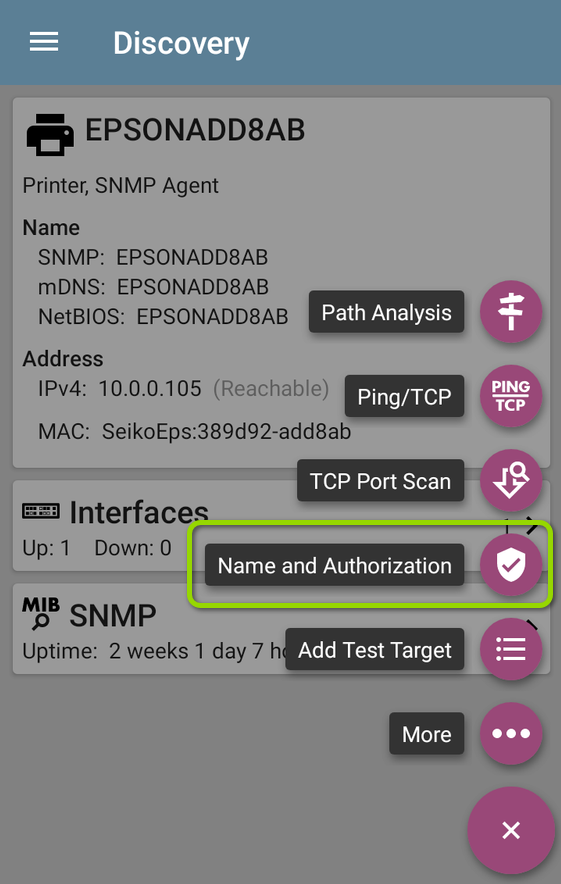

You can assign a custom User Name to a discovered device from its details screen in the Discovery app by opening the floating action menu.

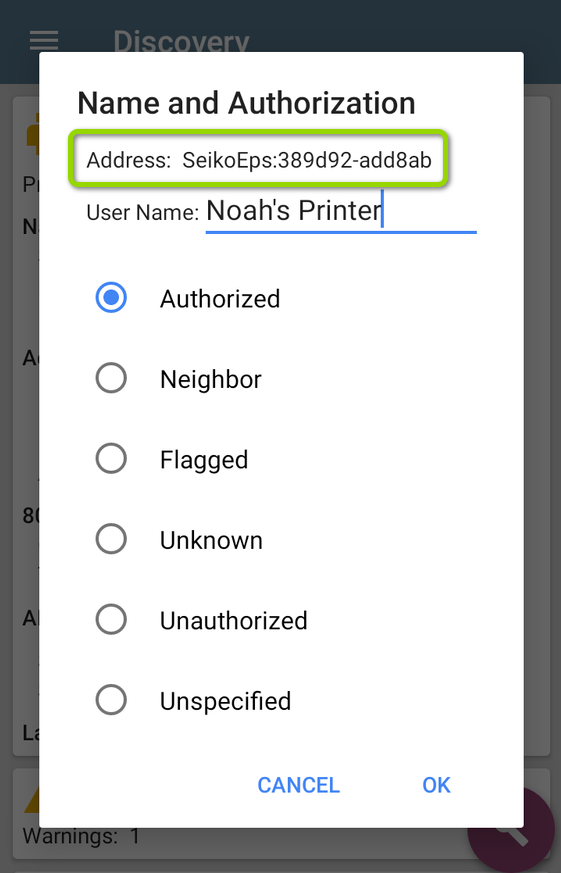

The name entered will be associated with only the address shown in the Name and Authorization dialog.

The name also appears in the Wi-Fi Analysis app.

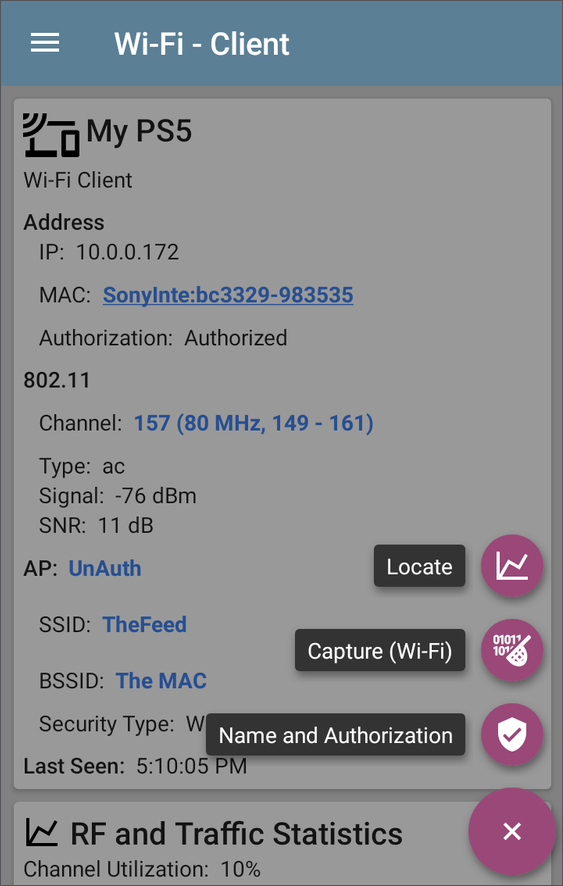

Likewise, you can assign a User Name to an individual BSSID or Client from its details screen in the Wi-Fi Analysis app.

You cannot assign a Name to multiple addresses at once.

Address Authorization Overview

A device's Authorization status is displayed in the Discovery and Wi-Fi apps. This feature allows you to quickly identify your known devices and categorize them with the following statuses:

  • Authorized: For devices approved for use on your network
  • Neighbor: For devices owned and controlled by neighboring organizations
  • Flagged: To give visibility to a specific device
  • Unknown: For devices that have not been identified or classified
  • Unauthorized: For devices that should not be on the network and may present a security risk
  • Unspecified: Default unassigned Authorization status

While the Authorization statuses are designed with these intended meanings, you can use them however you like for your purposes.

Authorization statuses are applied to MAC addresses or BSSIDs (if you have a device with Wi-Fi capabilities). As with the User Name, an Authorization set in the Name and Authorization dialog for a single address will be assigned to the address shown.

The associated device will take the name and authorization assigned, but the other addresses for that device will not. Any device with multiple addresses can also have multiple names.

To assign Authorization statuses to multiples addresses, navigate to the main list screen in Discovery, or BSSIDs or Clients in Wi-Fi Analysis , and touch the overflow menu button . Then, select Set Authorization.

See Setting an Authorization for Multiple Devices or Addresses at Once later in this topic for detailed steps.

Sorting and Filtering by Authorization

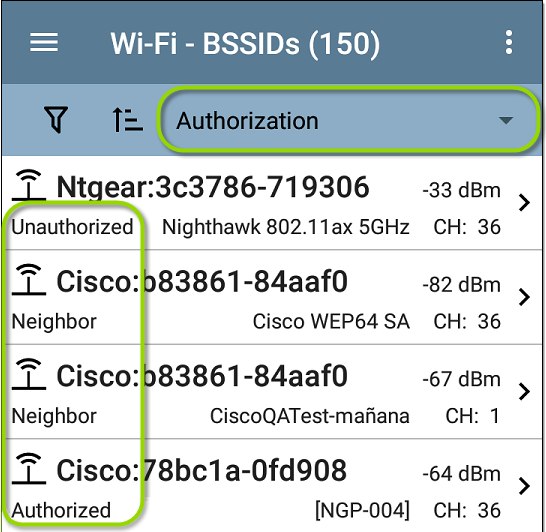

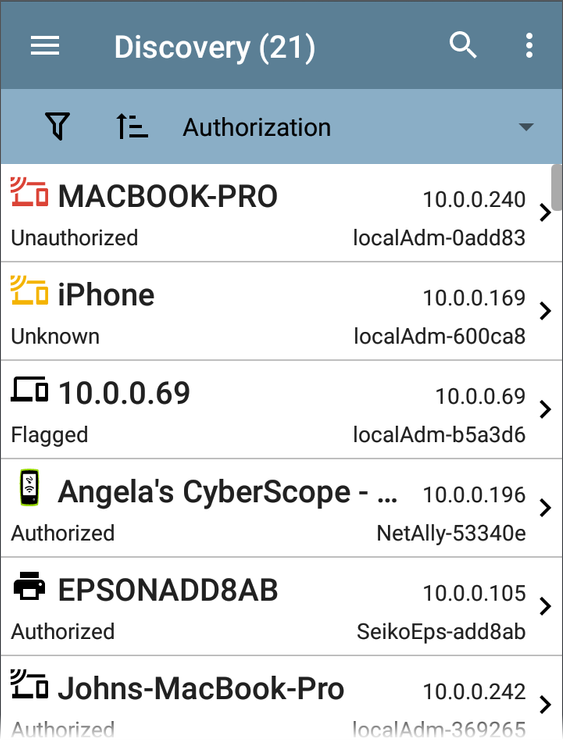

You can also sort and filter by the assigned Authorization in the Wi-Fi and Discovery apps. When a list is sorted by Authorization (in normal sort order), the devices with Authorizations of highest concern appear at the top. The image below shows a list screen sorted this way:

Assigning a Name and/or Authorization to a Single BSSID or MAC

Access the Name and Authorization function from the floating action menu on a Discovery Device Details screen or a Wi-Fi Details screen for a BSSID or Client.

NOTE: When applying an Authorization to a device with multiple BSSIDs or MAC addresses in the Discovery App, the Authorization status is only applied to the MAC address or BSSID displayed on the Details screen and in the Name and Authorization dialog.

To assign Authorizations to multiple BSSIDs, we recommend using the Wi-Fi Analysis app's BSSID list screen Authorization feature. You can go to the Wi-Fi Analysis App from Discovery by touching a BSSID's blue hyperlinked name, like the once shown below.

  1. Tap the FAB on a Discovery or Wi-Fi Details screen for a device with a discovered MAC/BSSID.

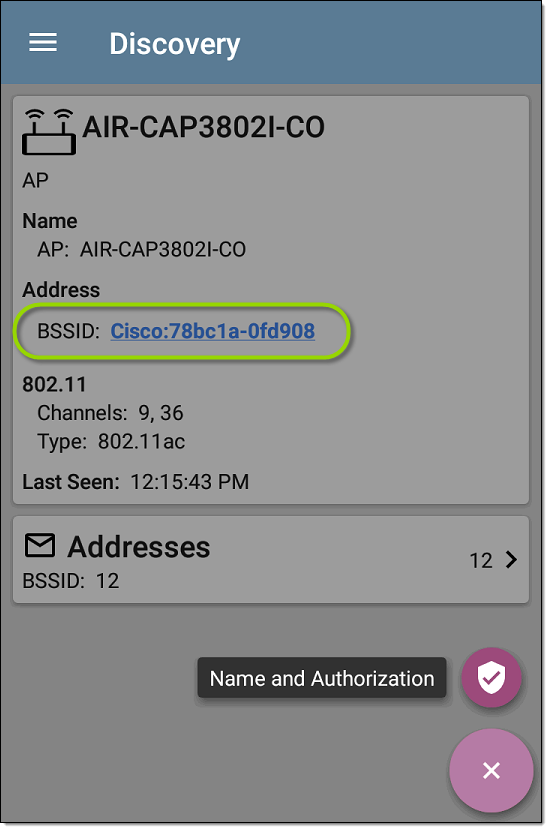

    2. The example above shows an AP's Details screen in the Discovery app.

  2. Select Name and Authorization from the floating menu to open the dialog.

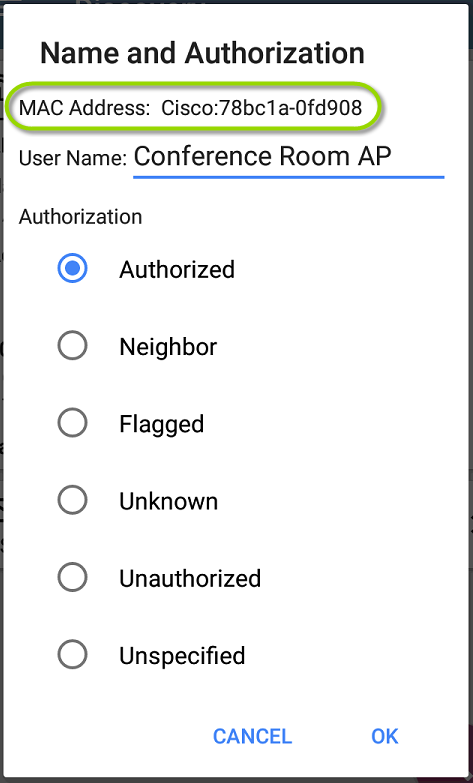

  3. In the Name and Authorization dialog, tap the User Name field to enter a customized name, if desired. In the image above, the user has entered the name "Conference Room AP."

    4. NOTE: It is possible to either enter a user name or select an Authorization. You do not have to do both.

  4. Select the radio button to assign an Authorization status as needed.

  5. Tap OK to apply.

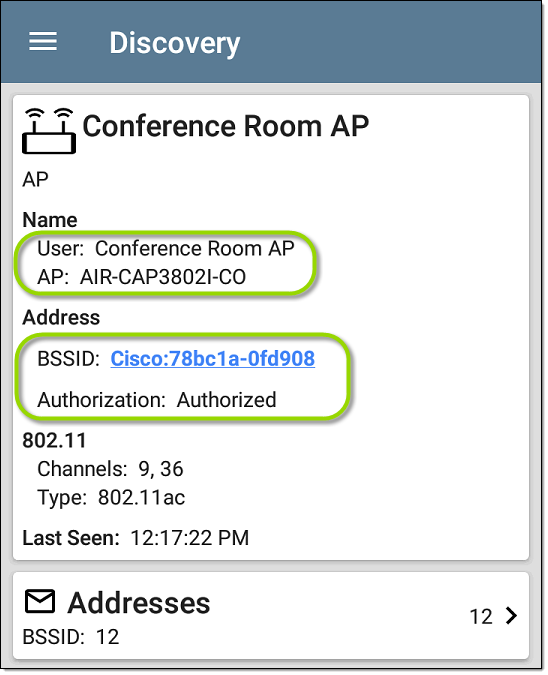

Once applied, the User Name and Authorization are displayed on a device's Discovery and Wi-Fi App Details screen.

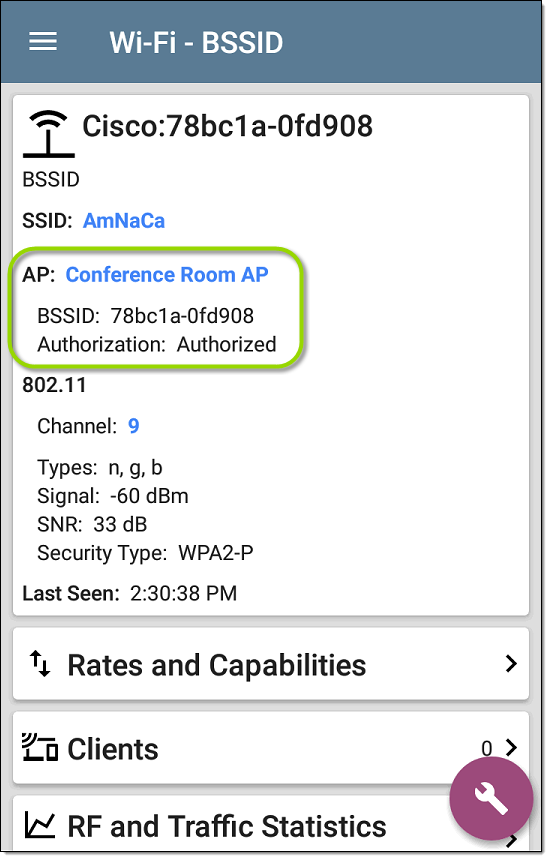

The user-assigned name for the AP and Authorization for the BSSID also appears on the Wi-Fi BSSID Details screen, as shown below.

NOTE: If different Authorization statuses are assigned for different BSSIDs or MAC addresses on the same device, the Authorization of highest concern appears on the device's Details screens.

Setting an Authorization for Multiple Devices or Addresses at Once

From the Wi-Fi app and Discovery app's list screens, you can assign authorizations to batches of BSSIDs and MAC addresses.

NOTE: Also see Setting Authorizations for Multiple BSSIDs or Clients in the Wi-Fi app chapter.

  1. In Discovery, navigate to the main Discovery List screen and filter for the devices you want to assign a status.

    In Wi-Fi Analysis, navigate to the BSSIDs or Clients list screens and filter for the addresses you want to assign a status to.

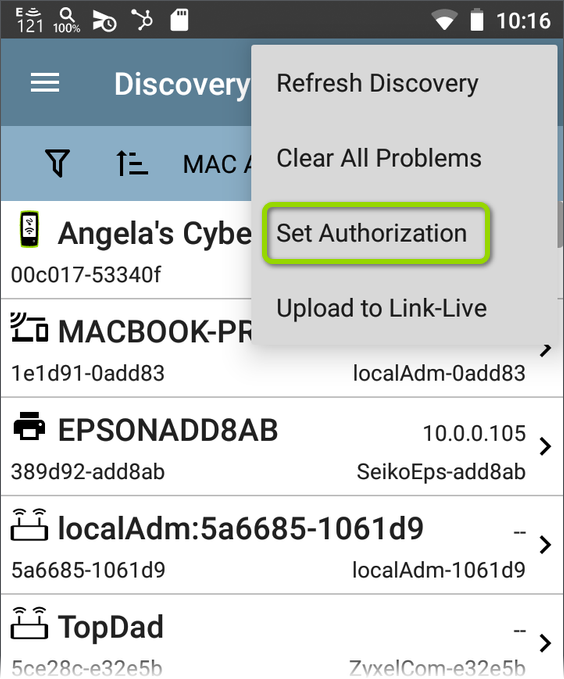

  2. On the list screen, tap the action overflow icon at the top right and select Set Authorization.

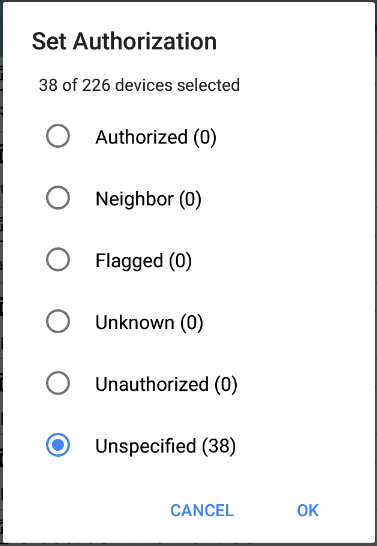

  3. Select your desired Authorization status in the Set Authorization dialog:

    The dialog shows how these addresses are currently categorized and the number in each category.

  4. Sort the list screen by Authorization to view the status of each device or address.

Changing or Clearing a User Name or Authorization

Open the Name and Authorization dialog again for the same BSSID or MAC address on a device to reassign or clear the assigned User Name or Authorization.

NOTE: If the Name or Authorization do not update as expected after a few minutes, you may have assigned them to other addresses for the same device.

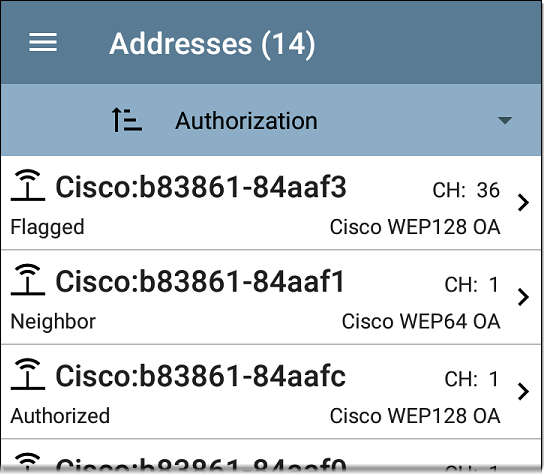

To view all assigned Authorizations for a device, open the Discovery or Wi-Fi Details screen for the device and view the Addresses or BSSIDs screen. Then, sort by Authorization.

To reset a device's User Name and/or Authorization to the unassigned defaults, open the Name and Authorization dialog, clear the User Name field and leave it blank, and select the Unspecified Authorization. Then, tap OK.

Revising or Importing authname.txt

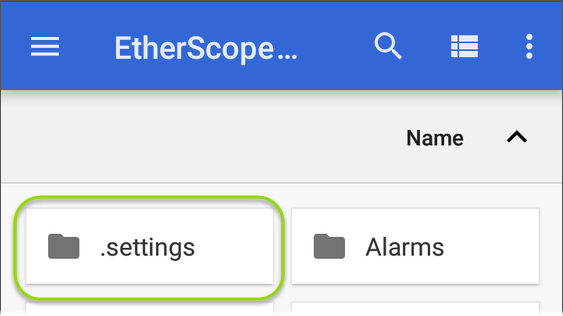

Custom Names and Authorizations are stored in the authname.txt file in the EtherScope's internal storage .settings folder, accessible from the Files app.

NOTE: In the Files app, you may need to tap the action overflow iconat the top right and select Show Internal Storage to navigate to the folder and sub-folders, as shown above.

If desired, you can manually edit this file on the EtherScope unit, or you can create a new authname.txt file on a PC and import it onto your unit in the same file location. (You can also push authname.txt files from Link-Live to your test unit.)

NOTE: Your EtherScope nXG can parse ? wildcard characters in the authname.txt file (although * wildcard characters are not allowed).

The default authname.txt file on your unit contains instructions on how to format your Name and Authorization entries:

  • Each line defines one MAC/BSSID in the format:
    MAC/BSSID, [Authorization][, Customized Name]

  • Authorization is case insensitive and can be one of these strings:

    • Authorized
    • Neighbor
    • Flagged
    • Unauthorized
    • Unknown
    • Unspecified (or blank)

  • You can substitute a question mark ? for a MAC digit to match any value for that digit.

A sample authname file could look like this:

00c017-330ea3, Authorized, iPerf3-server
bc:e9:2f:41:df:b4, Authorized, HP-Deskjet
b827eb-??????, Unauthorized, Raspberry-PI
7c:10:c9:??:??:??, Neighbor, ASUS-AP
18b169-c84600, Flagged, Who is this?

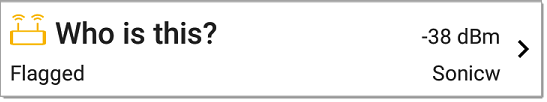

The line 18b169-c84600, Flagged, Who is this? would result in a Discovery details for the device as follows:

To edit the authname.txt file on the EtherScope, third-party apps, such QuickEdit Text Editor, are available from the NetAlly App Store .

For help importing a file, see the Managing Files topic.

NOTE: After importing and overriding the authname.txt file, we recommend Refreshing Discovery in the Discovery app or restarting your unit.
