Common Tools

Web Browser/Chromium

Some of the testing apps, like AutoTest, Ping/TCP, and Discovery, give you the option to Browse to internet addresses using a web browser application. EtherScope has the Chromium browser pre-installed.

Telnet/SSH

The JuiceSSH application pre-installed. Both the AutoTest and Discovery apps provide links to start a Telnet or SSH session using the current device address. Selecting these options opens JuiceSSH and starts a session. You can also open JuiceSSH from the Apps screen.

The JuiceSSH app maintains a list of previous connections. When opened from a NetAlly app, JuiceSSH uses the first connection in the list that matches the IPv4 address or device name and type. If no match is found, a new connection entry is created and used.

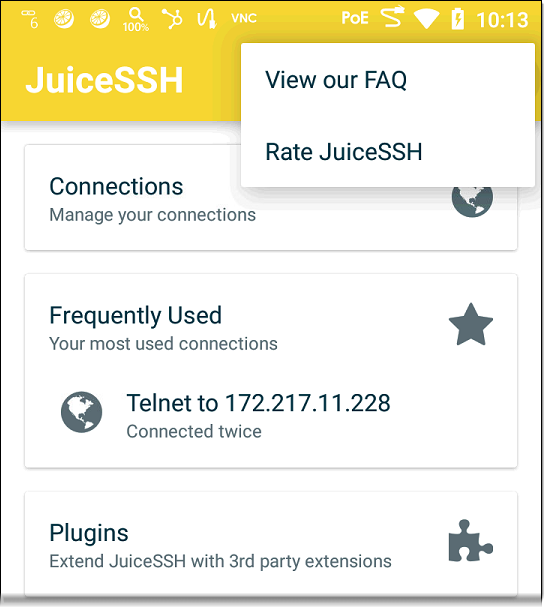

As a third-party app, JuiceSSH contains its own tutorials. For additional help, tap the action overflow button at the top right of the JuiceSSH app screen, and select View our FAQ.

Camera and Flashlight

The camera lens and flash are located on the back of the unit. (See Buttons and Ports.)

The Camera application is located in the Apps screen and on the Home screen by default. Tap the icon to open the camera app and take a photo, which you can then share to other applications.

Additionally, once a Wired or Wireless AutoTest Profile has completed, the floating action button appears and provides the option of opening the camera application to take and attach a picture to the AutoTest result uploaded to Link-Live Cloud Service.

Flashlight

The flashlight is located on the back of the unit. (See Buttons and Ports.)

Access the Flashlight feature from the Quick Settings Panel by swiping down twice from the top of the screen.
