Test and Port Status Notifications

LinkRunner 10G shows notifications from the NetAlly testing apps and unit ports in the top Status Bar and Notification Panel. Swipe down on the Status Bar to view the notifications.

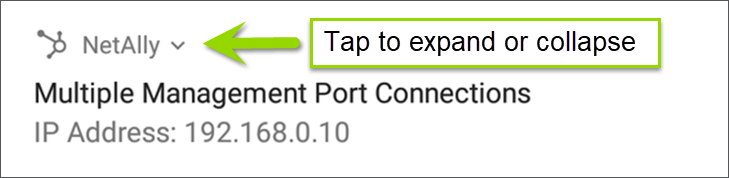

On each notification, you can tap the title and down arrow to expand the box and view more details or options.

Various LR 10G icons appear in your Status Bar, as listed in the following sections.

NOTE: Read Test and Management Ports for descriptions of the port functions. See General Settings for settings that control port functions.

Test Port Notifications

Active network connections on the test ports are established using the AutoTest app.

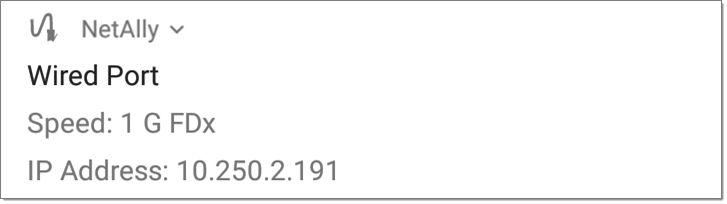

You can set up a Wired Test Port connection (called the "Wired Port" in app settings) for either the top RJ-45 Ethernet port or the top Fiber port by running an Auto Test Wired profile.

NOTE: If both the fiber and top copper ports are connected to an active network, the LR 10G uses the fiber link as the "Wired Port" for testing.

Periodic AutoTest is running or has completed. When Periodic AutoTest is running, the Wired Test Port may not be available to other testing apps.

Management Port Notifications

You can establish a Management Port connection usingthe left-side RJ-45 Management port.

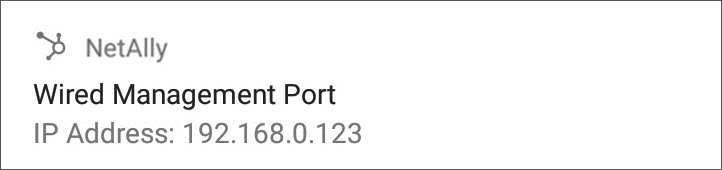

A Wired Management Port connection is established through the left-side RJ-45 Management port. Its details are displayed under the Management Port notification (above).

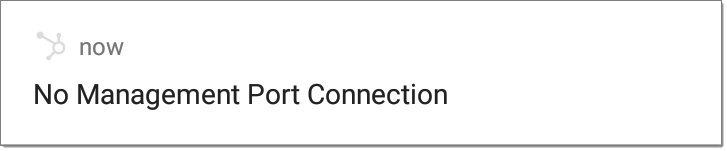

If your Management connection is lost, the following notification displays.

Discovery Notifications

The Discovery notifications show the progress of the discovery process. See the Discovery app chapter for more information.

The active discovery process is running and has progressed to the specified percentage.

No links are currently available for active discovery, either because none of the ports enabled for discovery are connected or AutoTest is running. Discovery is temporarily disabled when AutoTest is running.

PoE

Indicates that your unit is connected to a Power over Ethernet source. See PoE Charging for more information.

VNC/Link-Live Remote

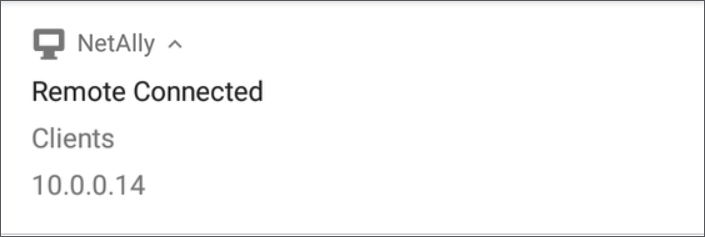

A remote VNC connection is active through a standalone VNC client and/or the Remote function in Link-Live Cloud Service.
