AirMagnet® WiFi Analyzer PRO

Wireless Network Analyzer

Real-time, accurate, independent and reliable analysis of 802.11a/b/g/n/ax wireless networks without missing any traffic.

Watch video

Key Features

Provides details on wireless network connectivity, Wi-Fi coverage, performance, roaming, interference, and network security issues.

Performs testing from the client perspective, independent of network infrastructure, with no access point downtime.

Delivers a complete inventory of devices that are operating in the environment.

Highlights top issues that need immediate attention with a live snapshot into the overall health of the wireless network.

Overview

The AirMagnet WiFi Analyzer PRO automatically detects and diagnoses dozens of common Wi-Fi network performance problems, security threats, and wireless network vulnerabilities, enabling IT staff to quickly solve end-user issues. This tool detects throughput issues, Wi-Fi connectivity problems, device conflicts, signal multipath issues and much more – and features a full compliance reporting engine, including wireless PCI, SOX, and ISO.

AirMagnet Wifi Analyzer PRO

Home screen

AirMagnet WiFi Analyzer PRO automatically detects and diagnoses dozens of common Wi-Fi network performance problems, security threats and wireless network vulnerabilities, enabling IT staff to quickly solve end-user issues.

AirMagnet Wifi Analyzer PRO

Dashboard

Provides information on utilization, numbers of devices, active device count, security settings, and more.
Benefits: Quickly identify the root cause of performance problems caused by overloaded channels, client devices using an excesive amount of bandwidth, or legacy devices.

AirMagnet Wifi Analyzer PRO

Channel

Allows you to monitor a channel and provides information on how the performance of that channel changes over time. Includes utilization, throughput, CRC errors, retries, and lots more.
Benefits: Simplify the process of identifying channel performance problems by looking at traffic trends without having to manually analyze packets.

AirMagnet Wifi Analyzer PRO

Interference

Automatically identifies channels with high levels of interference and assigns a score that highlights how much interference there is on each channel. It also provides a list of devices affected by the interference or causing the interference.
Benefits: Easily identify the root cause of performance problems and quickly find out which devices are causing interference.

AirMagnet Wifi Analyzer PRO

Infrastructure

Allows you to monitor a device (AP or client) and provides information on how the performance of that device changes over time. Includes utilization, throughput, CRC errors, retries, and lots more.
Benefits: Simplify the process of identifying device connectivity or performance problems by looking at traffic trends without having to manually analyze packets.

AirMagnet Wifi Analyzer PRO

Roaming Analysis

Allows you to follow a client device as it roams from one AP to another and provides details on why the device roamed, how long it took to roam, why the roaming process failed, and lots more.
Benefits: Simplifies the process of troubleshooting roaming problems by providing full visibility of the actual roaming process.

AirMagnet Wifi Analyzer PRO

AirWISE

Analyzes both radio frequency and packet data, and uses that information to automatically generate alerts for security or performance issues detected.
Benefits: Speeds the process of finding the root cause of connectivity or performance issues by automatically detecting different types of Wi-Fi problems. No need to be a Wi-Fi expert, AirWISE does the analysis for you!

AirMagnet Wifi Analyzer PRO

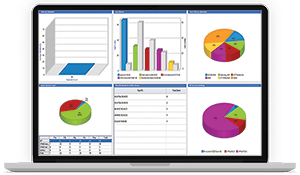

Top Traffic Analysis

Automatically generates multiple traffic analysis charts.
Benefits: Gets you to the root cause of performance issues quickly by allowing you to easily identify problem devices or channels. Gain full visibility into which devices have excessive retries, CRC errors, management frames, or control frames.

AirMagnet Wifi Analyzer PRO

Reports

Automatically generates summary reports, alert reports, device reports, or compliance reports.
Benefits: Simplify the process of validating compliance with different regulations like HIPAA, PCI, SOX, and others. Quickly generate alert reports that provide full visibility of WLAN issues, and share them with your team or customers.

AirMagnet Wifi Analyzer PRO

Decodes

Provides packet captures and analysis on a single tool. Includes the most common filtering tools and provides the option of decoding a capture.
Benefits: Need to perform more in-depth analysis? Simplify the process of troubleshooting the most complicated Wi-Fi problems by quickly performing a packet capture.

AirMagnet Wifi Analyzer PRO

WiFi Tools

Provides access to multiple Wi-Fi troubleshooting and analysis tools. Some of the tools included are: 802.11 Efficiency, 802.11 Analysis, One-Touch Connection Test, Throughput/Iperf test, Jitter test, Find tool.
Benefits: Find the root cause of the most complicated Wi-Fi problems easily by analyzing communication between APs and clients, measuring timing between frames (Jitter), validating throughput, analyzing MCS changes, and lots more!

Capabilities

Never Miss Any Wi-Fi Traffic

AirMagnet WiFi Analyzer gives you the ability to capture any Wi-Fi traffic for 802.11 networks, including 3×3 802.11ac traffic. As a result, you can solve any Wi-Fi network troubleshooting problems right the first time without costly rework or escalations.

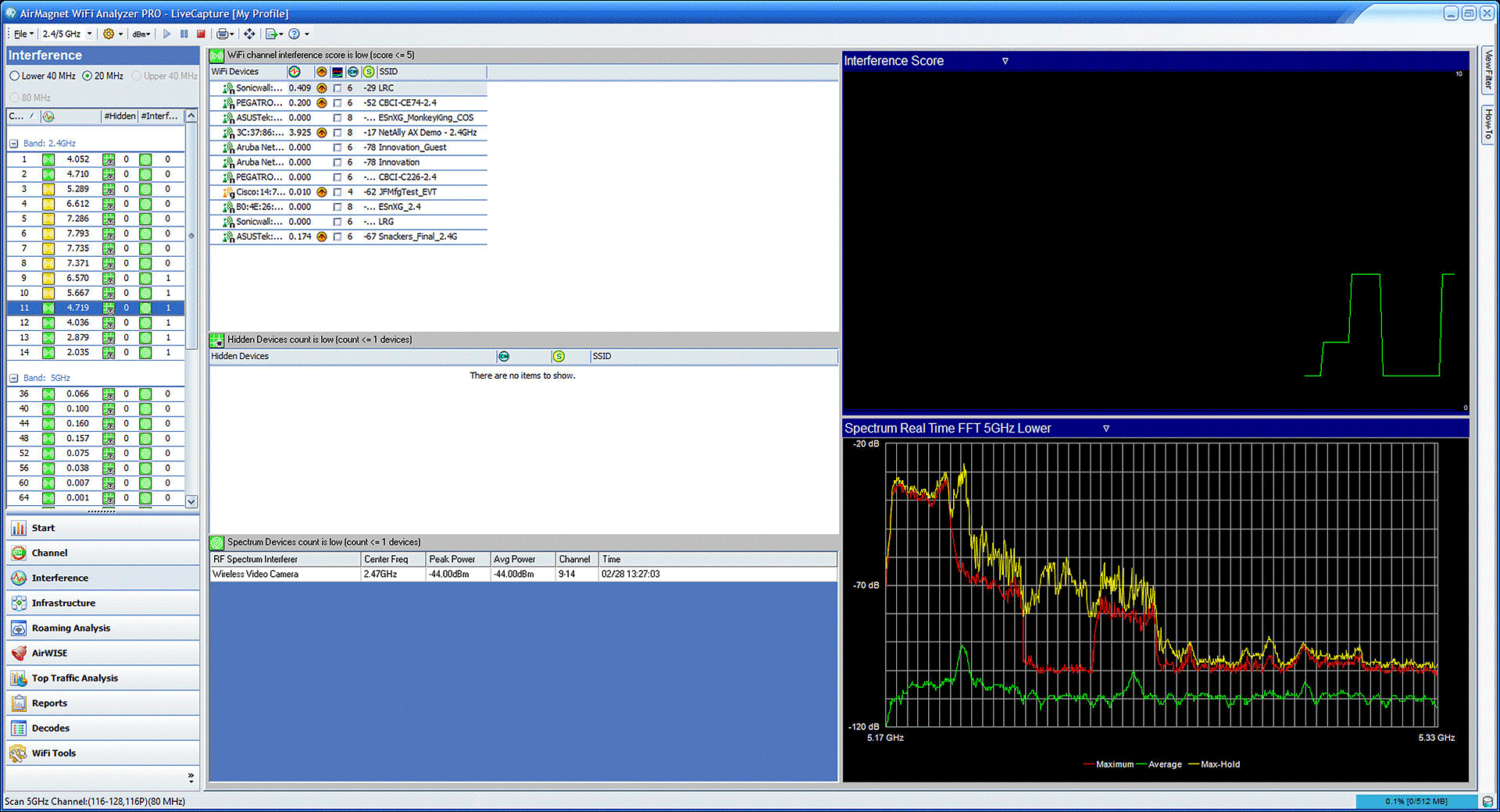

Built-In Wireless Expertise

The AirWISE® engine automatically detects the root cause of dozens of wireless network troubleshooting issues across the spectrum. AirWISE® eliminates the need for users to manually interpret complex packet decodes and wireless data by taking the proactive role of identifying and explaining more than hundreds of threats and performance issues before they impact the Wi-Fi network. The user-friendly AirWISE® interface explains alarms in straightforward details, provides access to additional diagnostic data, and offers advice on corrective actions.

Portable Wi-Fi Troubleshooting Solution With No AP Downtime

Not all wireless network troubleshooting solutions or software tools are created equal. Freeware apps or the ones that cost a few dollars, provide little more than a list of Wi-Fi networks and their properties, and do nothing to solve real-world problems. They don’t match the capabilities of a true wireless network analyzer like AirMagnet WiFi Analyzer Pro that can monitor and solve any Wi-Fi troubleshooting problem.

Many AP solutions claim built-inside troubleshooting with partial scanning or full-time scanning options. Both have severe limitations. Part-time scanning leads to slower detection of problems in the network and could even miss the issue altogether. With full-time scanning, you are limited by diverting the AP from its core purpose which is providing data services. Moreover, APs are fixed on the ceiling and cannot travel to the source of the problem. AirMagnet WiFi Analyzer overcomes these limitations with full-featured, dedicated, on-site Wi-Fi troubleshooting with zero AP downtime.

Complete Wi-Fi Interference Detection & Wi-Fi Analysis

Interference is one of the leading causes of poor connectivity and performance problems in the network. This interference can be from other Wi-Fi devices, poor channel planning (adjacent or co-channel interference), or from non-Wi-Fi interference sources. Wi-Fi interference occurs as a result of co-channel/adjacent channel interference from the corporate or neighbor’s WLAN, hidden nodes in the environment, or non-Wi-Fi devices operating in the 802.11 band. AirMagnet WiFi Analyzer’s interference status indicator lists the overall interference status for each Wi-Fi channel, which is based on the Wi-Fi interference score for the devices contributing to the interference. It also provides a list of hidden nodes and non-Wi-Fi devices (non-Wi-Fi detection requires AirMagnet WiFi Analyzer PRO and AirMagnet Spectrum XT to be installed on the same machine) operating in the channel. This enables users to easily plan future Wi-Fi deployments or modify their existing deployment to minimize interference and, in turn, improve network performance.

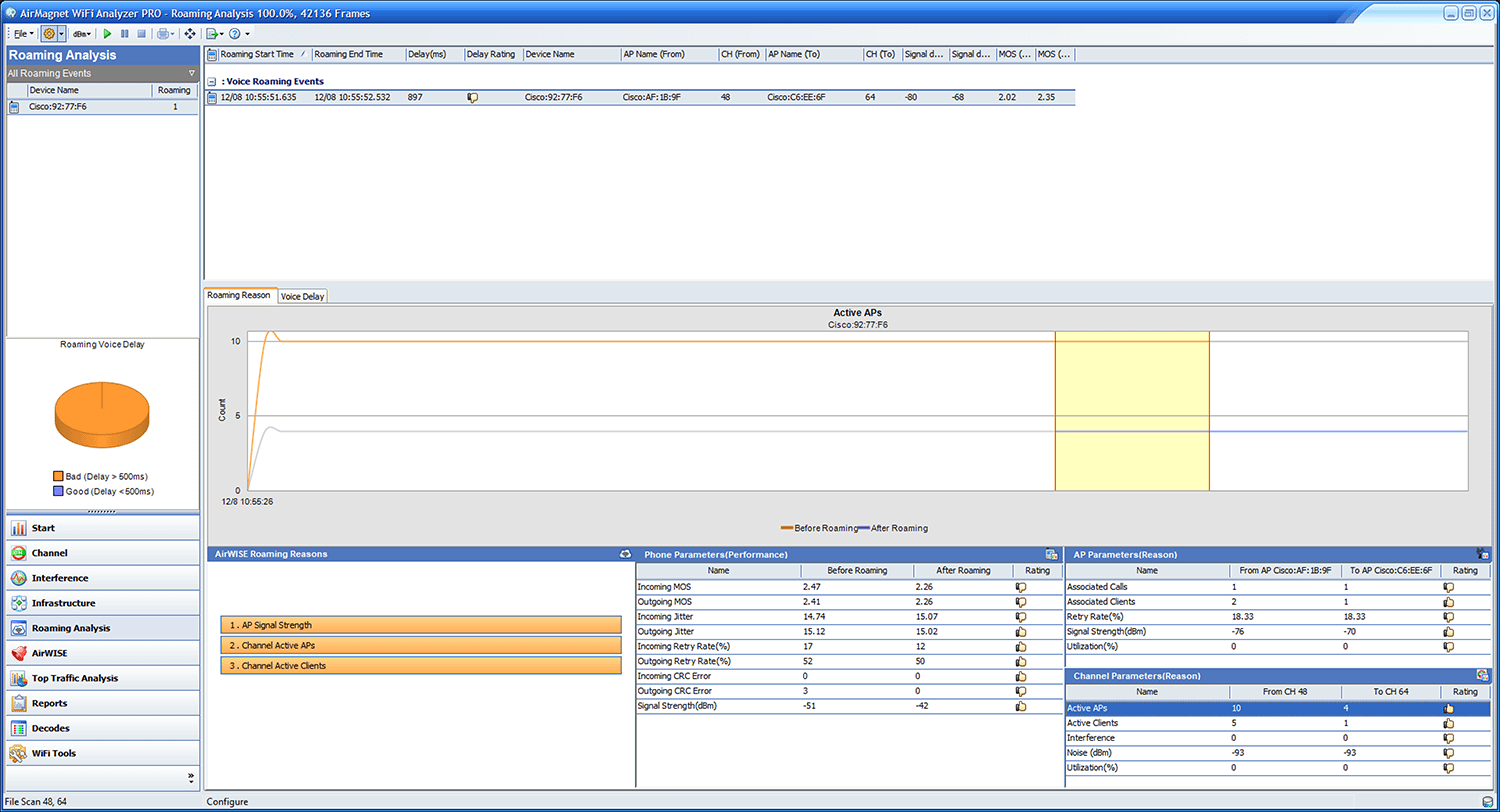

WLAN Client Roaming Analysis

Ensuring a smooth roam between AP’s, without any dropped calls or sessions and in a way that is not noticeable to the user is key for any deployment. AirMagnet WiFi Analyzer PRO leverages support for multiple WLAN adapters plugged into the computer to troubleshoot client roaming issues – one of IT staff’s most commonly reported problems for WLAN networks.

AirMagnet WiFi Analyzer provides advanced details on all roaming transactions for any WLAN client. Users are powered with AirWISE® expertise to get detailed reasons for the roaming event taking place, device and channel parameters that influence the roam, and visibility into whether the roam was good or not.

For VoWLAN phones, users can monitor voice delays and other statistics as the phone roams from one AP to another in the middle of a conversation. The application provides VoFi-specific data (such as WiMOS, Signal Strength, etc.) leading up to the attempt, and packet transmission rates for the conversation.

Models & Accessories
Model Number/Name Description
AM/A1150 AirMagnet WiFi Analyzer PRO
AM/A1150-1YS 1 year AllyCare Support for AirMagnet WiFi Analyzer PRO – AM/A1150
AM/A1150-3YS 3 year AllyCare Support for AirMagnet WiFi Analyzer PRO – AM/A1150
AM/B4070 AirMagnet Spectrum XT (optional)
AM/B4070-1YS 1 year AllyCare Support for AirMagnet Spectrum XT – AM/B4070
AM/B4070-3YS 3 year AllyCare Support for AirMagnet Spectrum XT – AM/B4070

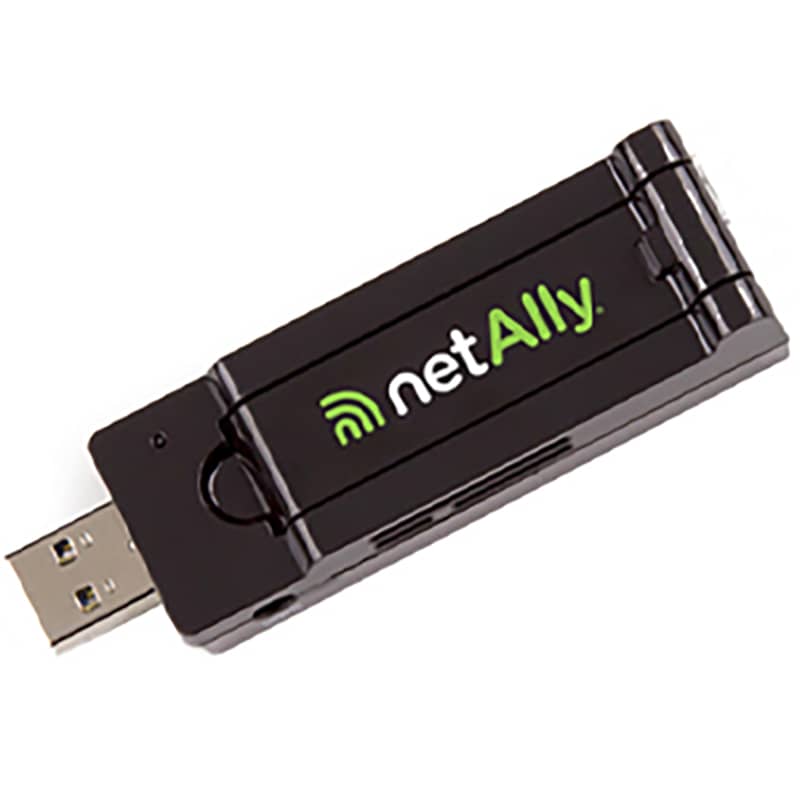

AM/D1090 AirMagnet Multi-adapter kit for WiFi Analyzer (different versions available depending on regulatory domain)
Bundles
Model Number/Name Contents
AM/A1480 AirMagnet WLAN Design & Analysis Suite Bundle (Survey PRO/Planner, WiFi Analyzer PRO, and Spectrum XT)
AM/A1480-1YS 1 year AllyCare Support for AirMagnet WLAN Design and Analysis Suite Bundle – AM/A1480
AM/A1480-3YS 3 year AllyCare Support for AirMagnet WLAN Design and Analysis Suite Bundle – AM/A1480
AM/A1490 AirMagnet WLAN Design and Analysis Suite Bundle with Multi Adapter Kit (Survey PRO/Planner, WiFi Analyzer PRO, and Spectrum XT, and (3) NETSCOUT 11ac USB adapters). Available in US & Canada only.
AM/A1490-1YS 1 year AllyCare Support for AirMagnet WLAN Design and Analysis Suite Bundle with Multi Adapter Kit – AM/A1490
AM/A1490-3YS 3 year AllyCare Support for AirMagnet WLAN Design and Analysis Suite Bundle with Multi Adapter Kit – AM/A1490
AM/A1481 AirMagnet WiFi Analyzer and Survey PRO/Planner
AM/A1481-1YS 1 year AllyCare Support for AirMagnet WiFi Analyzer and Survey PRO/Planner – AM/A1481
AM/A1481-3YS 3 year AllyCare Support for AirMagnet WiFi Analyzer and Survey PRO/Planner – AM/A1481
Supported Adapters

AirMagnet WiFi Analyzer supports the following wireless adapters:
1. Preferred adapters: Adapters that have been comprehensively tested by AirMagnet and are recommended for use with the AirMagnet PRO products. Click here to learn more.
Note: Authentications supported by various adapters could be limited by their own capabilities, Windows wireless zero configurations and various other reasons. Click on “More details” for each adapter to get detailed information on the supported features and authentications.

System Requirements

Laptop/Notebook PC/Tablet PC
Application Operating Systems: Microsoft® Windows 7 Enterprise/PROfessional/Ultimate 64-bit or Microsoft Windows 8.1 PRO/Enterprise 64-bit or Microsoft Windows 10 PRO/Enterprise 64-bit
Intel® Core™ 2 Duo 2.00 GHz (Intel® Core™ i5 or higher recommended)
4 GB memory or higher
800 MB free hard disk space
An ExpressCard slot or USB port, multiple ports in the PC when using multiple adapters. AirMagnet recommends the use of its MULTI-ADAPTER KIT.

AirMagnet-supported wireless network adapter(s)
Optional spectrum adapter and license (required for viewing spectrum data and non-Wi-Fi devices; AirMagnet WiFi Analyzer Pro only). Integration supported with AirMagnet Spectrum XT
Note: AirMagnet Spectrum XT adapter is in the USB form factor

Apple® Macbook® PRO
Operating Systems: MAC OS X v10.9 (or higher) running a supported Windows OS (as noted under Laptop/Notebook PC/Tablet PC section) using Boot Camp®
Intel®-based CPU 2.0 GHz or higher
4 GB memory or higher
800 MB free hard disk space
USB Port, multiple ports when using multiple adapters. AirMagnet recommends the use of its MULTI-ADAPTER KIT.

AirMagnet-supported wireless network adapter(s)
Optional spectrum adapter and license (required for viewing spectrum data and non-Wi-Fi devices; AirMagnet WiFi Analyzer Pro only). Integration supported with AirMagnet Spectrum XT
Note: AirMagnet Spectrum XT adapter is in the USB form factor
