LinkRunner® AT 3000
Network Cable & Connectivity Tester
Quickly verify changes and troubleshoot network links with the LinkRunner AT 3000. This network cable tester with automated reporting is essential for today’s network professionals who need wift and reliable testing of both copper and fiber connections.
- Comprehensive AutoTest: Validates critical network services and available link speed up to 10 Gbps.
- Enhanced Troubleshooting: Quick identification of copper or fiber wiring issues along with switch port details.
- Extensive Reporting: Easily document all test results and configuration changes via the Link-Live™ platform.
Key Features
-
Comprehensive AutoTest
The network connectivity tester features a fast 8-step AutoTest that checks every aspect of network connectivity, including PoE, DHCP and DNS.
-
Speed and Duplex Verification
For 10/100 Mbps and 1Gbps ethernet connections, with detection of multigigabit links (2.5G, 5G, 10Gbps), ensuring maximum efficiency.
-
Switch Discovery
Quickly identifies nearest switch details via protocols like CDP/LLDP/EDP, perfect for monitoring VLAN configurations and traffic.
-
Power over Ethernet
Tests PoE configuration to ensure up to 90W power delivery under real load conditions with TruePower™ technology.
-
Advanced Cable Diagnostics
Conducts detailed cable tests, including length measurement, wiremap, and fault location for copper (RJ45), plus fiber optics link signal strength and SFP diagnostics.
-
Wireless Capability
Optional WiFi/Bluetooth adapters enable remote control* and connectivity for heightened flexibility.
*Requires AllyCare Premium support.
How to use the LinkRunner AT 3000
Test it yourself and see how easy it is to use the LinkRunner 3000. Click on the orange dots to explore.

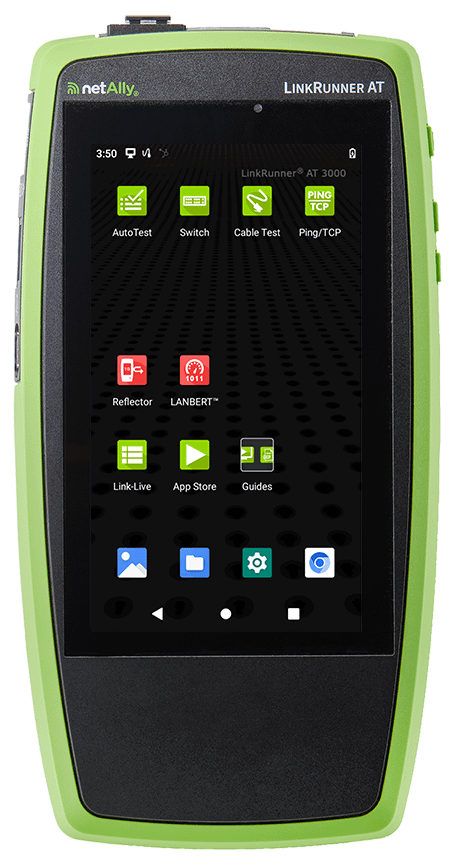

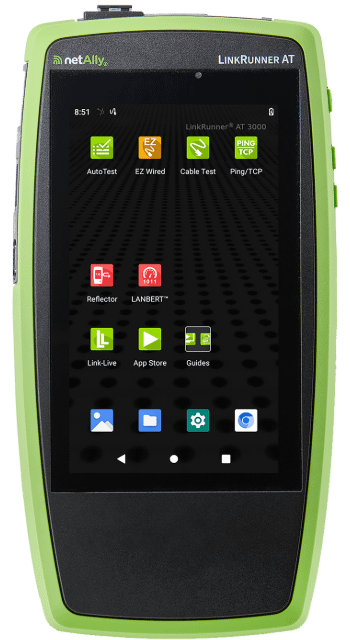

Home Screen
The LinkRunner AT 3000 is designed for frontline technicians who need fast and comprehensive validation of copper and fiber network links with powerful network connectivity troubleshooting. While offering the same core functions of its predecessors (LinkRunner AT 1000 and 2000 models), the LinkRunner AT 3000 features a large touchscreen and in-depth AutoTest that provides deeper network visibility.
Benefits:
With tools designed to help with network changes and troubleshooting, this network tester’s quick cable test and switch identification functionality facilitates installation validation and fast problem isolation.
AutoTest
AutoTest is the most comprehensive testing application on the LinkRunner AT 3000. The app is fully customizable with savable test profiles and reusable Test Targets. Multiple profiles can be grouped allowing a single button press to validate connectivity on all VLANs. AutoTest results are automatically uploaded to the Link-Live platform after you claim your LinkRunner AT 3000.
Benefits:
AutoTest allows engineers to transfer their knowledge of network configurations to the instrument, empowering frontline technicians to run tests against various wired VLANs and with minimal training. The result is a repeatable, documented test with shortened overall test times, which otherwise would not be possible with other test methods.
Multi-Gig Link Validation
The Wired Link Test verifies link speed/duplex for 10/100 Mbps and 1 Gbps, with detection of NBASE-T and Multigigabit 2.5G, 5G, and 10 Gbps links.
Benefits:
Investment in Multi-Gig infrastructure is wasted if the cable plant cannot support the desired speed. But diagnosis of link “downshifting” is difficult, often leading to finger-pointing between cabling contractors and equipment vendors. LinkRunner AT 3000’s measurements on active links provides root-cause evidence when link speed issues occur.
VLAN Identification and Analysis
The LinkRunner AT 3000 AutoTest automatically identifies and lists VLANs supported by the connected switch port by analyzing the VLAN IDs of the traffic received. The LinkRunner AT 3000 continues to show the distribution of traffic by VLAN until another wired AutoTest has executed, or the link to the switch port is severed.
Benefits:
Proper VLAN configuration of switch ports has become important to the operation and security of the modern network so that various traffic can be properly isolated. The LinkRunner AT 3000 AutoTest provides the visibility and documentation of VLAN configuration of switch port automatically that makes this previously complex verification task simple.
Switch Visibility
The LinkRunner AT 3000 AutoTest automatically detects the nearest connected switch port by analyzing the xDP (CDP, LLDP, and EDP) protocols received. The LinkRunner AT 3000 reports the content of the first xDP packet received as the nearest switch in the AutoTest result. It continues to monitor the xDP traffic received and lists the source devices and the content of xDP traffic in the Switch Test detail.
Benefits:
The LinkRunner AT 3000 wired AutoTest provides quick visibility to the configuration of the nearest switch port connected in most cases. Even when it is connected to a switch that has the xDP traffic function disabled or set to be transmitted very infrequently, the LinkRunner AT 3000 can still provide visibility to the nearest xDP-supporting devices. There is no need to use a protocol analyzer to verify xDP configuration, which is much easier for network technicians to handle.

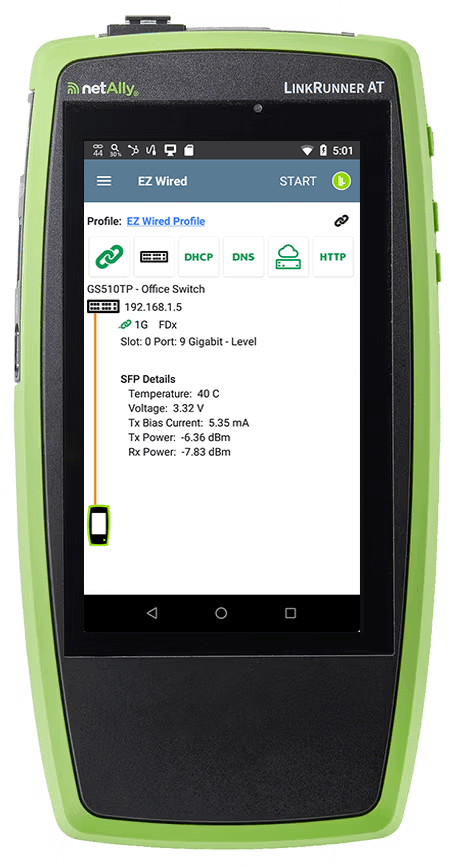

Switch Test
The Switch test provides a graphical representation of the immediate connection. The LinkRunner AT 3000 uses the IEEE Link Layer Discovery Protocol (LLDP), plus the Cisco and Extreme Discovery Protocols (CDP and EDP) to display the nearest switch name, chassis, model, slot, and port. Plus, displays other critical information like switch MAC/IP address, connected VLAN and VLANs supported, link speed and duplex (can identify advertised link speeds up to 10G), connection (MDI or MDI/X), and PoE voltage/power (actual and under TruePower™ load).
Benefits:
Quickly view switch information, such as name/port, detected link speed/duplex, and VLAN configuration. If PoE is enabled, test the power that the switch can offer under load, against what the switch advertises.
Cable Test
The LinkRunner AT 3000’s Cable Test can help you determine cable length and fault status, verify wire mapping of patch cords and structured cabling, and locate cables using toning or WireView office locators. Test structured cabling using the top RJ-45 port. Test patch cables with the built in second RJ-45 for complete pin to pin mapping and TDR.
Benefits:
Quickly identify cable faults like opens, shorts, or split pairs. You can also validate the wiremap, cable length, shield, or see if the other end of the cable is connected to a switch/station.
Ping/TCP
The Ping/TCP test app runs a Ping or TCP Connect test to your chosen target, allowing you to verify connectivity and identify intermittent issues.
A Ping test sends an ICMP echo request to the selected target to determine whether it can be reached and how long it takes to respond. Test for MTU issues using the frame size and do not fragment settings. The results are trended, displaying the last 24 hours as well as loss statistics.
A TCP Connect test opens a TCP connection with the selected target to test for port availability using a 3-way handshake (SYN, SYN/ACK, ACK). You can open the TCP/Ping app from the Home screen, or you can select Ping or TCP Connect from another app, such as AutoTest, while viewing a device’s details.
Benefits:
Continuous testing with response time measurements is available to verify consistency and identify intermittent issues. These tests can be easily recalled by field technicians to reduce configuration time or mistakes, to get more done faster.
Performance Reflector
The LinkRunner AT 3000 offers a packet reflector mode, which enables you to conduct end-to-end network performance tests when used with other NetAlly tools (LinkRunner 10G, EtherScope® nXG, CyberScope® CE). This mode validates network throughput capabilities up to 1Gbps. The reflector also works for 1G LANBERT™ media qualification testing. The line rate reflector supports control of what types of packets to reflect as well as swapping of source and destination MAC and IP addresses for L3 performance testing.
Benefits:
The Reflector app allows you to verify SLA of critical network links when deploying 1G links to support critical devices, e.g. servers, NAS, and WiFi access points, ensuring you’re getting the bandwidth you expect.
LANBERT™ Media Qualification App
The LANBERT media qualification app for the LinkRunner AT 3000 provides a simple and fast method of assessing the quality of transmission and available bandwidth in your copper and fiber cable plant. When used with another LANBERT-compatible NetAlly tester, LANBERT generates and measures the transmission of line rate Ethernet frames over your network cabling infrastructure, qualifying its ability to support 1G on fiber and 10M/100M/1G on copper links.
Benefits:
With the insatiable growth in bandwidth, plus the increasing number of IoT devices at smart offices and homes, network professionals must have confidence that their network cabling will transport all data error-free and at the maximum speed possible. LANBERT allows you to understand the capabilities of your existing cabling, preventing unnecessary cabling upgrades.
Capabilities
-
AutoTest Profiles
-
Switch Test
-
Cable Test
-
Ping/TCP Test
-
LANBERT™ Test
-
Link-Live Platform
Facilitating comprehensive verification of network links, the AutoTest feature on the network connectivity tester allows you to customize and save different test profiles for varied network scenarios. Key functionalities include:
- Rapid Results: Conduct tests in under 7 seconds
- PoE Performance Testing: Verifies loaded PoE configurations up to 90W
- Comprehensive Checks: Covers everything from link speed and duplex to DNS response times and VLAN traffic analysis
This function diagrams the connection to the nearest switch, providing critical configuration data:
- Essential Switch Info: Displays comprehensive details including names, models, VLAN support, and PoE capabilities
- Graphical PoE Details: Offers visual representation of PoE power distribution on cable pairs
The network cable tester with report validates cable integrity, performs detailed wiremapping, and efficiently troubleshoots using:
- Cable Status Indicators: Identify and locate opens, shorts, miswires, and more
- Structured and Patch Cable Testing: Dedicated ports for thorough testing and fault location
- Locate Cable Runs: Using toning, switch port advertisement, light blinking, and remote cable identifiers
Ensuring network device reachability and service availability through:
- Ping and TCP Connection Tests: Allows for ping tests or TCP port connectivity assessments
- Detailed Trend Analysis: Aids in monitoring connectivity over time and identifying intermittent network issues
When used with another LANBERT-compatible NetAlly-tester, LANBERT Media Qualification app generates and measures the transmission of line rate Ethernet frames over your network cabling infrastructure, qualifying its ability to support 1G on fiber and 10M/100M/1G on copper links in order to determine the maximum error-free bandwidth, possibly preventing costly and unnecessary cabling upgrades.
A central system for managing test outcomes and enhancing team collaboration:
- Automated Upload and Management: Direct upload of test results to Link-Live™ for efficient project tracking
- Enhancement with AllyCare: Enables web remote control, software updates, and enhanced support services
Models & Accessories

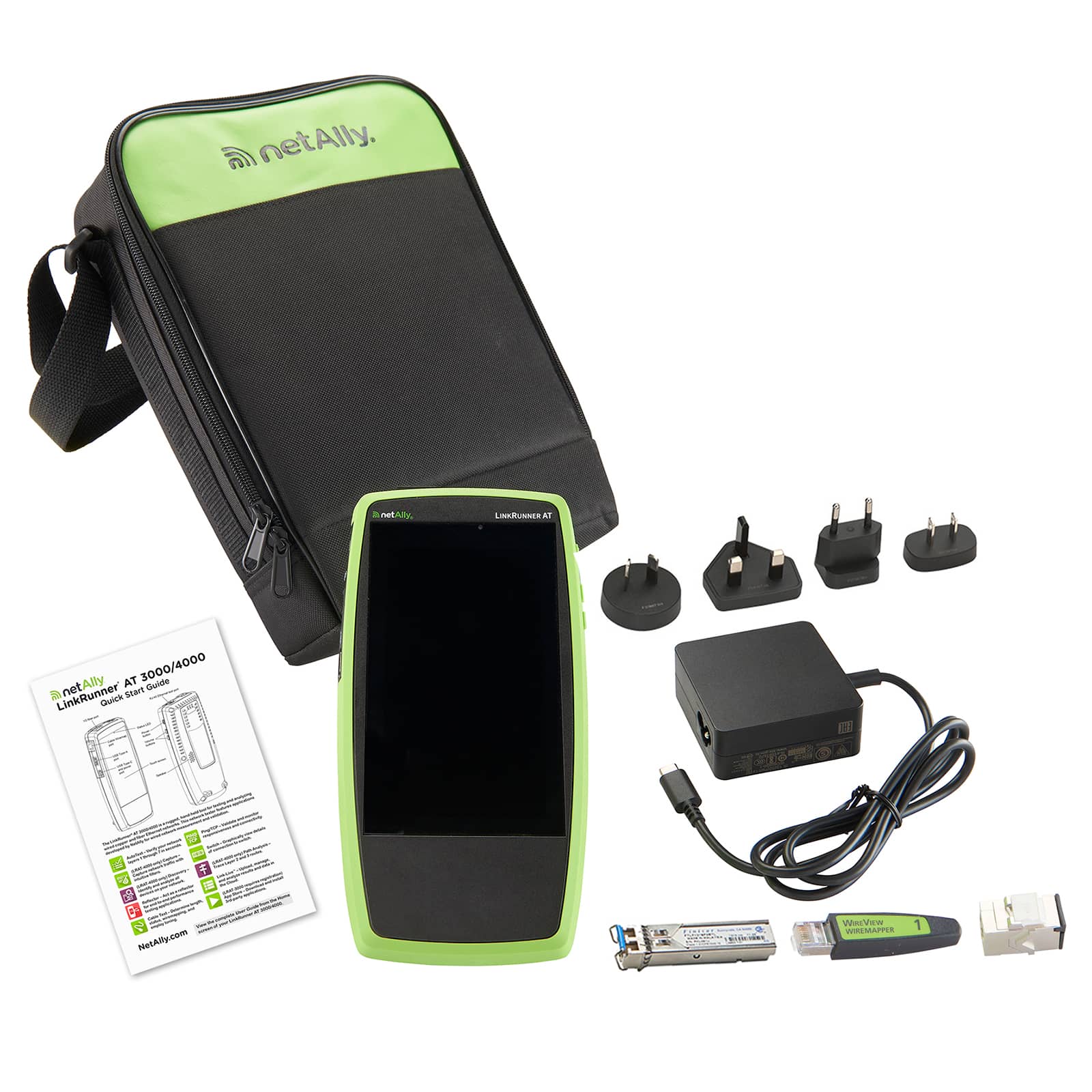

| Model Number/Name | Description |
| LRAT-3000 | Copper & Fiber Network AutoTester – includes: LinkRunner AT 3000 tester, Power Supply with regional power plugs, WireView Cable ID #1, RJ-45 coupler, 850nm multimode 1 Gbps SFP, Quick Start Guide and small soft case.  |
| LRAT-3000-KIT | Copper & Fiber Network AutoTester Professional Kit – includes:LinkRunner AT 3000 tester, Power Supply with regional power plugs, WireView Cable ID #1-#6, RJ-45 coupler, 850nm multimode 1 Gbps SFP, Holster, Quick Start Guide, and small soft case.  |

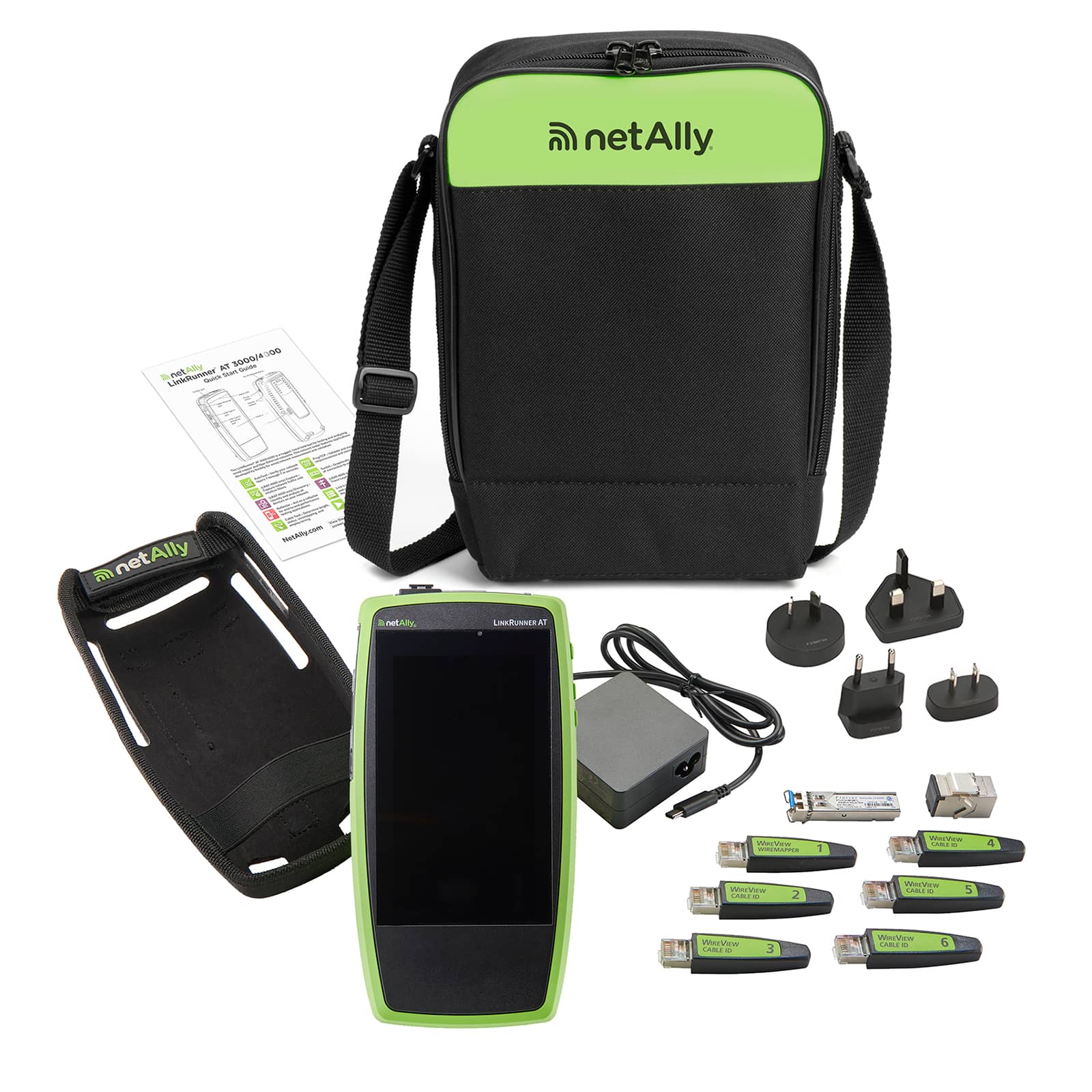

| LINKSOLUTIONS-KT-3K | Copper & Fiber Network AutoTester Link Solutions Kit – includes: (1) LinkRunner AT 3000 tester, (1) Power Supply with regional power plugs, (1) WireView Cable ID #1, (1) RJ-45 coupler, (1) 850nm multimode 1 Gbps SFP, (1) Quick Start Guide, (1) small soft case, (2) LinkSprinter network testers, (1) LinkRunner AT holster (HOLSTER-G3), and (2) LinkSprinter holsters.  |
| G3-PWRADAPTER | AC Charger replacement/spare for LRAT-3000 mainframe with country power cords. |
| HOLSTER-G3 | Field use carrying holster makes troubleshooting on the go easier. Openings allow access to all applicable buttons and interfaces.  |
| SFP-100FX | 100BASE-FX Fiber SFP transceiver with DDM (Multimode)  |
| WIREVIEW 1 | WireView wire mapper #1  |
| WIREVIEW 2-6 | WireView wire mapper #2-#6  |
| ALLYSPACK | Sling-style shoulder bag can hold one tester and accessories, with other pouches and compartments for various tools or personal items  |
Model Comparison
| Testing Feature/App | AT 3000 | AT 4000 | 10G |
| AutoTest & Profiles | ● | ● | ● |
| Switch Test | ● | ● | ● |
| Cable Test | ● | ● | ● |
| Ping/TCP Test | ● | ● | ● |
| Performance Test Reflector* | ● | ● | ● |
| Performance Test Controller + Peer* | ● | ||
| Discovery/Topology Mapping (in Link-Live™) | ● | ● | |
| Path Analysis | ● | ● | |
| Capture | ● | ● | |
| iPerf | ● | ● | |
| LANBERT™ Media Qualification* | ● | ● | ● |
| HTTP/FTP Response Time | ● | ● | |
| Remote Visibility & Control** | ● | ● | ● |
| WiFi Connectivity with Optional Adapter | ● | ● | ● |
| Periodic AutoTest | ● | ● | |
| Connect & Verify Link Speed/Duplex – 10M, 100M, 1G | ● | ● | ● |
| Connect & Verify Link Speed/Duplex – Multi-Gig/NBASE-T/10G | ● | ||
| Link Speed Detection – Multi-Gig, NBASE-T/10G | ● | ● | ● |
| Integrated Camera, Microphone, and Micro SD Card | ● | ||
| Included 1-Year AllyCare Premium Support | Optional | ● | ● |
*LANBERT and Performance tests require the use of two units, a controller and remote.
**Requires AllyCare Premium Support.
Documents
Datasheet
| Title/Description | Download |
|---|---|
LinkRunner AT 3000 Product Datasheet | Download |
Flyers
| Title/Description | Download |
|---|---|
LinkRunner Product Comparison | Download |
| LinkRunner AT Upgrade Guide | Download |
NetAlly Product Selection Guide | Download |
AllyWare Common Technology Guide | Download |
AllyCare Premium Support Services Flyer | Download |
Brochure
| Title/Description | Download |
|---|---|
| LinkRunner Family Brochure | Download |
| NetAlly Corporate Product Brochure | Download |
Manuals
| Title/Description | Download |
|---|---|
LinkRunner AT 3000/4000 Quick Start Guide (English) | Download |
LinkRunner AT 3000/4000 User Guide v2.6 (English) | Download |
LinkRunner AT 3000/4000 User Guide v2.5 (Simplified Chinese) | Download |
AllyWare™ v2.6 Release Notes | Download |
Compliance and Safety (English) | Download |
Compliance and Safety (Multilingual) | Download |
Specifications
| General | |
| Dimensions | 4.02 in x 7.72 in x 1.65 in (10.2 cm x 19.6 cm x 4.2 cm) |
| Weight | 1.06 lbs (0.48 kg) |
| Battery | Rechargeable lithium-ion battery pack (3.63 V, 9.75 Ah, 36.39 Wh) |
| Battery life | Typical run duration: 8 hours Typical charge time: 5 hours (when unit is off) |
| Display | 5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels) |
| Host Interfaces | RJ-45 and SFP test port RJ-45 Cable test port (1) USB Type-A Port (1) USB Type-C On-the-Go Port |
| Battery Charging | USB Type-C 45-W adapter: 100-240 Vac, 50-60 Hz; DC Output Power 15 V (3 A) |
| Supported IEEE Standards | Wired: 802.3/ab/i/u/z, 1000BASE-T PoE: 802.3af/at/bt Class 0-8, and UPOE Fiber: 1000BASE-X, SFP SX/LX/ZX |
| LEDs | 1 LED (Battery Status Indicator) |
| Environmental | |
| Operating Temperature | 32°F to 113°F (0°C to +45°C) NOTE: The battery will not charge if the internal temperature of the tester is above 113°F (45°C) |
| Operating relative humidity (% RH without condensation) | 90% (50°F to 95°F; 10°C to 35°C) 75% (95°F to 113°F; 35°C to 45°C) |
| Storage Temperature | -4°F to 140°F (-20°C to +60°C) |
| Shock and vibration | Meets the requirements of MIL-PRF-28800F for Class 3 Equipment |
| Safety | IEC 61010-1:2010: Pollution degree 2 |
| Altitude | Operating: 4,000 m; Storage: 12,000 m |
| EMC | IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class A |
Support
| Model Number/Name | Description |
| LRAT-3000-1YS | One year of AllyCare support for LRAT-3000, LRAT-3000-KIT, and LINKSOLUTIONS-KT-3K (covers LRAT-3000 only). |
| LRAT-3000-3YS | Three years of AllyCare support for LRAT-3000, LRAT-3000-KIT, and LINKSOLUTIONS-KT-3K (covers LRAT-3000 only). |
