Test Accessory
iPerf TesterWi-Fi is a complex technology, but that doesn’t mean you have to be a rocket scientist to test it.
-
Test Accessory Wi-Fi Solutions - Capabilities
- Models & Accessories
- Specifications
- Documents
Key Features
Serves as an independent iPerf server.
Measures upload and download TCP/UDP throughput, packet loss, and jitter.
Simplifies iPerf server set up and configuration.
Provides a rugged iPerf server for use 24/7 locally or at remote sites.
Provides simple network port tests (PoE, Link, DHCP, DNS, Gateway, and Internet) and sends results to Link-Live.com.
Overview

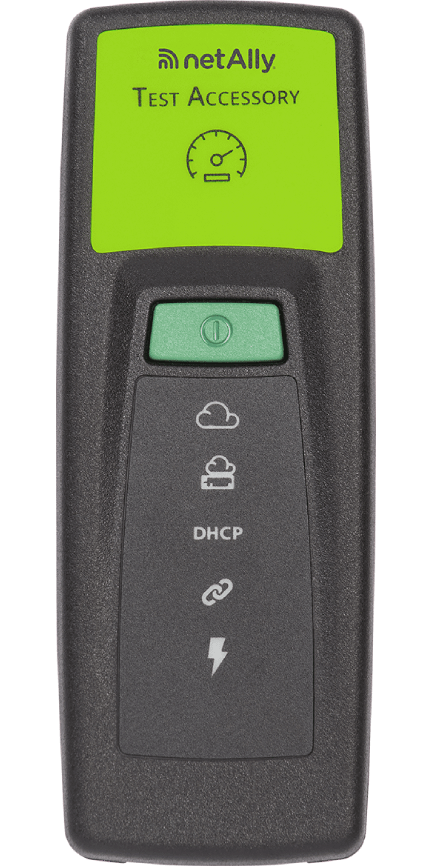

Simplify the process of validating network performance with the Test Accessory pocket-sized iPerf server. It eliminates the hassle of configuring an iPerf server making it easier to measure network throughput, even when you have limited access to the infrastructure. The Test Accessory helps simplify the process of measuring throughput by providing a plug-and-play solution that allows you to quickly validate performance on any part of the network. The Test Accessory can be powered via PoE or with AA batteries.
Capabilities
Plug & Play
The Test Accessory removes the hassle of having to configure your own iPerf server, just connect it to an ethernet port on any part of your network and its ready to go.
Portable & Rugged
The Test Accessory’s compact and rugged form factor allows you to take it anywhere. Just drop into your tool kit and pick it up whenever you need.
24/7 Availability
The Test Accessory was designed to work constantly, just plug into any ethernet port with PoE and forget about it (no running out of power!). Whenever you need to run a test the Test Accessory will wake up automatically, providing 24/7 availability.
Remote Testing
Sometimes validating performance against a remote site can be complicated. More if you don’t have a local resource to help out. Not any more! Just plug in a Test Accessory on any of your remote sites and leave it behind. Even if the remote sites are working on a different subnet you will be able to measure your throughput against them.
Models & Accessories
| Model Number/Name | Description |
| TEST-ACC | (1) Test Accessory for use with AirCheck G2, EtherScope nXG, LinkRunner G2, or LinkRunner 10G. It can also act as an independent iPerf server. |
| TEST-ACC-5PK | (5) Test Accessories for use with AirCheck G2, EtherScope nXG, LinkRunner G2, or LinkRunner 10G. It can also act as an independent iPerf server. |
| TEST-ACC-10PK | (10) Test Accessories for use with AirCheck G2, EtherScope nXG, LinkRunner G2, or LinkRunner 10G. It can also act as an independent iPerf server. |
Specifications
| General | |
| Dimensions | 4.36 in x 1.6 in x 1.28 in (11.07 cm x 4.06 cm x 3.25 cm) |
| Weight | 0.25 lb (0.116 kg) |
| Media Access | RJ-45 Ethernet Port: 10BASE-T, 100BASE-TX, 1000BASE-T |
| iPerf Version | v3.1 |
| Power Sources | PoE and 2 AA Batteries |
| Battery Types | Alkaline (included), Lithium, NiMH |
| Typical Battery Operating Time | Alkaline (1.25hrs), Lithium (4.75hrs), NiMH(3.00hrs) |
| Typical Maximum Throughput Speed | 550Mbps Upload/Download |
| Environmental | |
| Operating Temperature | 32°F to 122°F (0°C to 50°C ) |
| Relative Humidity | 5% to 90%, Non-condensing |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Shock and Vibration | Random 2 g, 5 Hz – 500 Hz (class 2), 1 m drop |
| Safety | CAN/CSA-C22.2 No. 61010-1-1-12, UL Std. No. 61010-1 (3rd Edition), IEC 61010-1:2010, Pollution degree 2s |
| Operating Altitude | 13,123 ft (4,000 m) |
| Storage Altitude | 39,370 ft (12,000 m) |
| EMC | EN 61326-1:2006 |
Documents
brochure
| Title/Description | Download | |
|---|---|---|
NetAlly Corporate Product Brochure
| Download 4.46 MB |  |
flyers
| Title/Description | Download | |
|---|---|---|
Test Accessory Flyer
| Download 346.78 KB | |
NetAlly Product Selection Guide
| Download 383.11 KB | |
AllyCare Premium Support Services Flyer
| Download 397.31 KB | |
manuals
| Title/Description | Download | |
|---|---|---|
Test Accessory User Guide - English
| Download 659.83 KB | |
Test Accessory User Guides - MultilingualFrench, Spanish, German, Portuguese, Russian, Korean, Japanese, Simplified Chinese, and Traditional Chinese
| Download 5.71 MB | |
Compliance and Safety Guide - English
| Download 261.48 KB | |
Compliance and Safety Guide - Multilingual
| Download 858.35 KB | |
