AirMagnet® Survey PRO
Automated WiFi Heatmap Software & Wireless Design Tool
AirMagnet® Survey PRO software streamlines WiFi 7 surveys with automated heatmaps and intelligent AP placement suggestions. Perfect for site surveys and network design with minimal technical expertise required.
- Create predictive models and get intelligent AP placement recommendations for optimal network design on the 2.4/5/6 GHz bands
- Generate automated WiFi heatmaps to visualize your entire network coverage
- Use with AirMapper WiFi site surveys on the AirCheck® G3, EtherScope® nXG, CyberScope® and CyberScope® Air
Key Features
- Model WiFi and optimize AP placement for new or existing networks without setting up APs
- Measure how well the WiFi network works in real life using AirMapper™ Site Survey
- Create heatmaps that show full WiFi coverage, noise, SNR, interference, throughput, data rates, retries, loss, and more
- Reduce time spent planning by quickly importing walls from CAD floor plans
- Simplify outdoor WiFi site surveys with GPS support
- Use customizable templates to create professional reports in different formats
How to use WiFi Design and Site Survey Analysis Software?
Test it yourself and see how easy it is to use AirMagnet® Survey PRO. Click on the orange dots to explore.
Home Screen
AirMagnet Survey PRO allows you to predictively model WiFi network changes or design a new network for optimal coverage, connectivity, and performance. It also allows you to simulate changes to an existing network, compare a design versus a survey side-by-side, automatically validate requirements, or generate custom reports.
Models
| Model Number/Name | Description |
| AM/A4018G | AirMagnet Survey PRO (includes Planner) |
| AM/A4012G | AirMagnet Planner |
| AM/B4010G | AirMagnet Survey Express |
| AM/A4016G | AirMagnet Survey Express to Survey PRO (upgrade model) |
| AM/D1095 | AirMagnet Multi-Adapter Kit for Survey (only available for US and Canada) |
| AIRCHECK-G3-PRO | Includes: AIRCHECK-G3-PRO mainframe with 1 year of AllyCare support (AIRCHECK-G3-PRO-1YS), shoulder sling bag, AC charger, and Quick Start Guide.  |
| TEST-ACC | Test Accessory Pocket iPerf Server, for use with AirCheck G3 and AirMagnet Survey (can be used independently)  |
Documents
Datasheet
| Title/Description | Download |
|---|---|
AirMagnet Survey PRO Datasheet | Download |
AirMagnet Planner Datasheet | Download |
NetAlly 802.11a/b/g/n/ac 3×3:2 USB Adapter Datasheet | Download |
Flyers
| Title/Description | Download |
|---|---|
AirMagnet Survey PRO Product Flyer | Download |
AirMagnet Survey PRO Product Comparison | Download |
AirMapper Site Survey Flyer | Download |
AirMagnet Survey PRO Recommended Adapters | Download |
AirMagnet Survey PRO on Demand Flyer | Download |
AllyCare Premium Support Services Flyer | Download |
Brochure
| Title/Description | Download |
|---|---|
NetAlly Corporate Product Brochure | Download |
Manuals
| Title/Description | Download |
|---|---|
AirMagnet Survey PRO/ Planner User Guide v12.0 (English) | Download |
AiMagnet Survey PRO Release Notes v12.0 | Download |
AiMagnet Planner Release Notes v12.0 | Download |
AirMagnet Survey Express Release Notes v12.0 | Download |
Capabilities
-
WiFi Modeling with AP Placement
-
-
Real-World Survey Data & GPS Support
-
Get the most out of your WiFi network with AirMagnet Survey PRO. This wireless site survey tool helps you build detailed models of any wireless environment – even before the network is deployed or the building is constructed. Using AirMapper™ Site Survey on the AirCheck® G3, EtherScope® nXG, CyberScope® or CyberScope® Air, you can optimize your network for maximum performance.
Our automated AP placement feature streamlines network design:

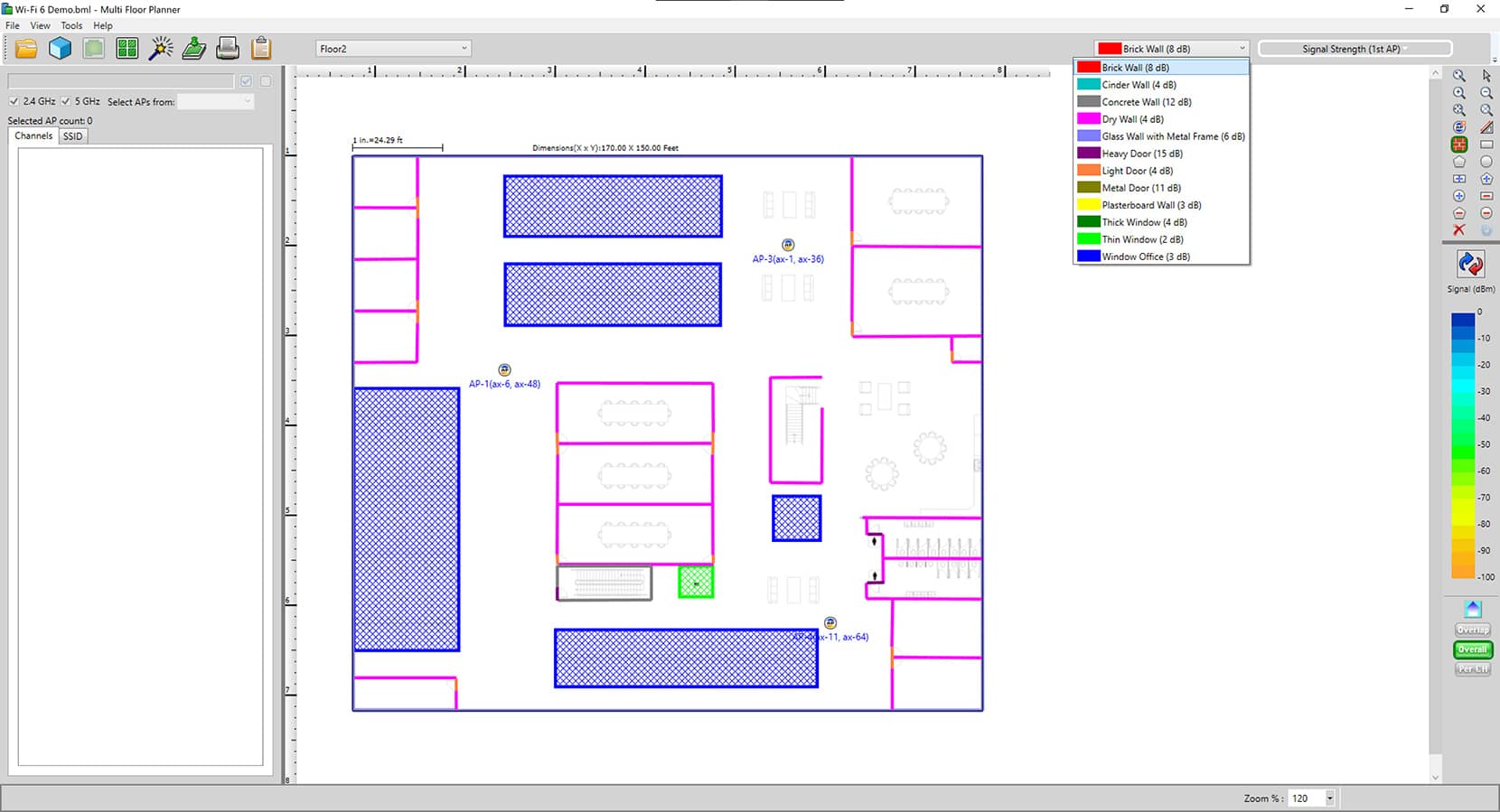

- Load location maps and use the built-in library of walls, doors and windows to precisely match building characteristics

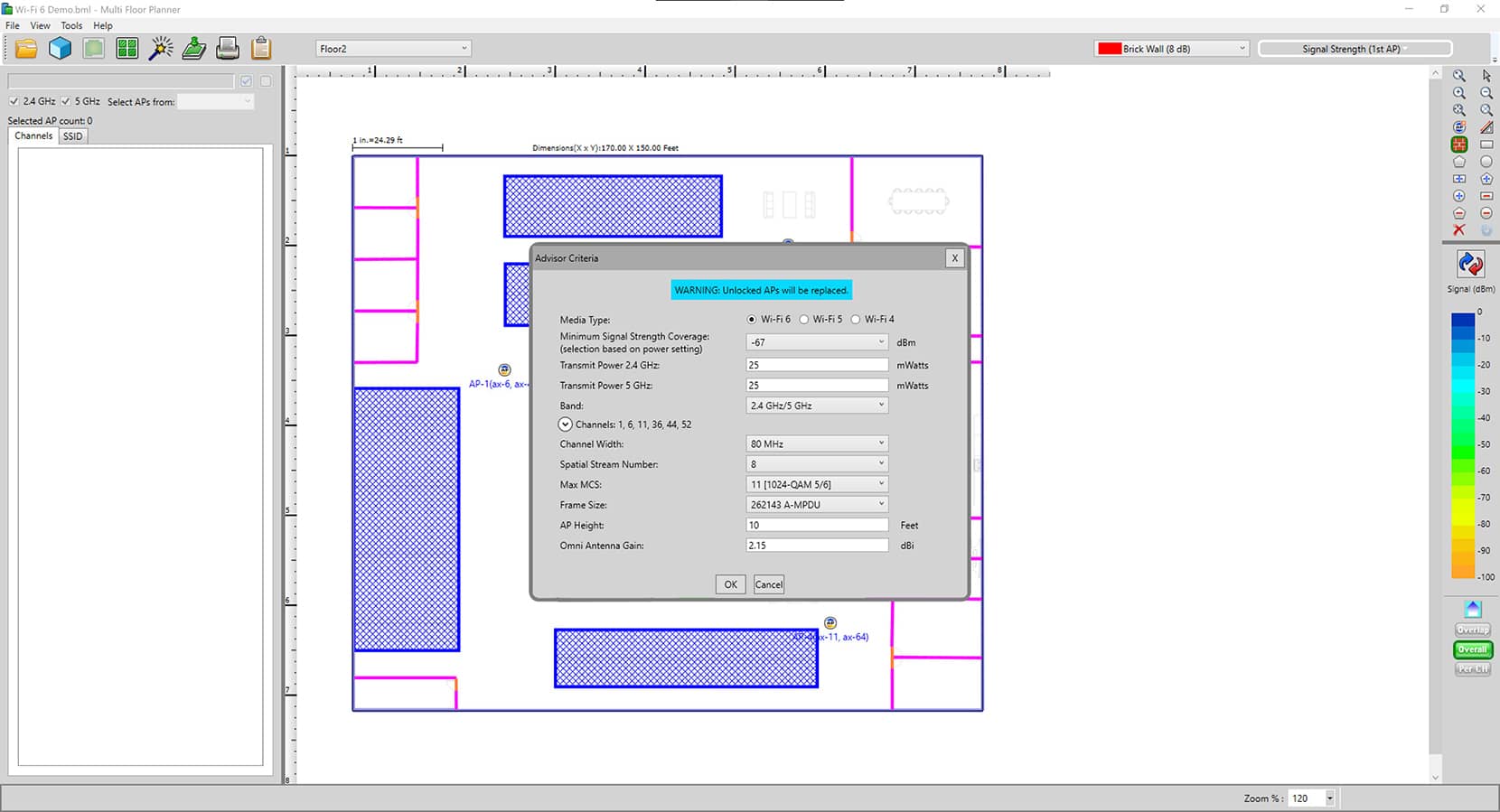

- Get automated suggestions for optimal access point placement

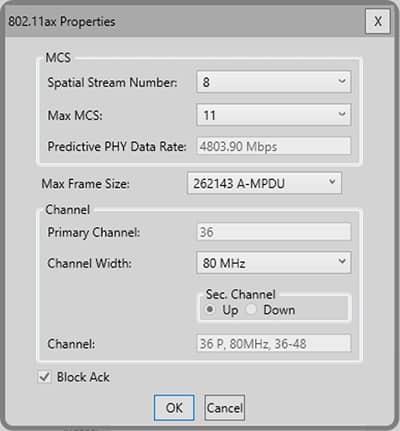

- Set independent configurations for all frequency bands including channel, IP address, transmit power, antenna type, orientation, and height

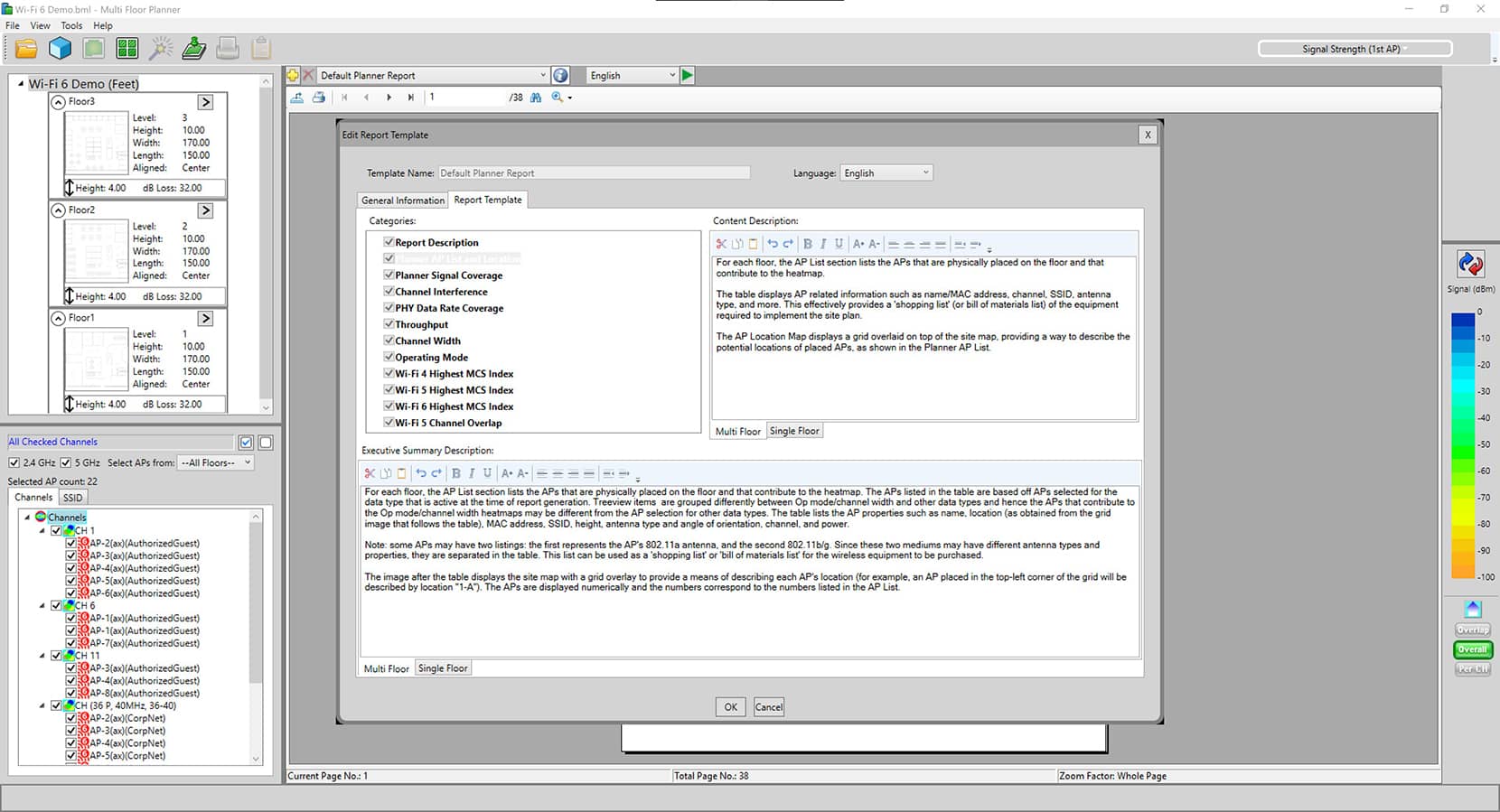

- Generate professional reports with installation specifications and RF coverage information
- Experiment with “what-if” scenarios by adjusting AP settings or testing additional AP locations

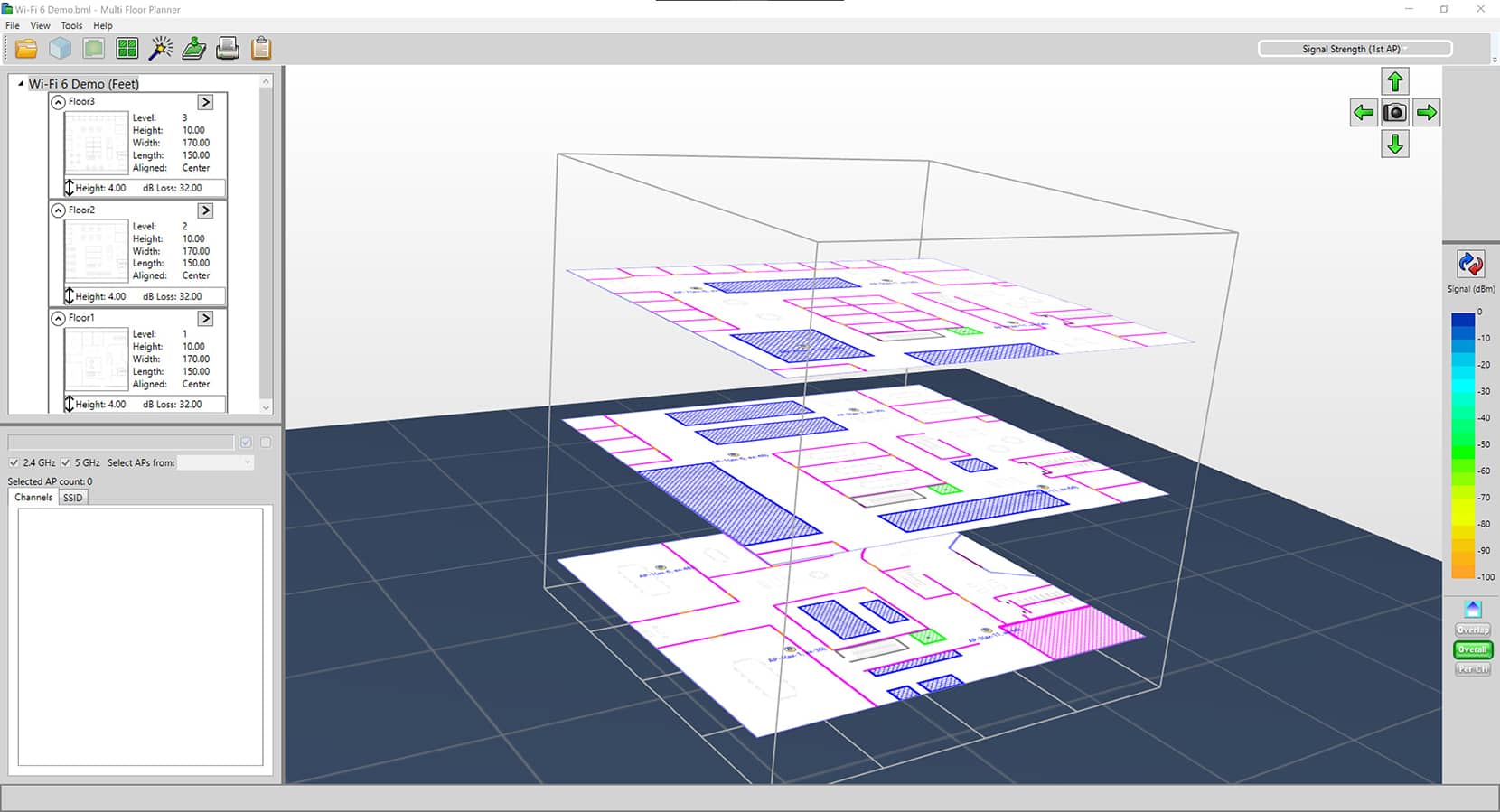

With AirMagnet Survey PRO, users can design new multi-floor WiFi networks, as well as plan their migration strategies for existing legacy networks, including one-to-one replacements or the phased introduction of devices into their legacy network. Users can plan their deployments for user capacity or performance without any physical AP rollout. AirMagnet Survey PRO provides unique coverage maps for WLAN throughput and other technology specific heat maps such as signal coverage, Operating Modes, MCS Transmit Rate, Channel Width and Channel Overlap, to predict the WLAN performance at every location on the floor and offer the best design that minimizes any rework once the network is deployed.
- Automatic Wall Extraction (AWE)

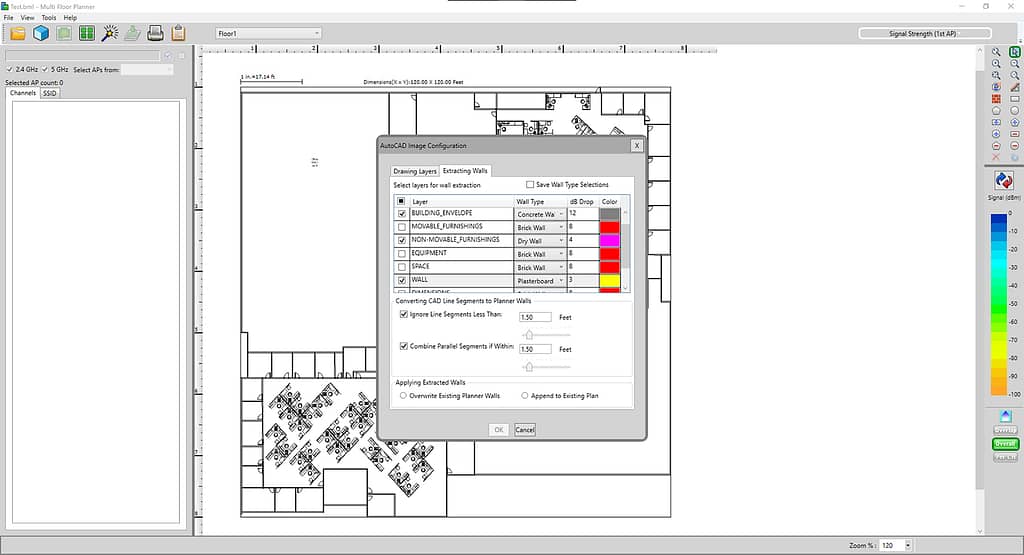

Users can reduce the amount of time spent preparing a floor plan for wireless deployment by quickly importing walls from CAD floorplans with only a few clicks of the mouse. Each CAD layer can be individually selected and given a unique attenuation type.
With the AirMapper site survey software on supported devices, streamline your survey process:
- Perform faster and simpler WiFi site surveys on a fully mobile platform – no dongle or tethered device required
- Save time with simultaneous active and passive surveys in a single walkthrough
- Create visual heat maps of key performance metrics
Experience the power of GPS integration and Google Earth compatibility with AirMagnet Survey PRO:
- Automatically collect data using your NMEA-compliant GPS device for outdoor surveys
- Analyze results in our interface or export into Google Earth for detailed street view
Note: GPS survey support requires the use of the AirMagnet Survey PRO software for data collection.
AirMagnet Survey PRO’s WiFi heatmap software goes beyond basic RF coverage checks with comprehensive network analysis:

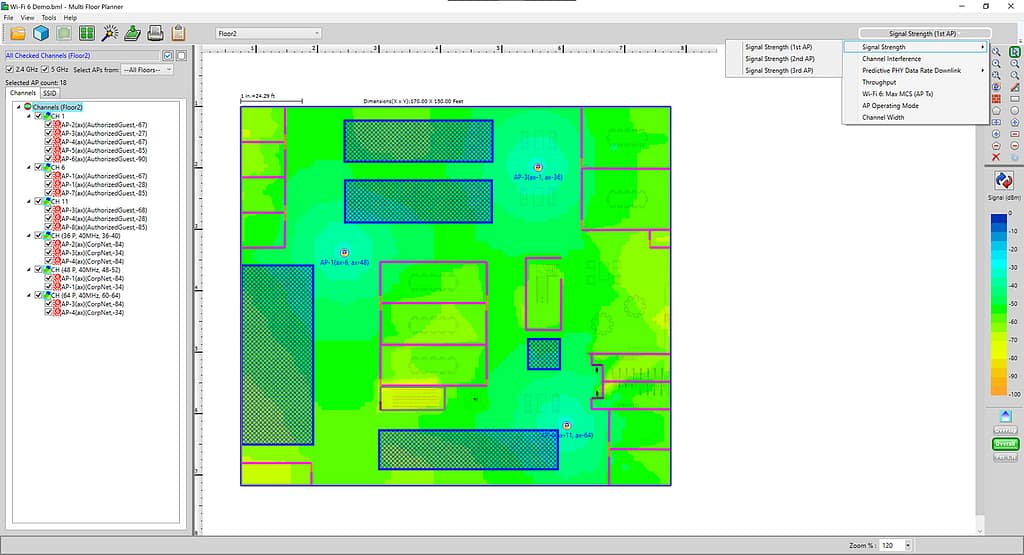

- Generate detailed heat maps showing WLAN coverage, noise, SNR, and interference
- Analyze throughput, data rates, retries, and packet loss
- Make informed design decisions using our NXT portable spectrum analyzer to visualize RF energy
- Identify and address performance issues including interference
- Pinpoint non-802.11 devices causing interference in your WLAN
Note: Spectrum analysis requires the use of the NXT portable spectrum analyzer on the AirCheck™ G3, EtherScope® nXG, CyberScope® or CyberScope® Air.
System Requirements
Laptop/Notebook PC/Tablet PC
Operating Systems: Microsoft Windows 10 Pro/Enterprise 64-bit or Microsoft Windows 11 Pro/Enterprise 64-bit.
Intel® Core™ 7 processor or higher recommended
8 GB or higher recommended
1 GB free hard disk space
USB port, multiple ports in the PC when using multiple adapters
AirCheck G3/EtherScope nXG/CyberScope with AirMapper™ (recommended) or AirMagnet-supported wireless network adapter(s)
A site map in a format supported by AirMagnet Survey (supported formats are: .bmp, .dib, .dwf, .dwg, .dxf, .emf, .gif, vsd, .jpg, .wmf, .vdx or .png)
Google Earth must be installed to export GPS data for outdoor surveys (Survey PRO only). Here is a list of GPS devices that have been approved for use with the AirMagnet Survey product:
Garmin eTrex LEGEND HCx
Garmin GPS18X USB
Microsoft GPS-500 SIRF III
Garmin GPSMap 60
DeLormeEarthmate GPS LT-20
DeLormeEarthmate GPS LT-40
Garmin eTrex
Garmin eTrex Legend
Garmin GPS 18 Deluxe
Magellan eXplorist 500
Pharos iGPS-180
US GlobalSat BU-353-S4 (Recommended)
Apple® Macbook® PRO
Operating Systems: MAC OS X v10.5 (Leopard™) or higher running a supported Windows OS (as noted under Laptop/Notebook PC/Tablet PC section) using Boot Camp® or Virtual Machine
Intel® Core™ 7 processor or higher recommended
8 GB or higher recommended
1 GB free hard disk space
USB port, multiple ports in the PC when using multiple adapters
AirCheck G3/EtherScope nXG/CyberScope with AirMapper™ (recommended) or AirMagnet-supported wireless network adapter(s)
A site map in a format supported by AirMagnet Survey (supported formats are: .bmp, .dib, .dwf, .dwg, .dxf, .emf, .gif, vsd, .jpg, .wmf, .vdx or .png)
Google Earth™ must be installed to export GPS data for outdoor surveys (Survey PRO only). Here is a list of GPS devices that have been approved for use with the AirMagnet Survey product.
Garmin eTrex LEGEND HCx
Garmin GPS18X USB
Microsoft GPS-500 SIRF III
Garmin GPSMap 60
DeLormeEarthmate GPS LT-20
DeLormeEarthmate GPS LT-40
Garmin eTrex
Garmin eTrex Legend
Garmin GPS 18 Deluxe
Magellan eXplorist 500
Pharos iGPS-180
US GlobalSat BU-353-S4 (Recommended)
Supported Adapters
AirMagnet Survey supports two categories of wireless adapters:
- Recommended Adapters: These adapters have been comprehensively tested by NetAlly and are recommended for use with AirMagnet Survey PRO. Click here to learn more.
- Other Adapters: These adapters can be used with AirMagnet Survey PRO but have not been tested by NetAlly. Drivers have not been customized, will provide limited features, and could provide inaccurate data.
Note: NetAlly is not responsible for the quality of the test results collected using WiFi adapters not included on the Recommended category. Authentication methods supported by various adapters could be limited by their own capabilities, Windows wireless zero configurations and various other reasons.
