Picture this: You’re staring at a rack full of colorful ethernet cable types, each one promising blazing speeds and rock-solid connectivity. The sales rep is throwing around terms like “Cat8 ultra-performance” while your budget screams.
Sound familiar?
Cable selection shouldn’t require an engineering degree, but somehow it often feels that way. Most networks fail not because someone chose Cat6 over Cat8, but because they skipped proper testing or ignored basic installation practices.
We’ll show you exactly which cables work for real-world applications – and how to test them so they actually deliver their promised performance.
Understanding Cable Types vs Categories
Let’s clear up some confusion right off the bat. Cable types and cable categories aren’t the same thing.
Cable types refer to the physical transmission medium. Think of them as the fundamental building blocks of your network connection. The three main cable types are coaxial, twisted pair, and fiber optic Ethernet cables. Cable categories are performance specifications that apply specifically to twisted pair cables. Think of Cat5e, Cat6, Cat6a, Cat7, and Cat8.
It’s like the difference between “vehicles” (types) and “sedan vs SUV” (categories within the car type).
Overview of Ethernet Cable Types
Before we dive into Cat5e vs Cat6 debates, you need to understand the three main cable types used in Ethernet networks:
Coaxial Ethernet Cables
Remember those thick yellow cables from the ’80s? That’s 10Base5 “Thicknet” coaxial cable. 10Base2 “Thinnet” was the thinner cousin. Both are essentially museum pieces now, but you might still find them lurking in really old installations.
Coaxial was great for its time. It had a simple concept: a single conductor surrounded by shielding. But it also had major limitations: shared collision domains, difficult troubleshooting, and maximum speeds that make dial-up look fast.
Twisted Pair Ethernet Cables
This is your bread and butter for modern networks. Four pairs of twisted copper wires in a plastic jacket. The twisting reduces electromagnetic interference – brilliant engineering from Alexander Graham Bell back in 1881 that still works today.
Twisted pair Ethernet cables come in two flavors:
- Unshielded (UTP) – Standard for most office environments
- Shielded (STP) – Extra protection against interference, essential in electrically noisy environments
H3: Fiber Optic Ethernet Cables
When copper hits its limits – because of distance, speed, or interference – fiber takes over. Light pulses through glass strands instead of electrical signals through copper.

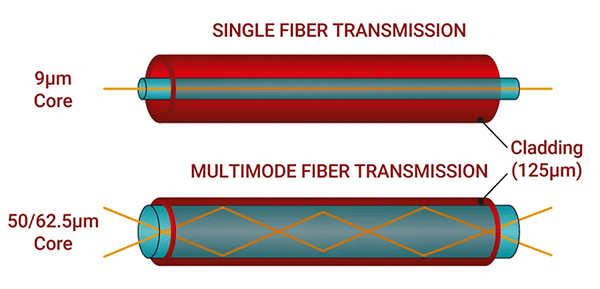

Single Mode Fiber uses one light path and reaches incredible distances. This is perfect for connecting buildings or campuses. Multimode Fiber uses multiple light paths, costs less than single mode, but works over shorter distances. Great for data center backbone connections.
Ethernet Cable Categories Explained
Since twisted pair dominates modern networks, let’s break down what those category numbers actually mean:
Cat5e (Category 5 Enhanced)
- Speed: 1 Gbps
- Bandwidth: 100 MHz
- Distance: 100 meters
Cat5e has been around since the late ’90s, but don’t let that fool you. Cat5e still handles most office tasks without breaking a sweat. If your users aren’t complaining about slow network performance and you’re not pushing multi-gig applications, Cat5e gets the job done for a fraction of the cost of newer categories.
Cat6 (Category 6)
- Speed: 10 Gbps up to 55 meters, 1 Gbps up to 100 meters
- Bandwidth: 250 MHz
- Distance: 100 meters (1G), 55 meters (10G)
Cat6 adds a plastic spline separator between wire pairs to reduce crosstalk. Perfect for WiFi 6 access points that need multi-gig backhaul connections. Just remember that 10G speed drops off after 55 meters, which becomes crucial for longer cable runs.
Cat6a (Augmented Category 6)
- Speed: 10 Gbps
- Bandwidth: 500 MHz
- Distance: 100 meters
The enterprise sweet spot. Cat6a delivers full 10 Gbps performance over the complete 100-meter distance. Thicker and more expensive than Cat6, but it won’t leave you hanging when you need consistent high-speed performance over longer distances.
Cat7 (Category 7)
- Speed: 10 Gbps
- Bandwidth: 600 MHz
- Only available shielded
Cat7 lives in standards limbo. ISO approved it, but TIA/EIA (the North American standards bodies) never blessed it. Some manufacturers developed proprietary connectors that aren’t compatible with standard RJ45 jacks. Unless you have very specific requirements, skip Cat7 and stick with Cat6a.
Cat8 (Category 8)
- Speed: 40 Gbps
- Bandwidth: 2 GHz
- Distance: 30 meters
Cat8 is the data center speed demon. Built for 25G and 40G switch-to-switch connections where every millisecond counts. The cables are thick, expensive, and an overkill for typical enterprise deployments.
Pro Tip:
For enterprise WiFi deployments, Cat6a is your best friend. Modern WiFi 7 access points can push 2.5G or even 5G traffic back to your switch. Cat5e becomes the bottleneck, and Cat6’s distance limitations might bite you on longer runs. Cat6a gives you full 10G capability over 100 meters, providing plenty of headroom for current and future WiFi standards.
Cable Performance and Speed Capabilities
Cable specifications tell only part of the story. Real-world performance depends on installation quality, environmental conditions, and how well your equipment plays together.
For Enterprise Applications:
- WiFi Access Points: Cat6a for multi-gig backhaul, future-proofing for WiFi 7
- Switch Interconnects: Cat6a for 10G connections, Cat8 for 25G/40G in data centers
- Server Connections: Fiber for backbone, Cat6a for 10G server NICs
- Workstation Connections: Cat5e for basic office work, Cat6 for power users
Distance vs Performance Reality Check
Those maximum distance specs aren’t suggestions – they’re hard limits. A 105-meter Cat6 cable might link up, but you’ll get unpredictable performance. Network testing tools can identify these issues before they impact user experience.
Gaming Applications
Cat6 or Cat6a works great for gaming setups. The difference between Cat6 and Cat8 won’t turn you into a gaming god. Your internet connection speed and game server latency matter way more than cable category.
Pro Tip:
Don’t just chase maximum speeds – pay attention to your actual network bottlenecks. NetAlly’s Path Analysis feature in the EtherScope nXG can trace your connection from client to server, showing you exactly where performance drops off. You might discover that an expensive Cat8 cable isn’t fixing your real problem.
Choosing the Right Cable for Your Application
Enterprise Deployments:
Cat6a hits the sweet spot for most business networks. It supports current 10G equipment and leaves room for growth. The extra cost over Cat6 pays for itself when you don’t have to recable in three years.
Home Networks:
Cat5e handles typical home internet connections just fine. Even gigabit fiber connections won’t max out Cat5e capabilities. Spend your money on a better router instead.
Data Centers:
For data centers, use fiber for backbone connections and Cat6a or Cat8 for server connections depending on port speeds. The decision often comes down to equipment port density and power consumption.
Industrial Environments:
In industrial environments, shielded cables become essential around heavy machinery, motors, and electrical interference. The extra cost of the shielded twisted pair prevents mysterious connectivity issues that are a nightmare to troubleshoot.
Cable Compatibility and Performance
Good news – all Ethernet cable categories use standard RJ45 connectors, so newer cables work perfectly with older equipment from a physical connection standpoint.
That shiny Cat8 cable plugs right into your gigabit router without issues. But you’ll only get gigabit speeds because that’s what your router supports. The cable doesn’t magically boost your equipment’s capabilities beyond its design limits.
Cat7 compatibility gets tricky because of marketing confusion. The official Cat7 specification requires proprietary connectors (GG45 or TERA), but most cables labeled as “Cat7” in stores actually use standard RJ45 connectors. These RJ45-terminated cables perform somewhere between Cat6a and true Cat7 specs, but manufacturers market them as Cat7 anyway. It’s misleading, but that’s why you see “Cat7” cables that plug into regular Ethernet ports.
In mixed environments, your network runs at the speed of the slowest component. A Cat8 cable connected to Cat5e equipment still runs at Cat5e speeds. The weakest link in your chain determines overall performance.
Cable Length Limitations and Signal Quality
Cable length directly impacts network performance as signals weaken over distance. The magic number is 100 meters (328 feet) for twisted pair cables. Beyond that distance, signal strength drops below usable levels, causing packet loss, retransmissions, and connection failures.
Higher category cables don’t extend distance – they improve signal quality within that 100-meter limit. Cat7 and Cat6 both hit the same distance wall, though higher categories maintain better performance as you approach that limit.
Your internet speed isn’t determined by cable category if your current cable isn’t the bottleneck. Upgrading from Cat5e to Cat7 won’t boost gigabit internet – your service plan sets that limit.
Signal degradation follows basic physics. Higher frequency signals actually attenuate faster, which is why Cat6a and Cat8 need better construction to maintain performance over the full distance.
Cable Testing and Validation Methods
Professional cable testing catches problems that visual inspection misses. With NetAlly tools, you can save 60% of the time spent resolving network issues by identifying cable problems before they impact users.
Unterminated Testing uses Time Domain Reflectometry (TDR) – sending electrical pulses down the cable and measuring how long they take to bounce back. This reveals:
- Cable length and distance to faults
- Opens (broken wires)
- Shorts between conductors
- Split pairs (incorrect wiring standards)

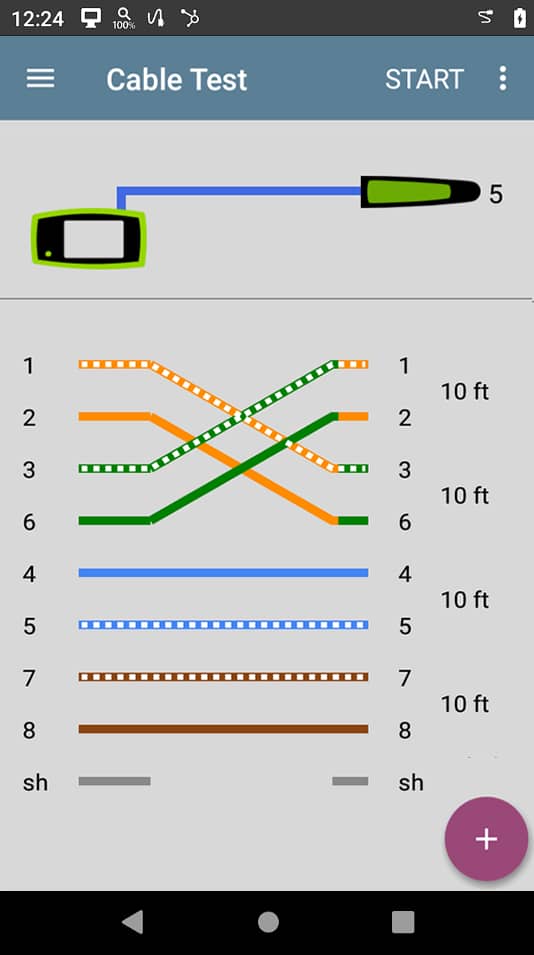

Terminated Testing requires wire view adapters at the far end but provides deeper validation:
- End-to-end connectivity for every wire pair
- Correct pin assignments (catching miswired connections)
- Cable identification for documentation purposes
Performance Validation with LANBERT Media Qualification goes beyond basic connectivity by transmitting real network traffic at line rates. This tests whether your cable plant can handle the data speeds you’re paying for. It’s much more reliable than just checking electrical parameters against standards.
Troubleshooting Common Cable Issues
When your network starts acting up, knowing how to diagnose cable performance problems saves hours of headaches.
Split Pairs create one of the most frustrating problems. Your connectivity test passes, but performance is terrible. This happens when installers don’t follow T568A or T568B wiring standards properly, causing wire pairs to get “split” across different physical twisted pairs. The result? Crosstalk that destroys performance even though the cable technically “works.”
Downshifting occurs when your 10G-capable equipment stubbornly links at slower speeds due to marginal cable quality. The connection works, just not at the speed you’re paying for. Signal-to-noise ratio measurements help identify these problem cables before they impact users.
Length Problems sneak up on you because a 110-meter cable run might seem fine during initial testing. But it exceeds the 100-meter specification, causing performance to degrade gradually over time. These intermittent issues are particularly painful to diagnose because they don’t fail consistently.
Poor Connections at patch panels or jacks create the most unpredictable performance problems. A slightly loose connection might work fine under light load but fail when traffic increases. Cable testing with proper termination reveals these hidden troublemakers immediately.
Professional testing tools reduce problem escalations by 30% because they identify root causes instead of chasing symptoms. When you can prove the cable plant meets specifications, troubleshooting focuses on the real villains instead of endless cable swapping.
Advanced Cable Technologies and Future Considerations
Cat9 doesn’t officially exist yet, but the networking industry’s appetite for speed suggests it’s inevitable. If Cat9 emerges, it will likely push beyond Cat8’s 40 Gbps while staying within twisted pair’s 100-meter limit.
The real challenge isn’t speed – it’s physics. Higher frequencies mean more signal loss, requiring even better shielding and construction. Meanwhile, Power over Ethernet demands keep growing, data center speeds climb relentlessly, and edge computing needs reliable connections everywhere.
Market trends show fiber gaining ground for backbone connections while twisted pair evolves for end devices. The smart money isn’t on revolutionary changes but evolutionary improvements: better shielding, enhanced power delivery, and perhaps new connectors that maintain backward compatibility.
So, Which Cable Should You Choose?
Ethernet cable selection doesn’t have to be rocket science. Understand your application requirements, pick the right category for your performance needs, and test everything properly.
Cat5e still delivers solid performance for everyday connectivity tasks. Cat6a strikes the right balance for enterprise networks that need room to grow. Cat8 finds its home in data centers where massive bandwidth justifies the cost. Fiber steps in when copper simply can’t go the distance.
But remember – the best cable in the world won’t help if it’s installed poorly or never tested. That’s where professional testing equipment proves its worth by catching problems before they impact your users.
