Ever had your wireless network choke when 30 executives connect simultaneously during a board meeting? Or watched clients stubbornly cling to a congested 2.4 GHz band instead of switching to your pristine 6 GHz spectrum?
These frustrations stem from a fundamental Wi-Fi limitation: devices could only connect to one frequency band at a time. Even with 2.4 GHz band, 5 GHz band, and 6 GHz band spectrum available, clients had to pick just one.
Multi-Link Operation (MLO) changes everything. This core feature included in the IEEE 802.11be (Wi-Fi 7) standard allows a single device to simultaneously send and receive data across different frequency bands and channels to a single access point. Instead of choosing between bands, devices can now use them together through simultaneous connections.
This fundamental shift from traditional single-link Wi-Fi delivers higher throughput, lower latency, and improved reliability. For network engineers, MLO solves connection problems we’ve battled for decades.
Table of Contents
- How Does Multi-Link Operation Boost Your Network’s Speed and Reliability?
- What Are the Different Types of Multi-Link Operation Modes?
- Which Applications Benefit Most from Multi-Link Operation?
- What Do You Need to Implement Multi-Link Operation?
- How Do You Validate Multi-Link Operation Performance in Real Networks?
- Ready to Implement and Optimize Multi-Link Operation?
How Does Multi-Link Operation Boost Your Network’s Speed and Reliability?
MLO delivers multiple benefits for network performance:
- Higher Throughput Through Link Aggregation – MLO combines bandwidth from multiple bands rather than forcing devices to use just one. Testing shows this can potentially double throughput for compatible clients, boosting performance.
- Lower Latency Via Link Selection – MLO automatically routes time-sensitive packets like VoIP over the fastest path. This happens instantly without dropping connections.
- Improved Reliability Through Link Redundancy – If one link experiences interference, traffic automatically shifts to other available links without dropping the connection. This keeps devices connected even when RF conditions change suddenly.
- Connection Stability in Congested Networks – MLO distributes traffic across multiple bands, reducing interference impact on any single connection. This maintains better performance even when individual bands experience heavy usage.
MLO vs. Traditional Single-Link Operation
| Feature | Single Link Operation (all legacy versions of Wi-Fi | Multi-Link Operation (Wi-Fi 7) |
| Bands Use Simultaneously | 1 | 2 (2.4/5/6 GHz) |
| Maximum Throughput | Limited by one band | Aggregated across bands |
| Latency | Higher, prone to congestion | Lower, less congestion |
| Reliability | Susceptible to interference | Stable, dynamic switching |
| Suitability for Dense Environments | Limited | Excellent |
Pro Tip:
While MLO helps mitigate interference, proper channel planning remains essential.
Co-channel interference is still a concern, especially in the 2.4 GHz band.
What Are the Different Types of Multi-Link Operation Modes?
MLO operates in several modes designed for different device capabilities and use cases.
Multi-Link Single Radio (MLSR)
MLSR uses one radio that switches between multiple bands.
Benefits:
- Dynamic band switching with one radio
- Lower power consumption
- AP Support is optional
Enhanced Multi-Link Single Radio (eMLSR)
eMLSR uses one radio that switches between multiple bands but can listen on multiple bands while transmitting on one.
Benefits:
- Dynamic band switching with one radio
- Lower power consumption
- Compatible with most client devices
- Supported by all APs
Multi-Link Multi-Radio (MLMR)
MLMR uses multiple dedicated radios for simultaneous operation across bands.
Benefits:
- True parallel transmission
- High throughput
- Higher power consumption
- AP Support is optional (not commonly supported)

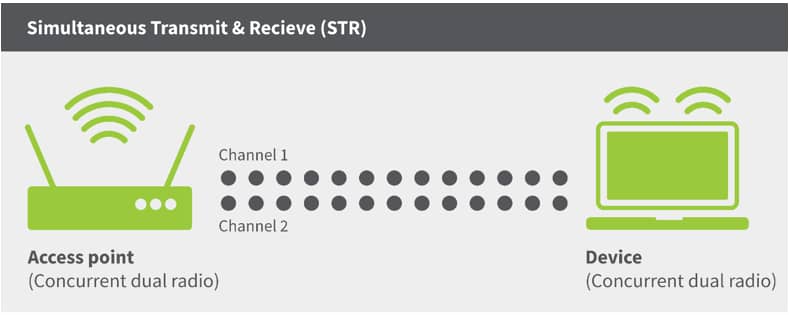

STR (Simultaneous Transmit and Receive) Mode
STR allows transmitting on one band while receiving on another simultaneously.
Benefits:
- Lower latency
- Most noticeable gains in throughput and latency
- Supported by all APs
- Higher power consumption
When to Use Each Mode
- MLSR: Most simple version of MLO, good for mobile devices with a single radio and only one antenna
- eMLSR: Best for mobile devices, IoT endpoints, and battery-powered equipment that need efficiency
- MLMR: Great for devices that require higher throughput, but works best on low utilization and interference environments
- STR: Ideal for access points, high-performance laptops, and fixed equipment that prioritize speed and low latency
ML Operation Modes
| Mode Name | Simultaneous Use | Frequency Flexibility | Typical Hardware Requirement | Key Benefit |
| STR | Yes | High | Multi-radio | Maximum throughput, low latency |
| eMLSR | Yes (dynamic) | Very High | Single radio | Efficient setup, dynamic switching |
| MLSR | Yes (dynamic) | High | Single radio | Dynamic switching |
| MLMR | Yes (static) | Low | Multi-radio | Simplicity, stable operation |
Pro Tip:
Most client devices will use eMLSR mode due to power and cost constraints. Plan your network to optimize for eMLSR performance while supporting STR capabilities in access points.
Which Applications Benefit Most from Multi-Link Operation?
MLO delivers the biggest performance improvements for applications requiring high bandwidth, low latency, or both:
VR/AR Applications and Wireless VR Headsets
VR/AR gaming needs massive bandwidth and instant response times. MLO sends control signals over the fastest connection while streaming visuals through high-capacity links, preventing the motion sickness caused by delayed visual feedback.
Cloud Gaming and Online Gaming
Cloud gaming depends on consistent, low-latency connections for smooth gameplay. MLO sends gaming data through the clearest channels while background downloads use separate links, stopping lag spikes at crucial moments.
8K Video Streaming
8K video streaming requires more bandwidth than single connections can reliably provide. MLO combines capacity from multiple bands, delivering smooth playback without constant buffering interruptions.
Video Conferencing and Virtual Collaborations
Video conferencing requires stable connections for clear communication. MLO’s backup links prevent interference from disrupting calls by automatically switching traffic to cleaner frequencies when needed.
Emerging Metaverse Applications
Metaverse platforms need both VR/AR performance and support for multiple users interacting simultaneously. MLO delivers the combined bandwidth and low latency routing these complex environments demand.
Real-Time Latency-Sensitive Applications
Industrial control systems, financial trading platforms, and medical monitoring equipment need instant data transmission with reliable backup options. MLO routes critical information through optimal paths while maintaining redundant connections for safety.
Application Bandwidth and Latency Requirements
| Application | Bandwidth Required | Latency Class | MLO Benefit |
| VR/AR Headsets | 25+ Mbps | Real-time (L2) | High bandwidth + ultra-low latency |
| Gaming | >4 Mbps | Real-time (L2) | Consistent low latency |
| 8K Video Streaming | 100 Mbps | Real-time (L2) | High bandwidth aggregation |
| Video Conferencing | 1 Mbps | Real-time (L2) | Connection reliability |
| VoIP | <0.5 Mbps | Real-time (L2) | Ultra-reliable, low latency |
| Industrial Control | <0.5 Mbps | Non-real time (L1) | Ultra-reliable connections |
Test your network’s readiness for these applications and validate that your infrastructure can support next-generation wireless demands.
What Do You Need to Implement Multi-Link Operation?
Implementing MLO requires specific hardware and careful planning across your network infrastructure.
Hardware Requirements
MLO needs hardware specifically designed for Wi-Fi 7 (802.11be). Unlike previous Wi-Fi improvements, MLO requires fundamental architectural changes to both access points and client devices rather than simple firmware updates.
Compatible Devices and Access Points
Both access points and client devices must support Wi-Fi 7 and MLO.
Firmware Version Requirements
All devices need current firmware to properly negotiate MLO connections. WLAN controllers also require software updates to support MLO configuration and management features.
Network Configuration Considerations
Key planning factors include:
- Spectrum availability: Some versions of MLO work best with clean spectrum across multiple bands (2.4/5/6 GHz)
- Power requirements: Wi-Fi 7 APs may need PoE+ or PoE++ due to multiple active radios
- Mixed environments: Plan for both MLO-capable and legacy clients during transition periods
Setup Process Overview
Implementation involves updating infrastructure components, planning channel allocation across bands, configuring SSIDs for different client types, and testing with actual Wi-Fi 7 devices before full deployment.
Summary Table: MLO Implementation Requirements
| Requirement | Details |
| Router/Access Point | Must support Wi-Fi 7 and MLO, multiple radios for 2.4/5/6 GHz bands |
| Client Device | Must support Wi-Fi 7 and MLO |
| Firmware/Software | Latest updates required on both router and client |
| Operating System | Windows 11 24H2+ for PCs, latest OS for other devices |
| Bands Required | At least two of 2.4 GHz, 5 GHz, or 6 GHz (6 GHz not strictly required) |
Pro Tip:
Start with a phased deployment in high-value areas like conference rooms. This validates MLO benefits in your environment before wider rollout.
How Do You Validate Multi-Link Operation Performance in Real Networks?
Deploying MLO is just the first step. You need to verify it’s delivering the promised benefits. Professional network testing tools help validate performance and troubleshoot issues.
Key Performance Metrics for MLO Networks
MLO validation focuses on measuring core benefits:
- Throughput testing: Compare MLO vs single-link performance using iPerf tests
- Latency validation: Measure round-trip time and jitter improvements under load
- Performance bottlenecks: Identify interference or configuration issues limiting MLO gains
Using NetAlly Tools for MLO Validation
NetAlly’s professional testing tools provide MLO performance validation capabilities:
- Performance testing: EtherScope nXG and AirCheck G3 Pro measure throughput, latency, and packet loss
- iPerf testing: Test Accessory provides dedicated iPerf server for accurate throughput measurements

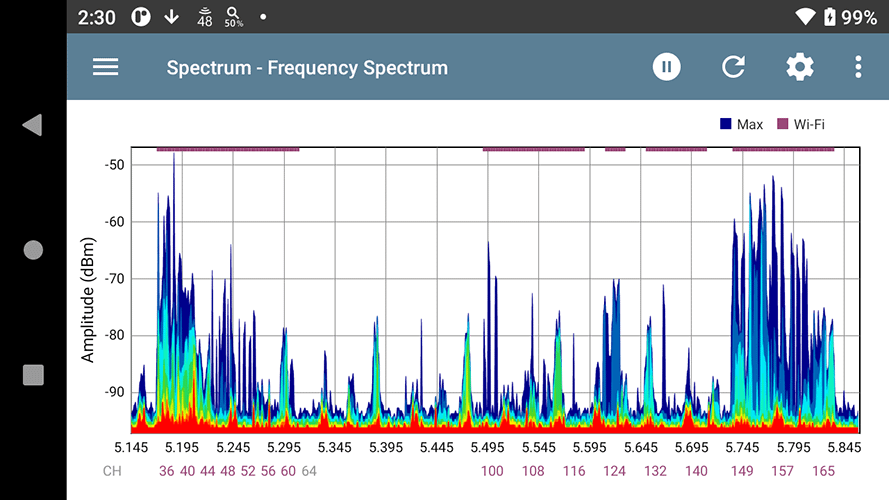

- Spectrum analysis: NXT-2000 adapter visualizes spectrum usage across multiple bands
Professional Testing Requirements vs Consumer Tools
Professional validation requires tools that can measure line-rate performance, isolate MLO-specific gains, and provide reliable baseline comparisons. Consumer tools typically lack the precision needed for enterprise deployment validation.
Pro Tip:
Conduct A/B testing by temporarily disabling MLO on specific APs. This controlled approach provides clear evidence of MLO’s impact on your environment.
Ready to Implement and Optimize Multi-Link Operation?
MLO marks a turning point in wireless networking. After years of managing band steering complexities and client roaming issues, network engineers finally have a technology that addresses these core challenges at the protocol level.
Key implementation considerations:
- MLO enables true multi-band connectivity for compatible Wi-Fi 7 devices
- EMLSR and STR modes serve different hardware capabilities and performance needs
- Real-time applications see the biggest performance improvements
- Successful deployment requires updated infrastructure and careful planning
Validating MLO performance through professional testing tools ensures your investment delivers measurable improvements. From conference rooms to industrial facilities, MLO’s bandwidth aggregation and connection reliability capabilities can reshape how wireless networks handle demanding applications.
Get started with NetAlly’s MLO testing solutions to validate your Wi-Fi 7 network’s performance:
- AirCheck G3 Pro – Wireless Tester for validating Wi-Fi performance
- EtherScope nXG – All-in-one network analyzer for comprehensive testing
- Test Accessory – Pocket-sized iPerf server for throughput measurements
