Introduction
Have you noticed that your internet speed sometimes feels lightning-fast and other times frustratingly slow? The key to understanding this inconsistency is your receive link speed. It’s a critical factor in your network’s performance, and in this blog post, we’ll explore what it is, how it impacts your network, and how to ensure it’s always optimized. Consider this your personal guide to understanding the language of your network, without needing a computer science degree.
What is Receive Link Speed?
Let’s define receive link speed. It’s the rate at which your device receives data from a network. Visualize it as a highway for data: the faster the speed, the more information can travel to you. It’s usually measured in bits per second (bps), kilobits per second (kbps), megabits per second (Mbps), or gigabits per second (Gbps).
It’s important to note the difference between receive and transmit speeds. Receive speed is how fast you get data, while transmit speed is how fast you send data. They’re both important, but they don’t always match up.
Also, there’s a difference between theoretical and actual link speeds. The theoretical speed is the maximum speed your network hardware should be capable of under ideal conditions. The actual speed, however, is what you experience in practice, and it can be lower due to various factors like interference and network congestion. It’s like the speed limit on a highway versus the actual speed you drive during rush hour.
Network Speed Concepts
It’s easy to get confused by all the different terms when talking about network speeds. Let’s clarify some important concepts:
- Data Rate (or PHY Rate): This is the raw speed at which data is transferred over a communication channel, including headers, control, and management frames. It’s like the maximum potential speed of a car but doesn’t account for traffic or road conditions.

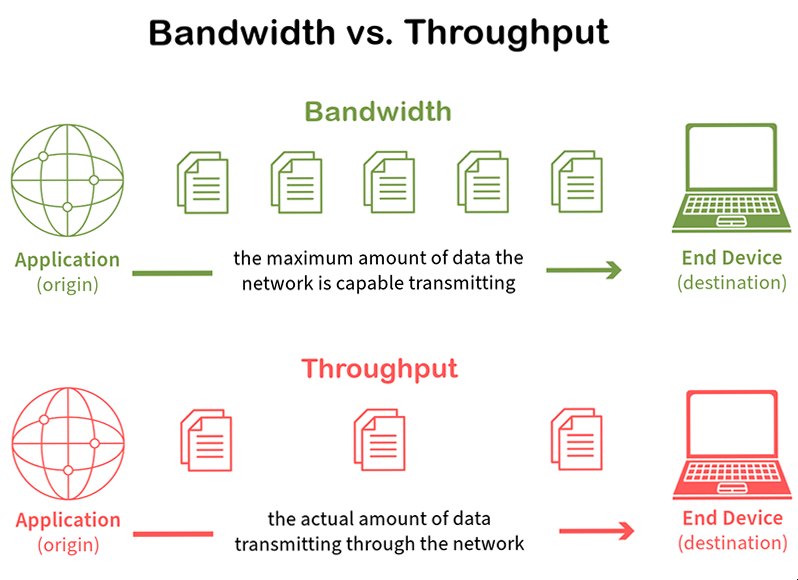

- Bandwidth: This refers to the maximum amount of data that a communication channel can handle, like the maximum speed your car could achieve under current conditions. However, it doesn’t mean that the actual amount of data being transferred is the same.
- Throughput: This is the actual amount of data that travels over a communication channel. It’s what we truly experience when using our network and is usually lower than the data rate. It considers the effects of data encoding, modulation, encryption, and interference.
When it comes to link speed, we are specifically talking about the data rate, or PHY rate, and the rate at which data is received from a network. The actual amount of data received is referred to as throughput, which is limited by the link speed.
Factors Affecting Link Speed
Several factors can impact your receive link speed.
| Physical Factors |
|---|
| Distance from the Access Point (AP): Just like sound fades the further you are from the source, WiFi signal strength decreases as you move away from the AP. |
| Network Cable Quality: Using old or low-quality network cables can significantly limit your link speed. It’s like driving a sports car on a dirt road – it won’t perform as well as it could. |
| Physical Obstacles: Walls, metal objects, and even certain types of glass can interfere with WiFi signals |
| Technical Factors |
|---|
| Network Interface Capabilities: Your device’s network card or adapter needs to be able to support the desired link speed. |
| AP Specifications: The capabilities of your AP have a direct impact on link speed. |
| Channel Width Configurations: Wider channels can offer faster speeds, but they are also more prone to interference. |
| Network Congestion: If too many devices are using the same network, link speeds will suffer. |

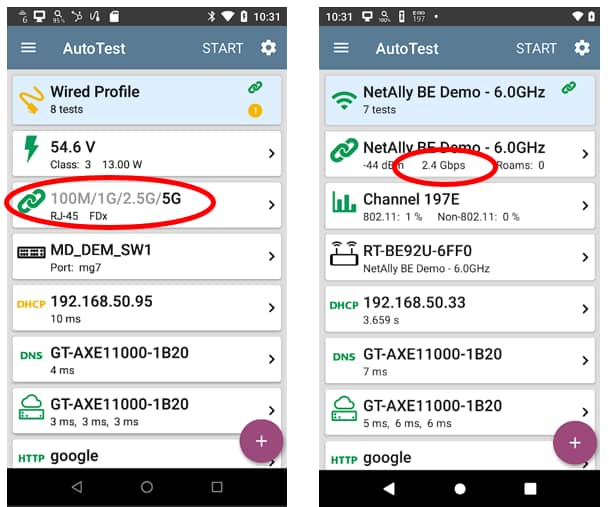

Measuring Link Speed
How do you check your receive link speed? It’s simpler than you might think, especially when using NetAlly tools. Here’s how:
- NetAlly Tools: Use tools like the EtherScope® nXG, AirCheck® G3, or LinkRunner® 10G. They can show you the link speed for both wired or wireless connections. For example, the LinkRunner 10G can show wired link speed values of up to 10 Gbps, while the AirCheck G3 can show the wireless link speed values supported by your Access Points.
- NetAlly AllyWare™ Apps: Use the AllyWare apps, guided by the How to do a Wired AutoTest and How to do a WiFi AutoTest tutorials. These apps perform active tests to show you your link speed on both wired and wireless networks, plus provide access to information not available on mobile devices.
Optimizing Link Speed
Having a slow link speed is like driving a car with the parking brake on. Here are some ways to release that brake:
- Hardware solutions: Consider upgrading your network cards, validating cable connectors and splices, or upgrading your APs and switches.
- Software solutions: Ensure your network drivers are up to date, optimize your network settings, and configure your channels effectively. It’s like giving your network a regular tune-up.
Troubleshooting Link Speed Issues
If you’re still experiencing slow link speeds, here are some typical problems and how to solve them:
- Low Signal Strength: If the signal is weak, try moving closer to your AP or adding another AP to expand your network.
- Outdated Hardware: Check the capabilities of your devices. Older devices might be limiting your link speed.

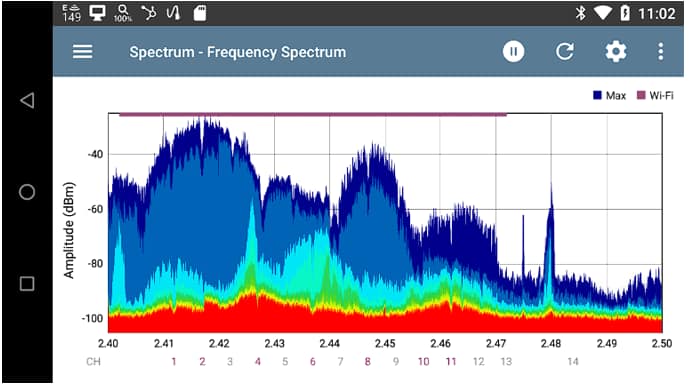

- Interference: Use a Wi-Fi network or spectrum analysis tool to identify sources of interference and mitigate them.
Enterprise Considerations
In enterprise environments, managing link speed is crucial for optimal network performance. This often means having dedicated tools, trained network engineers, and specific considerations:
- Use professional-grade tools like the ones mentioned above for accurate measurements and diagnostics.
- Regularly monitor your link speeds to ensure everything runs smoothly.
Conclusion
Understanding receive link speed is crucial for maintaining a healthy, efficient network. It’s the foundation for smooth streaming, fast downloads, and reliable connections. Just like having the right map helps you navigate a city, understanding your link speed helps you navigate the digital world. By using NetAlly’s tools and following these tips, you can ensure your network is always operating at its best.
To take your network to the next level, explore professional tools like NetAlly’s EtherScope nXG, AirCheck G3, and LinkRunner 10G. They’re powerful tools for network troubleshooting.
