Introduction
Ever feel like your WiFi is speaking a different language? You’re not alone. A WiFi channel scan is the key to understanding why your network runs slower than a turtle in peanut butter. If you’ve ever wondered why your video calls are pixelated or your downloads take forever, you’re about to learn how a simple network channel scan can turn things around.
In this guide, we’ll explore what WiFi channel scanning is, why it’s crucial, and how to choose the best channels for optimal performance. We’ll also cover common WiFi interference problems and how to troubleshoot them like a pro. So, buckle up, and let’s get started!
What is a WiFi Channel
So, what exactly is a WiFi channel? Think of them like lanes on a highway. Each lane (or channel) allows data to flow. WiFi operates on different frequency bands: 2.4 GHz, 5 GHz, and the newer 6 GHz. Each band divides into multiple channels.

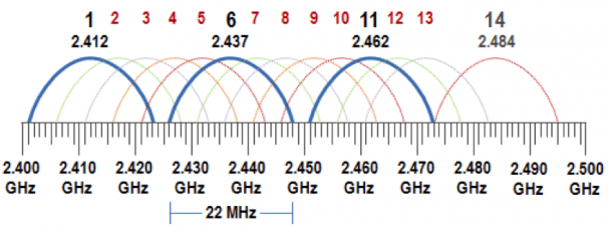

The catch? Channels could overlap. Imagine highway lanes not clearly marked, causing cars to drift. This overlap leads to interference and slower speeds.
WiFi Channel Interference
Why should you care about channel selection? Because it directly impacts your network’s performance. Interference turns your connection into a digital traffic jam.
There are three types of interference:

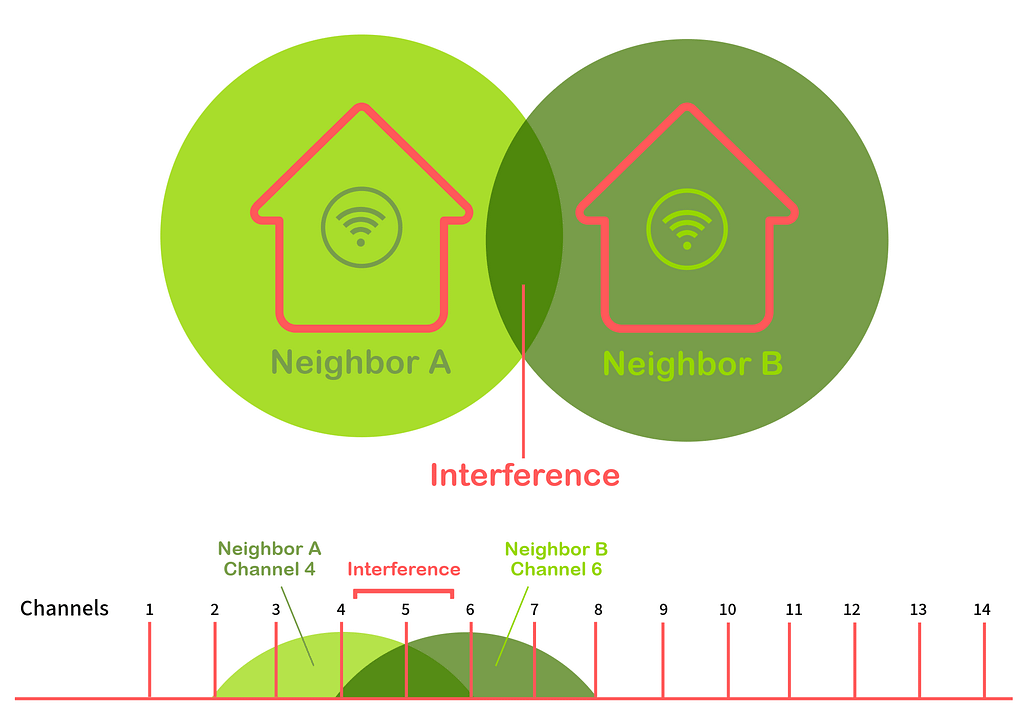

- Co-Channel Interference (CCI): Multiple access points (APs) using the same channel cause devices to compete for airtime.
- Adjacent Channel Interference (ACI): Overlapping nearby channels cause signals to interfere.
- Non-WiFi Interference: Microwaves, Bluetooth, and other devices interfere with WiFi signals.
Poor channel selection leads to dropped connections and slow throughput speeds. Remember the difference between data rate and throughput? Throughput (actual data transfer) is often lower than data rate due to interference and overhead.
How to Perform a WiFi Channel Scan
Ready to take control? A WiFi channel scan is easier than you think. While some guides suggest different methods for each operating system, NetAlly’s Android-based tools offer a streamlined approach.
Here’s how:
- Choose Your Tool: NetAlly’s AirCheck® G3, EtherScope® nXG, and CyberScope® are excellent for a WiFi channel scan.
- Start Scanning: Launch the Wi-Fi app and start a channel scan to detect nearby WiFi networks and their channels.
- Analyze Results: Look for channels with the least congestion and interference.
NetAlly’s Android-based tools offer a user-friendly interface with advanced features like spectrum analysis and interference detection.

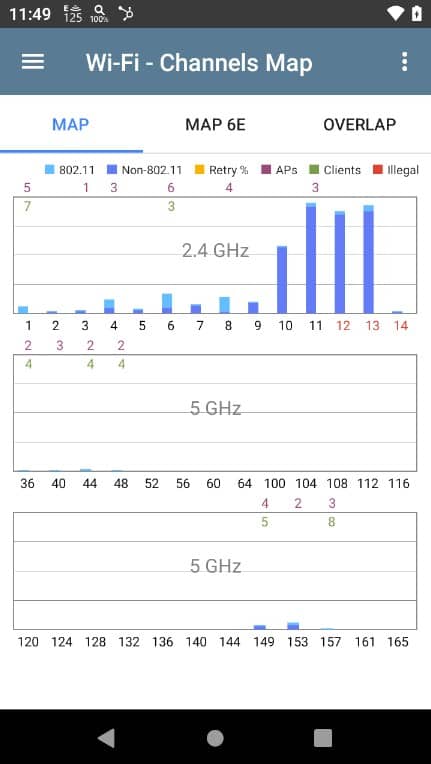

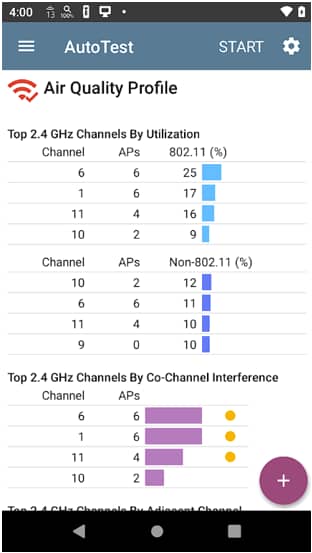

Interpreting Scan Results
So, you’ve run a WiFi channel scan – now what? Understanding the data is vital to optimizing your network.
- 802.11 Channel Utilization: This tells you how busy each channel is with WiFi traffic.
- Non-802.11 Channel Utilization: This tells you how busy each channel is with traffic generated by non-WiFi devices.
- Interference Levels: This shows how much interference is present on each channel. Lower is better.
A “good” channel has minimal co-channel or adjacent interference and isn’t crowded with WiFi or non-WiFi traffic.
Choosing the Optimal Channel
How do you choose the best channel?
- Identify Least Congested Channels: Look for the lowest utilization and interference.

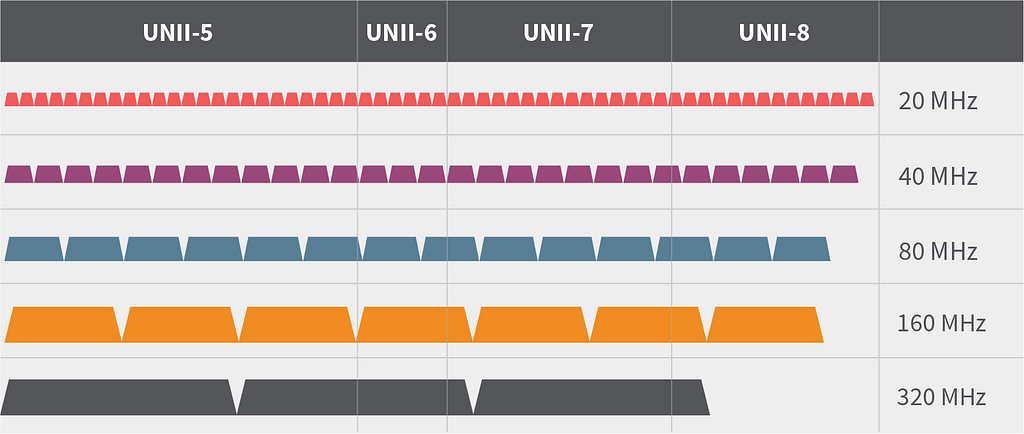

- Consider Channel Width: Wider channels (40 MHz, 80 MHz, 160 MHz, or 320 MHZ) offer faster speeds but are more susceptible to interference.
- Test and Adjust: Monitor performance after selecting a channel and adjust as needed.
Channel Selection Best Practices
- Use Non-Overlapping Channels: Stick to channels 1, 6, and 11 on the 2.4 GHz band to minimize interference.
- Prefer 5 GHz or 6 GHz: Use these bands for less congestion and faster speeds.
- Regularly Scan: Perform a network channel scan regularly since WiFi environments change on a regular basis.
Troubleshooting Common Issues
Even with planning, issues can arise. Here are some common problems and quick fixes:
- Intermittent Connectivity: If you experience this, non-WiFi or adjacent channel interference is a possible cause. Try switching channels or reducing channel width.
- Slow Speeds: This often stems from congestion or outdated devices. Consider upgrading hardware or using channels with low utilization.
Older client devices may not support the use of all the channels available in the 5 GHz band (or may not support the 6GHz band). Upgrading older devices to modern versions will give you more flexibility when deciding which Wi-Fi channels to use.
Conclusion
A WiFi channel scan is essential for optimizing wireless networking. By understanding what a WiFi channel is, identifying interference, and choosing the best settings, you improve your network performance. It’s the secret sauce for a smoother, faster online experience.
To enhance your WiFi troubleshooting, check out NetAlly’s professional tools like the AirCheck G3, AirMagnet Survey PRO, EtherScope nXG, and CyberScope. These tools empower you to diagnose and resolve even the most challenging WiFi issues.
